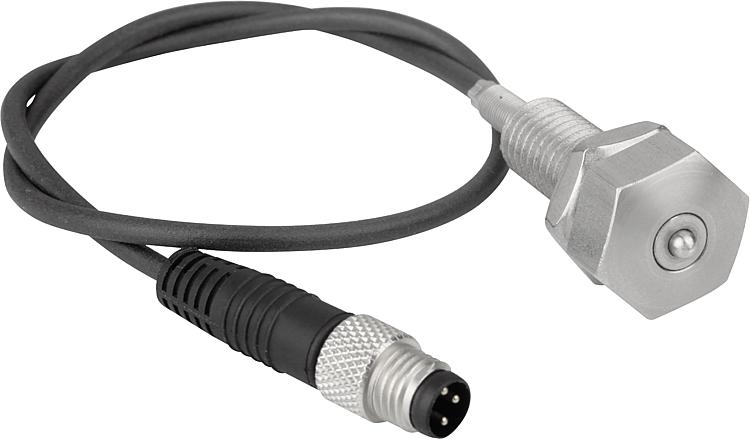

DescriptionProduct description:In addition to their mechanical function as a support element, adjustable stops with status sensor are used to detect whether a component is in contact with the stop or not.
The sensor recognises whether the plunger is retracted or extended and enables this status information to be electronically processed.
Material:Screw and plunger stainless steel 1.4301.
Guide bush stainless steel 1.4112.
Status sensor stainless steel.
Version:Screw, plunger, guide bush and status sensor bright.Note:The assured switch distance is achieved when the plunger is flush with the stop face of the guide bush. The sensor is supplied unassembled.
Installation recommendation: Glue in using e.g. Loctite 638.
Cable length: 0.3 metre.
Important: Screw the sensor in as far as it will go!Technical data:Inductive sensor:
Output relay: PNP normally open (NO)
Operating voltage: 10 - 30 V DC
Operating current: 100 mA
Switch gap: 0.8 mm
Switching frequency: 5000 Hz
Short-circuit proof: yes
Reverse polarity protected: yes
IP rating: IP 67
Connection type: 0.3 m cable, PUR, with plug
Temperature range: -25° C - +70°C
Approvals: CE, c-UL-us, UKCA, WEEEApplication:Stops with status sensors enable status-dependent process control. It can be ensured that a workpiece or moving component is in the desired location before further steps follow.Assembly:The status sensor must be screwed in as far as it will go.
It is recommended that this be glued in e.g. using Loctite 638.

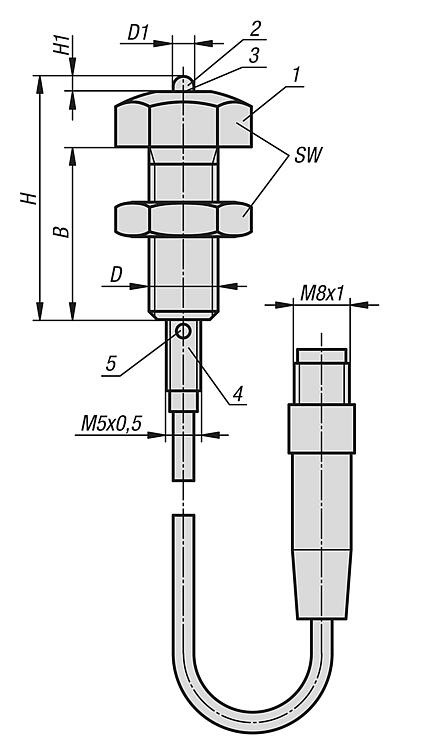

Accessory:Connectors M8x1, bush with screw lock, unshielded 80150.Safety:Stops with status sensors are not suitable for safeguarding persons.Drawing reference:1) Screw
2) Plunger
3) Guide bush
4) Status sensor
5) LED indicator
BN = Brown
BK = Black
BU = Blue
