02330
Support elements cylindrical
go back
Products
Product overview
Flexible standard component system
Self-aligning pads Fixture feet Clamp rests Support elements
Support elements
Support elements cylindrical
Item description/product images
Description
Material:
Carbon steel 1.1181.
Version:
Black oxidised.

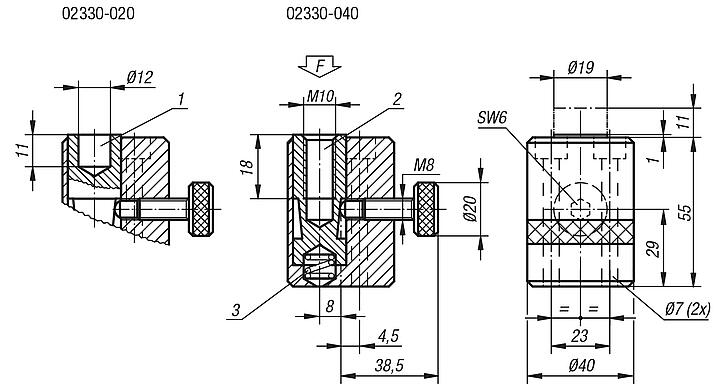

Drawing reference:
1) centring hole for 02210
2) tapped hole for: 02000-110, 02000-310, 02000-910, 02030-10, 02030-101
3) spring force 0.8 - 2.1 N
Special features:
Download
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
Datasheet 02330 Support elements cylindrical
234 kB

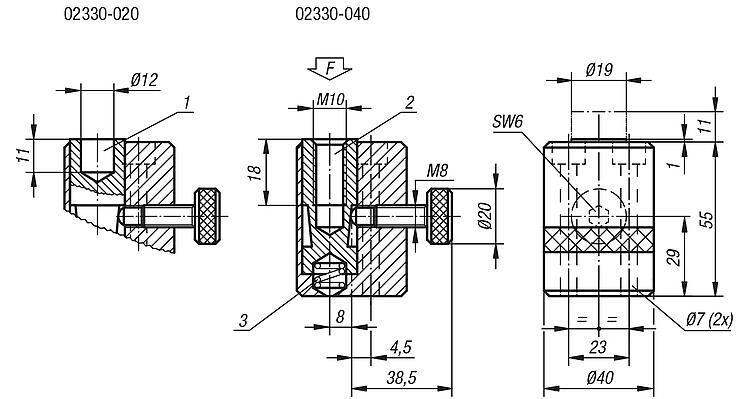

Drawings
Item selection/filter
Order No.
F
max. N
CAD
Acc.
Price
Order
02330-020
4000
on request
02330-040
4000
on request
