Round supports

02392

Round supports

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Support elements
        Round supports

Item description/product images

DescriptionMaterial:Carbon steel.Version:Tempered, black oxidised.
Contact faces ground.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02392 Round supports

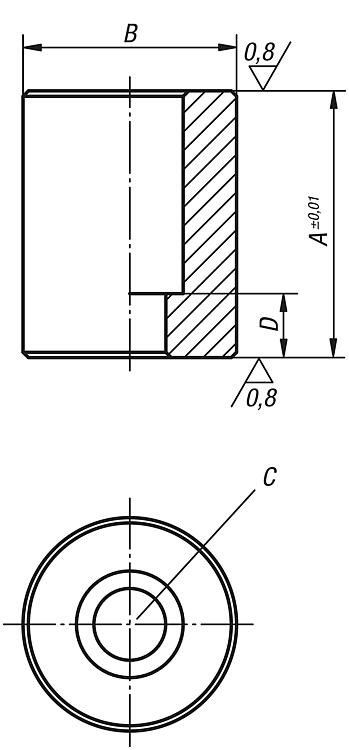

Drawings

Round supports

Item selection/filter

Order No.	A	B	C hole for DIN 912 cap screw	D	CAD	Acc.	Price	Order
02392-08016	16	25	M8	7			on request
02392-08020	20	25	M8	7			on request
02392-08025	25	25	M8	7			on request
02392-08032	32	25	M8	7			on request
02392-08040	40	25	M8	7			on request
02392-08050	50	25	M8	7			on request
02392-10020	20	32	M10	9			on request
02392-10025	25	32	M10	9			on request
02392-10032	32	32	M10	9			on request
02392-10040	40	32	M10	9			on request
02392-10050	50	32	M10	9			on request
02392-10063	63	32	M10	9			on request
02392-12020	20	40	M12	7			on request
02392-12025	25	40	M12	12			on request
02392-12032	32	40	M12	12			on request
02392-12040	40	40	M12	12			on request
02392-12050	50	40	M12	12			on request
02392-12063	63	40	M12	12			on request
02392-12080	80	40	M12	22			on request
02392-12100	100	40	M12	22			on request
02392-16025	25	50	M16	8			on request
02392-16032	32	50	M16	15			on request
02392-16040	40	50	M16	15			on request
02392-16050	50	50	M16	15			on request
02392-16063	63	50	M16	15			on request
02392-16080	80	50	M16	35			on request
02392-16100	100	50	M16	35			on request
02392-16125	125	50	M16	35			on request
