        Replacement screw for cam screws

Item description/product images

Show/filter all items

DescriptionMaterial:Cam screw carbon steel.Note:Replacement screw for fixture clamps and cam screws.Accessory:Machinable fixture clamps 04431.
Clamping cams 04431-05.
Unequal hexagon fixture clamps 04432.
Cam screws with knife edge washer 04434.
Cam screws with hexagon washer 04435.
Cam screws with hexagon washer for T-slots 04436.
Toe clamps for T-slots 04439.
Toe clamps with adjustable riser 04444.
Toe clamps compact 04521.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04521-10 Replacement screw for cam screws

213 kB

Drawings (total overview)

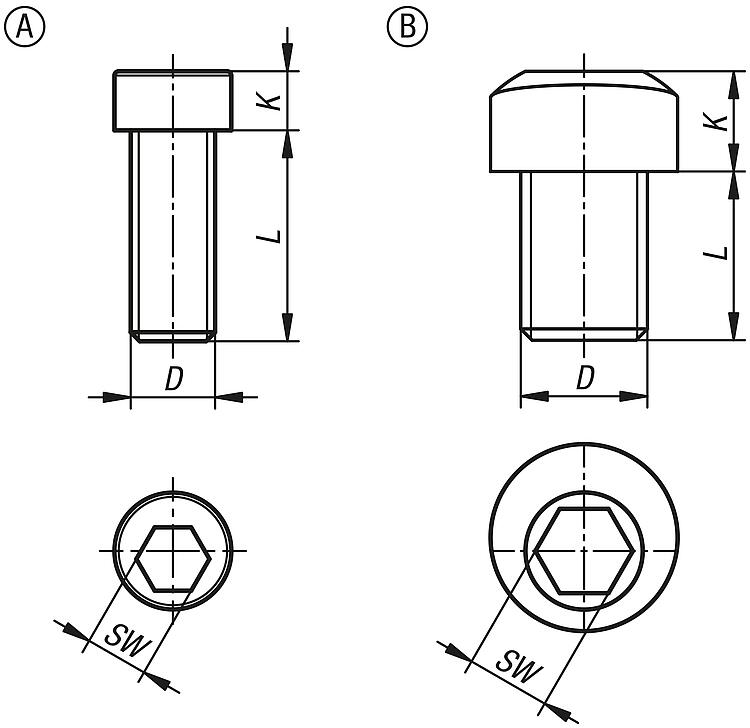

Replacement screw for cam screws, Form A

More information

Drawings

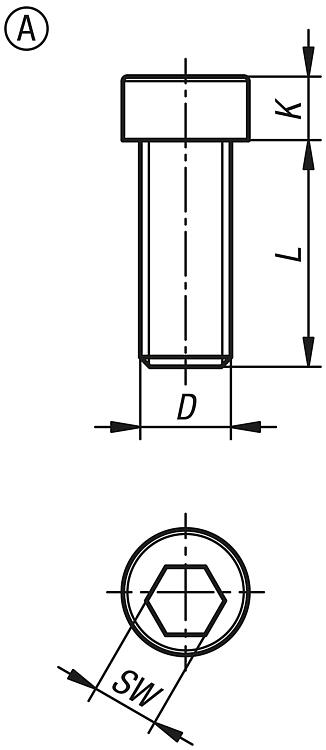

Replacement screw for cam screws, Form A

Item selection/filter

	A	M4 M6 M8 M10 M16	2,8 4 4,8 5,5 6,4 9,7	10 12 15 11,5 20 24 30	3 4 5 7 12				Reset
Order No.	Form	D	K	L	SW	CAD	Acc.	Price	Order
04521-10-0410	A	M4	2,8	10	3			on request
04521-10-0612	A	M6	4	12	4			on request
04521-10-0815	A	M8	4,8	15	5			on request
04521-10-1013	A	M10	5,5	11,5	7			on request
04521-10-1020	A	M10	6,4	20	7			on request
04521-10-1624	A	M16	9,7	24	12			on request
04521-10-1630	A	M16	9,7	30	12			on request
