Swing clamps

04390

Swing clamps

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Swing clamps Clamping hooks
        Swing clamps

Item description/product images

DescriptionMaterial:Body malleable iron.
Sleeve carbon steel 1.1191.
Screw carbon steel 1.1181.
Thrust pad mild steel 1.0301.Version:Painted.
Thrust pads case-hardened.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04390 Swing clamps

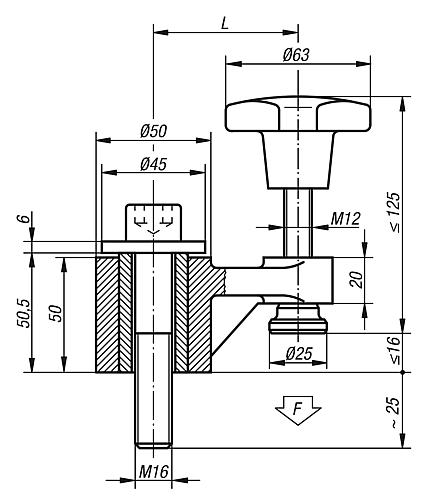

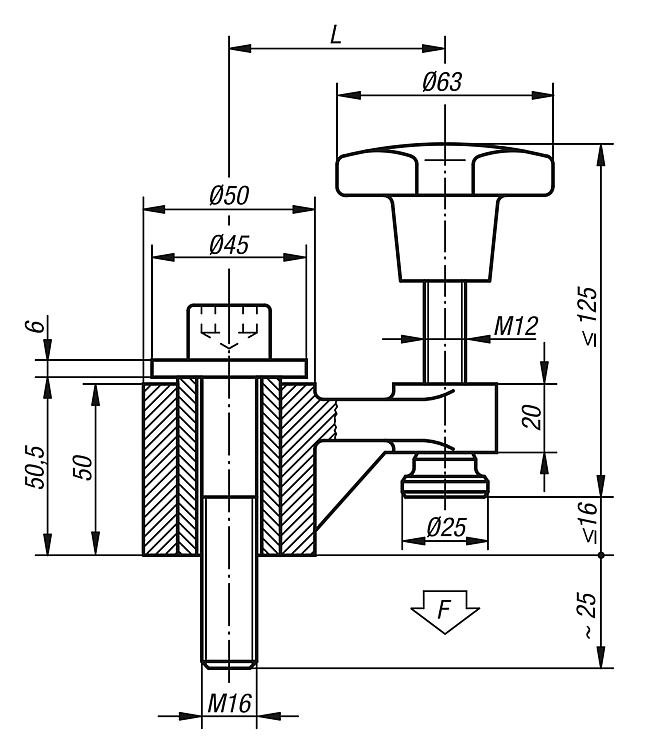

Drawings

Swing clamps

Item selection/filter

	63 100	5000 3000				Reset
Order No.	L	Clamping force N	CAD	Acc.	Price	Order
04390-01	63	5000			on request
04390-02	100	3000			on request
