Thrust pads for power clamps

go back

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Swing clamps Clamping hooks
        Thrust pads for power clamps

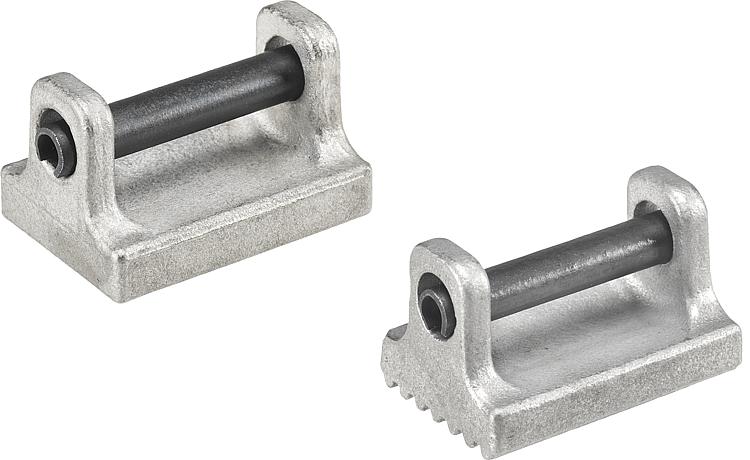

Item description/product images

Show/filter all items

DescriptionMaterial:Stainless steelNote:Power clamps can be fitted with serrated or smooth thrust pads.Accessory:Power clamp 04629.

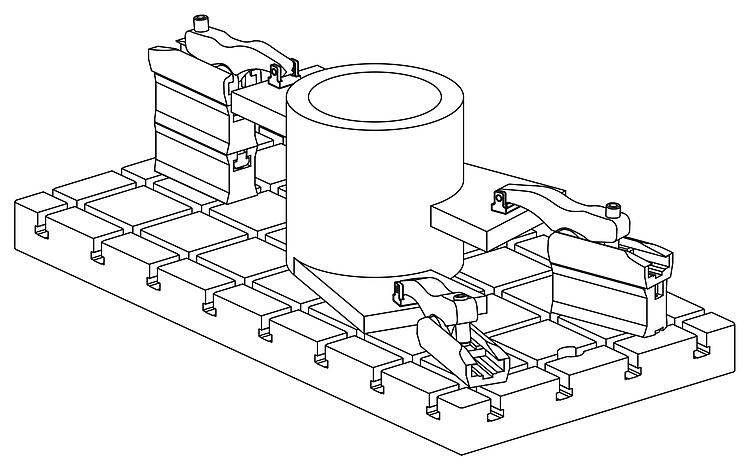

3-stage power clamp 04629-10.
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04631 Thrust pads for power clamps

238 kB

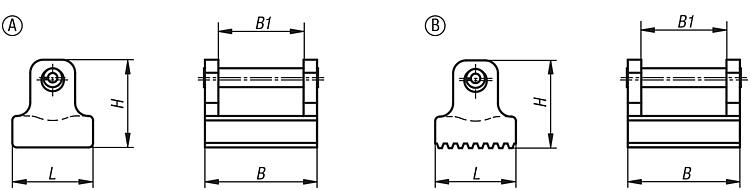

Drawings (total overview)

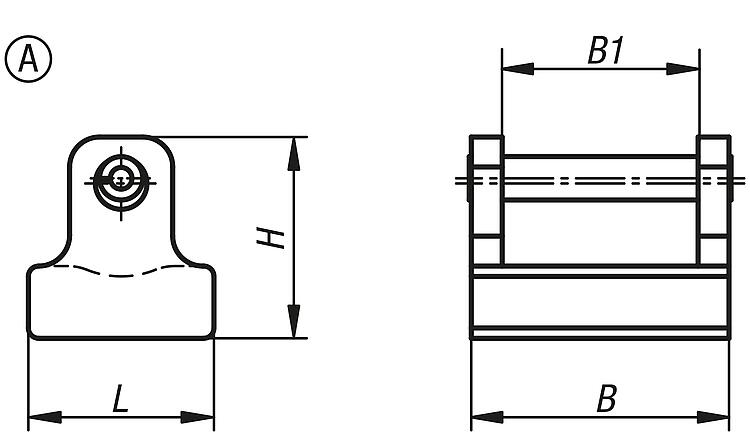

Thrust pads for power clamps, Form A, smooth

More information

Drawings

Thrust pads for power clamps, Form A, smooth

Item selection/filter

Order No.	Form	B	B1	H	L	Price
04631-019	A	19	13	14	12	on request
04631-025	A	25	19	19,5	18	on request
04631-030	A	30	21	24	20	on request
04631-036	A	36	26	28	25	on request
04631-043	A	43	31,5	29	28	on request

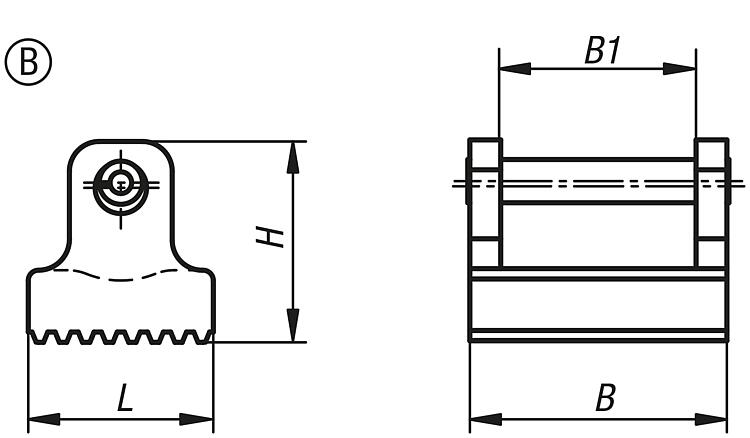

Thrust pads for power clamps, Form B, serrated

More information

Drawings

Thrust pads for power clamps, Form B, serrated

Item selection/filter

Order No.	Form	B	B1	H	L	Price
04631-119	B	19	13	14	12	on request
04631-125	B	25	19	19,5	18	on request
04631-130	B	30	21	24	20	on request
04631-136	B	36	26	28	25	on request
04631-143	B	43	31,5	29	28	on request
