Assembly tools for self-tapping threaded inserts

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Torque bolts and threaded inserts
        Assembly tools for self-tapping threaded inserts

Item description/product images

DescriptionMaterial:Steel.Version:Hand assembly tool, electro zinc-plated.
Machine assembly tool, black oxidised.Note:The turning in by hand is carried out with the manual assembly tool and a cordless screwdriver, ratchet, socket etc. Machine assembly is carried out with the machine assembly tool preferably on a thread-cutting machine.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07652 Assembly tools for self-tapping threaded inserts

159 kB

Datasheet 07652 Assembly tools for self-tapping threaded inserts

165 kB

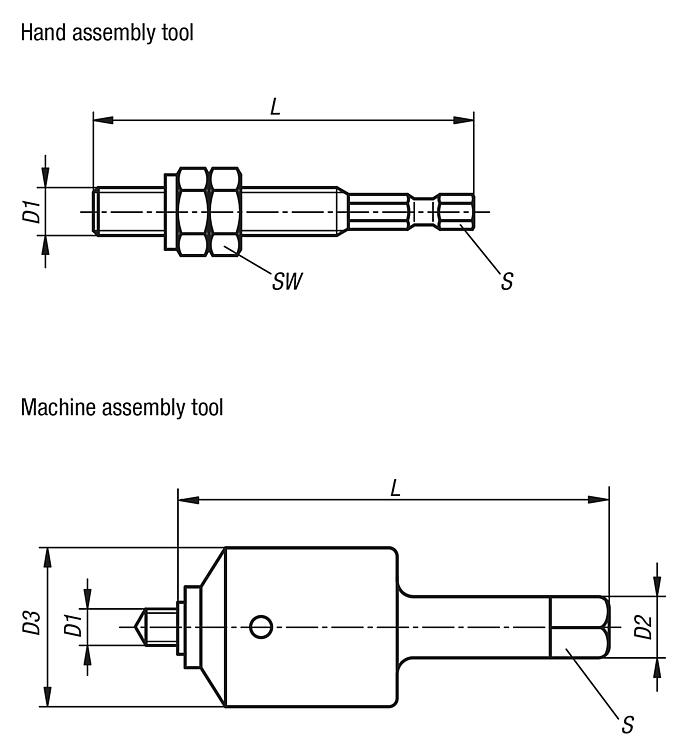

Drawings

Item selection/filter

Order No.	Version 1	D1 internal thread	D2	D3	L length	S	SW	Insertion torque ref. values Nm	RPM ref. values for light metal	Price
07652-803	manual operation	M3	-	-	46	1/4	5,5	2,5	-	on request
07652-804	manual operation	M4	-	-	48	1/4	7	5,5	-	on request
07652-805	manual operation	M5	-	-	57	1/4	8	10	-	on request
07652-806	manual operation	M6	-	-	62	1/4	10	15	-	on request
07652-808	manual operation	M8	-	-	72	1/4	13	28	-	on request
07652-810	manual operation	M10	-	-	82	1/4	17	40	-	on request
07652-812	manual operation	M12	-	-	92	1/4	19	60	-	on request
07652-903	machine type	M3	8	18	80	6	-	2,5	650 - 900	on request
07652-904	machine type	M4	8	18	80	6	-	5,5	400 - 600	on request
07652-905	machine type	M5	12,5	30	96,5	10	-	10	400 - 600	on request
07652-906	machine type	M6	12,5	30	96,5	10	-	15	280 - 400	on request
07652-908	machine type	M8	12,5	30	96,5	10	-	28	280 - 400	on request
07652-910	machine type	M10	13	40	110	10	-	40	200 - 300	on request
07652-912	machine type	M12	13	40	110	10	-	60	200 - 300	on request
07652-916	machine type	M16	13	40	110	10	-	160	150 - 200	on request
