DescriptionMaterial:Steel or stainless steel.Version:Passivated.Note:Threaded inserts allow threaded holes which have been damaged, torn out or jammed to be used again or to be repaired, enabling expensive products to be saved from the scrap heap.
Threaded inserts are suitable for use in various materials, including light metals and castings.
Inserts with internal threads larger than M6 are supplied with four locking pins instead of two.
Permissible deviations:
The medium tolerance class applies to the threads listed, i.e. 6H for nut threads and 6g for bolt threads.
Other dimensions ±0.25 mm.
Technical information see operating instructions for threaded inserts.Advantages:- Quick and easy installation.
- The insert is fixed with pins in order to prevent torsion due to twisting or vibrations.

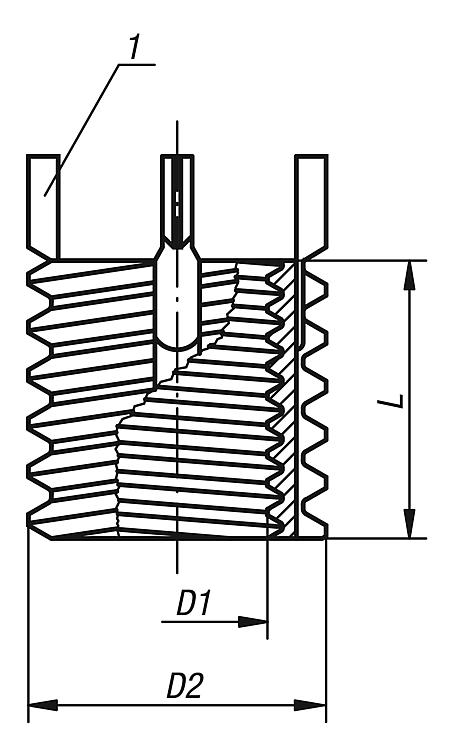

- No other special tools are required besides the assembly tool.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | D1
internal
thread | D2
external
thread | L
length | Core
drill Ø | Counter-
sink Ø
+0.25 | Tap
size | Min.
thread
depth | Removal
drill
Ø | Removal
drilling
depth | Order No.
assembly tools | CAD | Acc. | Price | Order |
|---|
| 07660-05 | steel | M5 | M8 | 8 | 6,9 | 8,3 | M8 | 9,5 | 5,5 | 4 | 07660-805 |  |  | on request | | | 07660-06 | steel | M6 | M10x1,25 | 10 | 8,8 | 10,3 | M10x1,25 | 11,5 | 7,5 | 4,8 | 07660-806 | | | on request | | | 07660-08 | steel | M8 | M12x1,25 | 12 | 10,8 | 12,3 | M12x1,25 | 13,5 | 9,5 | 4,8 | 07660-808 | | | on request | | | 07660-08X1 | steel | M8x1 | M12x1,25 | 12 | 10,8 | 12,3 | M12x1,25 | 13,5 | 9,5 | 4,8 | 07660-808 | | | on request | | | 07660-10 | steel | M10 | M14x1,5 | 14 | 12,8 | 14,3 | M14x1,5 | 15,5 | 11,5 | 4,8 | 07660-810 | | | on request | | | 07660-10X125 | steel | M10x1,25 | M14x1,5 | 14 | 12,8 | 14,3 | M14x1,5 | 15,5 | 11,5 | 4,8 | 07660-810 | | | on request | | | 07660-12 | steel | M12 | M16x1,5 | 16 | 14,8 | 16,3 | M16x1,5 | 17,5 | 13,5 | 4,8 | 07660-812 | | | on request | | | 07660-12X125 | steel | M12x1,25 | M16x1,5 | 16 | 14,8 | 16,3 | M16x1,5 | 17,5 | 13,5 | 4,8 | 07660-812 | | | on request | | | 07660-105 | stainless steel | M5 | M8 | 8 | 6,9 | 8,3 | M8 | 9,5 | 5,5 | 4 | 07660-805 | | | on request | | | 07660-106 | stainless steel | M6 | M10x1,25 | 10 | 8,8 | 10,3 | M10x1,25 | 11,5 | 7,5 | 4,8 | 07660-806 | | | on request | | | 07660-108 | stainless steel | M8 | M12x1,25 | 12 | 10,8 | 12,3 | M12x1,25 | 13,5 | 9,5 | 4,8 | 07660-808 | | | on request | | | 07660-108X1 | stainless steel | M8x1 | M12x1,25 | 12 | 10,8 | 12,3 | M12x1,25 | 13,5 | 9,5 | 4,8 | 07660-808 | | | on request | | | 07660-110 | stainless steel | M10 | M14x1,5 | 14 | 12,8 | 14,3 | M14x1,5 | 15,5 | 11,5 | 4,8 | 07660-810 | | | on request | | | 07660-110X125 | stainless steel | M10x1,25 | M14x1,5 | 14 | 12,8 | 14,3 | M14x1,5 | 15,5 | 11,5 | 4,8 | 07660-810 | | | on request | | | 07660-112 | stainless steel | M12 | M16x1,5 | 16 | 14,8 | 16,3 | M16x1,5 | 17,5 | 13,5 | 4,8 | 07660-812 | | | on request | | | 07660-112X125 | stainless steel | M12x1,25 | M16x1,5 | 16 | 14,8 | 16,3 | M16x1,5 | 17,5 | 13,5 | 4,8 | 07660-812 | | | on request | |
