        Threaded inserts reinforced

Item description/product images

DescriptionMaterial:Steel or stainless steel.Version:Passivated.Note:Reinforced threaded inserts allow threaded holes which have been damaged, torn out or jammed to be used again or to be repaired. This makes it possible to recover scrap and rejects of expensive products.
Reinforced threaded inserts are suitable for use in various materials, including light metals and casting.
Inserts with internal threads larger than M6 are supplied with four locking pins instead of two.
Permissible deviations:
The medium tolerance class applies to the threads listed, i.e. 6H for nut threads and 6g for bolt threads. Other dimensions ±0.25 mm.

With reinforced threaded inserts we also offer a version with a stronger cross-section for use in applications with greater stress.

Technical information see operating instructions for threaded inserts.Advantages:- Easier and quicker installation.
- The insert is fixated with wedges to prevent torsion due to twisting or vibrations.

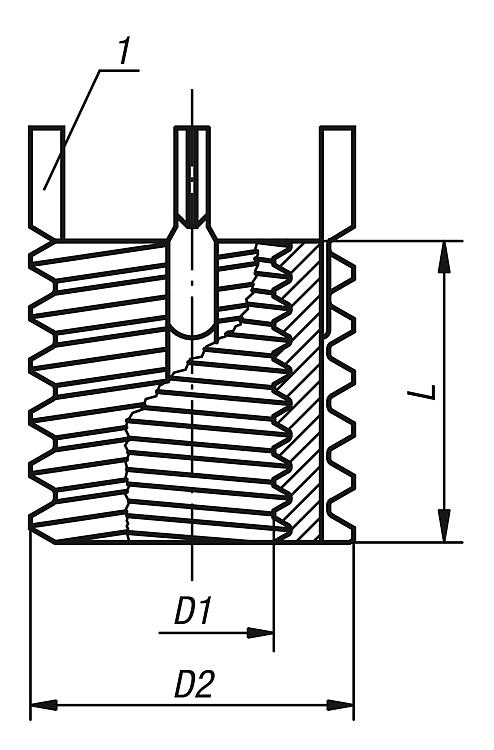

- No other special tools are needed besides the assembly tool.Drawing reference:

1) locking pin

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07661 Threaded inserts reinforced

230 kB

Drawings

Item selection/filter

Order No.	Main material	D1 internal thread	D2 external thread	L length	Core drill Ø	Counter- sink Ø +0.25	Tap size	Min. thread depth	Removal drill Ø	Removal drilling depth	Order No. assembly tools	Price
07661-04	steel	M4	M8	8	6,9	8,3	M8	9,5	5,5	4	07661-804	on request
07661-05	steel	M5	M10x1,25	10	8,8	10,3	M10x1,25	12,5	7,5	4,8	07661-805	on request
07661-06	steel	M6	M12x1,25	12	10,8	12,3	M12x1,25	14,5	9,5	4,8	07661-806	on request
07661-08	steel	M8	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	07661-808	on request
07661-08X1	steel	M8x1	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	07661-808	on request
07661-10	steel	M10	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	07661-810	on request
07661-10X125	steel	M10x1,25	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	07661-810	on request
07661-12	steel	M12	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	07661-812	on request
07661-12X125	steel	M12x1,25	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	07661-812	on request
07661-14	steel	M14	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	07661-814	on request
07661-14X15	steel	M14x1,5	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	07661-814	on request
07661-16	steel	M16	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	07661-816	on request
07661-16X15	steel	M16x1,5	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	07661-816	on request
07661-18X15	steel	M18x1,5	M24x1,5	24	22,5	24,3	M24x1,5	26,5	19,8	6,4	07661-818	on request
07661-20	steel	M20	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	07661-820	on request
07661-20X15	steel	M20x1,5	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	07661-820	on request
07661-22X15	steel	M22x1,5	M32x2	32	30	32,3	M32x2	36,5	27,8	6,4	07661-822	on request
07661-24	steel	M24	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	07661-824	on request
07661-24X2	steel	M24x2	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	07661-824	on request
07661-104	stainless steel	M4	M8	8	6,9	8,3	M8	9,5	5,5	4	07661-804	on request
07661-105	stainless steel	M5	M10x1,25	10	8,8	10,3	M10x1,25	12,5	7,5	4,8	07661-805	on request
07661-106	stainless steel	M6	M12x1,25	12	10,8	12,3	M12x1,25	14,5	9,5	4,8	07661-806	on request
07661-108	stainless steel	M8	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	07661-808	on request
07661-108X1	stainless steel	M8x1	M14x1,5	14	12,8	14,3	M14x1,5	16,5	11,5	4,8	07661-808	on request
07661-110	stainless steel	M10	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	07661-810	on request
07661-110X125	stainless steel	M10x1,25	M16x1,5	16	14,8	16,3	M16x1,5	18,5	13,5	4,8	07661-810	on request
07661-112	stainless steel	M12	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	07661-812	on request
07661-112X125	stainless steel	M12x1,25	M18x1,5	18	16,8	18,3	M18x1,5	20,5	15,5	4,8	07661-812	on request
07661-114	stainless steel	M14	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	07661-814	on request
07661-114X15	stainless steel	M14x1,5	M20x1,5	20	18,8	20,3	M20x1,5	22,5	17,5	4,8	07661-814	on request
07661-116	stainless steel	M16	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	07661-816	on request
07661-116X15	stainless steel	M16x1,5	M22x1,5	22	20,7	22,3	M22x1,5	24,5	17,8	6,4	07661-816	on request
07661-118X15	stainless steel	M18x1,5	M24x1,5	24	22,5	24,3	M24x1,5	26,5	19,8	6,4	07661-818	on request
07661-120	stainless steel	M20	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	07661-820	on request
07661-120X15	stainless steel	M20x1,5	M30x2	30	28	30,3	M30x2	34,5	25,8	6,4	07661-820	on request
07661-122X15	stainless steel	M22x1,5	M32x2	32	30	32,3	M32x2	36,5	27,8	6,4	07661-822	on request
07661-124	stainless steel	M24	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	07661-824	on request
07661-124X2	stainless steel	M24x2	M33x2	33	31	33,3	M33x2	37,5	28,8	6,4	07661-824	on request
