Swivel castors, steel plate with soft rubber tyres and bolt hole

95026-01

Swivel castors, steel plate with soft rubber tyres and bolt hole

Products
- Product overview
  - Material handling and transport
    - Material handling and transport
      - Wheels and rollers
        Swivel castors, steel plate with soft rubber tyres and bolt hole

Item description/product images

Show/filter all items

DescriptionMaterial:Housing, steel plate.
Wheel tyre, high quality elastic solid rubber.
Wheel rim, high quality unbreakable polyamide.Version:Housing, press-formed.

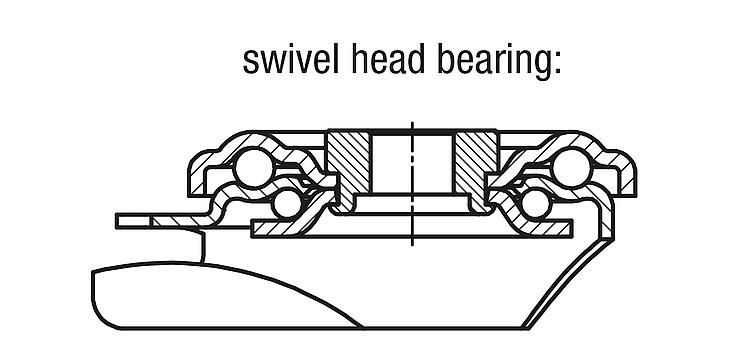

Swivel housing, double-row ball bearings in a swivel head.
Ball bearing wheel axle bearings.Note:Wheel axle bolted.Application:Maximum travel comfort, excellent cushioning of the transported goods. The new soft rubber series brings noticeable noise reduction in all applications.Temperature range:-25 °C to +80 °C.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95026-01 Swivel castors, steel plate with soft rubber tyres and bolt hole

Drawings (total overview)

Swivel castors, steel plate with soft rubber tyres and bolt hole

Swivel castors, steel plate with soft rubber tyres and bolt hole

Swivel castors

More information

Drawings

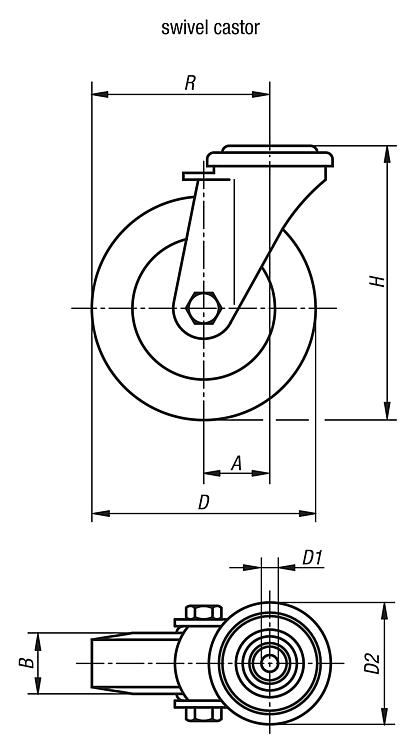

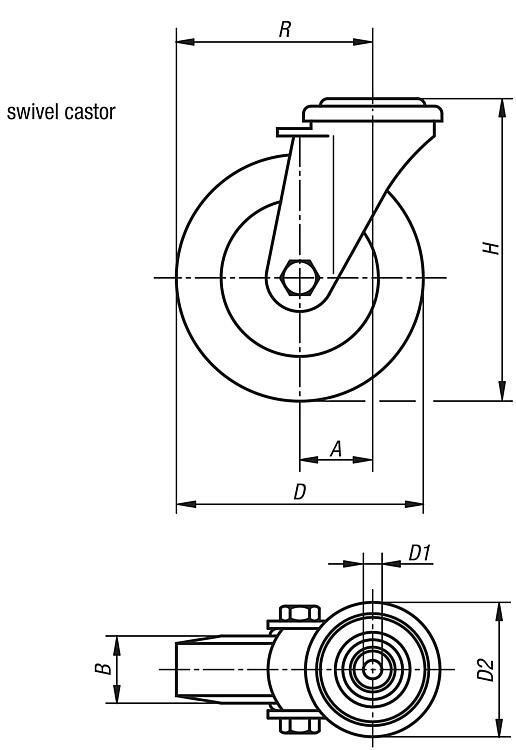

Swivel castors

Swivel castors

Item selection/filter

Order No.	Item	Wheel bearing	A	B	D	D1	D2	H	R	Permissible load kg	CAD	Acc.	Price	Order
95026-01-10100040	Swivel castor	ball bearing	36	40	100	13	70	125	86	150			on request
95026-01-10125040	Swivel castor	ball bearing	40	40	125	13	70	150	102,5	150			on request

Swivel castors with stop fix

More information

Drawings

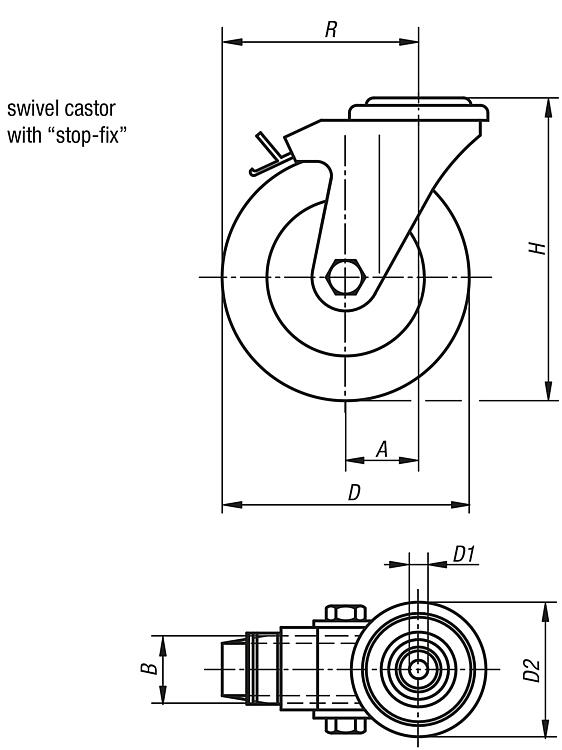

Swivel castors with stop fix

Swivel castors with stop fix

Item selection/filter

Order No.	Item	Wheel bearing	A	B	D	D1	D2	H	R	Permissible load kg	CAD	Acc.	Price	Order
95026-01-101000402	Swivel castor	ball bearing	36	40	100	13	70	125	86	150			on request
95026-01-101250402	Swivel castor	ball bearing	40	40	125	13	70	150	102,5	150			on request
