        Steel plate swivel and fixed castors with Extrathane® tread, medium load version

Item description/product images

Show/filter all items

DescriptionMaterial:Housing steel plate.
Wheel body die-cast aluminium with Extrathane® tread.Version:Housing press formed.

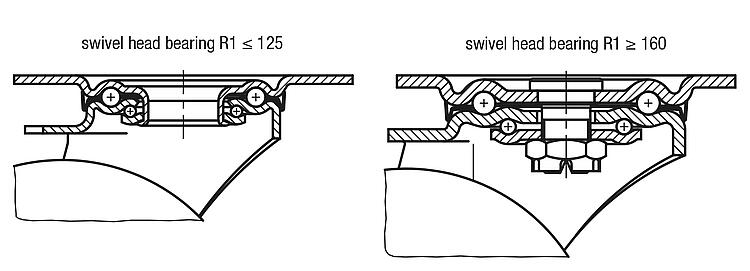

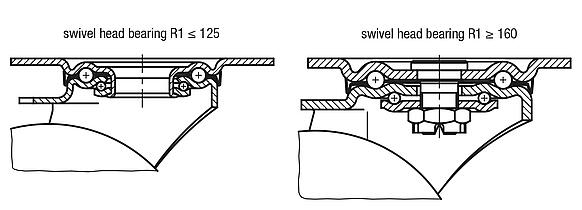

Double ball bearing with ball shield in the castor head.
Precision ball bearings in the wheels.Note:The wheels are corrosion resistant and they have a low rolling resistance. Wheel axle bolted.
From diameter 125 mm the wheels have spokes.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95028 Swivel and fixed castors medium-duty version

424 kB

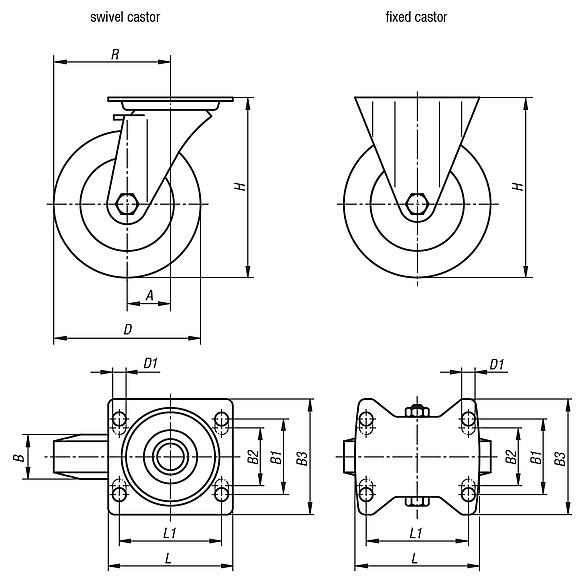

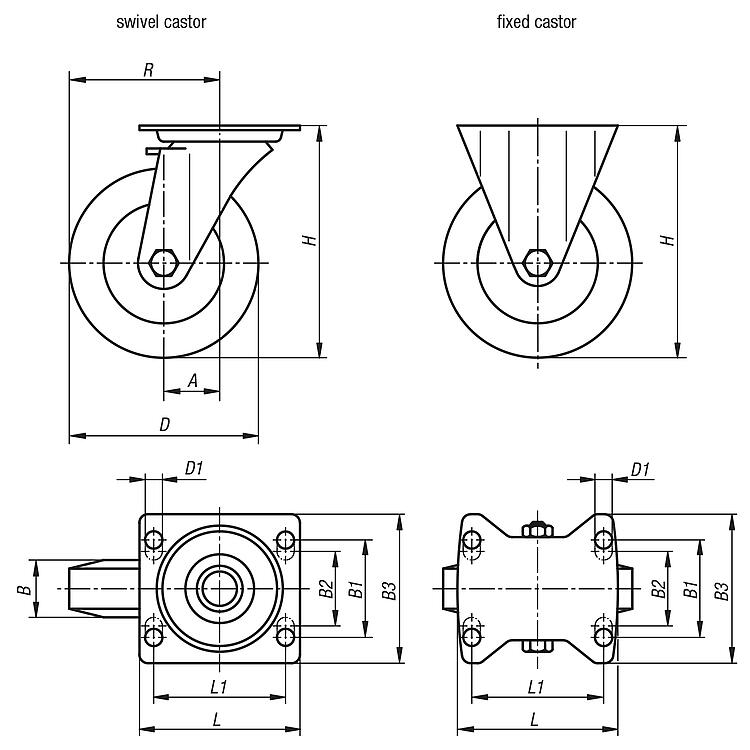

Drawings (total overview)

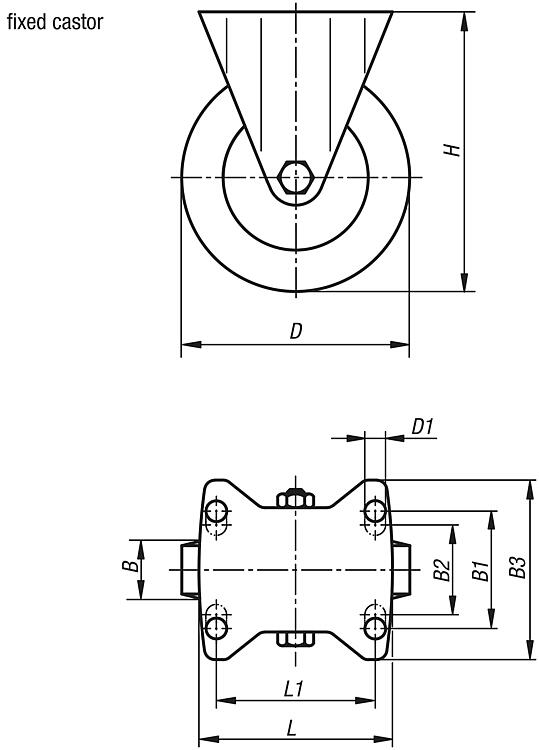

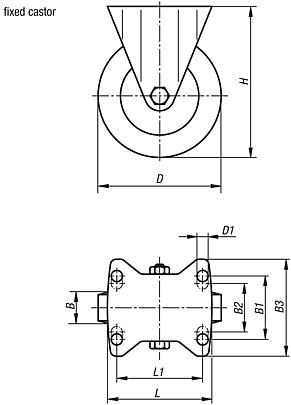

Steel plate fixed castors with Extrathane® tread, medium load version

More information

Drawings

Steel plate fixed castors with Extrathane® tread, medium load version

Item selection/filter

	Fixed castor	without locking system	ball bearing	40 50	60 80	- 75	85 110	100 125 160 200	9 11	130 155 202 245	100 140	80 105	250 550 800				Reset
Order No.	Item	Version 1	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	Permissible load kg	CAD	Acc.	Price	Order
95028-100401	Fixed castor	without locking system	ball bearing	40	60	-	85	100	9	130	100	80	250			on request
95028-125401	Fixed castor	without locking system	ball bearing	40	60	-	85	125	9	155	100	80	250			on request
95028-160501	Fixed castor	without locking system	ball bearing	50	80	75	110	160	11	202	140	105	550			on request
95028-200501	Fixed castor	without locking system	ball bearing	50	80	75	110	200	11	245	140	105	800			on request

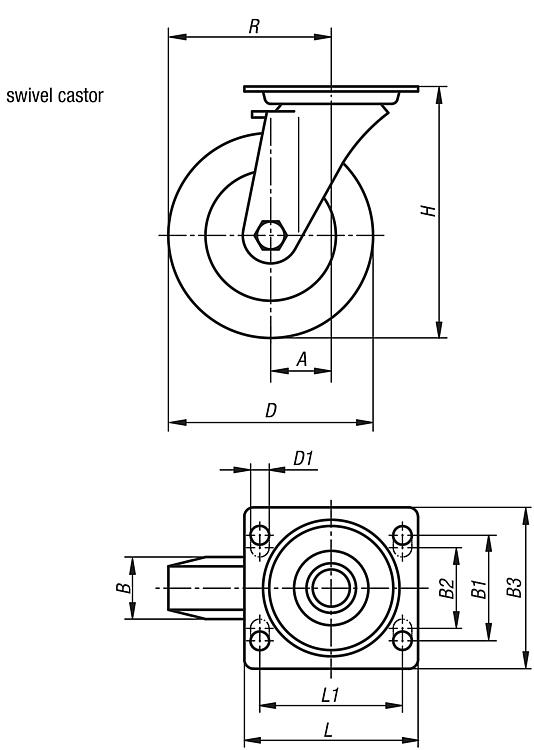

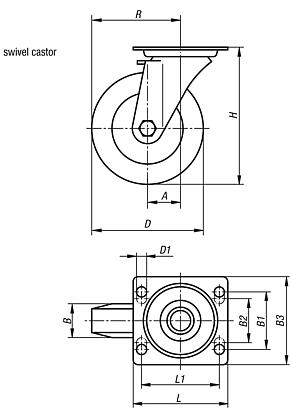

Steel plate swivel castors with Extrathane® tread, medium load version

More information

Drawings

Steel plate swivel castors with Extrathane® tread, medium load version

Item selection/filter

	Swivel castor	without locking system	ball bearing	45 48 63 70	40 50	60 80	- 75	85 110	100 125 160 200	9 11	130 155 202 245	100 140	80 105	95 110,5 143 170	250 550 800				Reset
Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	CAD	Acc.	Price	Order
95028-10040	Swivel castor	without locking system	ball bearing	45	40	60	-	85	100	9	130	100	80	95	250			on request
95028-12540	Swivel castor	without locking system	ball bearing	48	40	60	-	85	125	9	155	100	80	110,5	250			on request
95028-16050	Swivel castor	without locking system	ball bearing	63	50	80	75	110	160	11	202	140	105	143	550			on request
95028-20050	Swivel castor	without locking system	ball bearing	70	50	80	75	110	200	11	245	140	105	170	800			on request

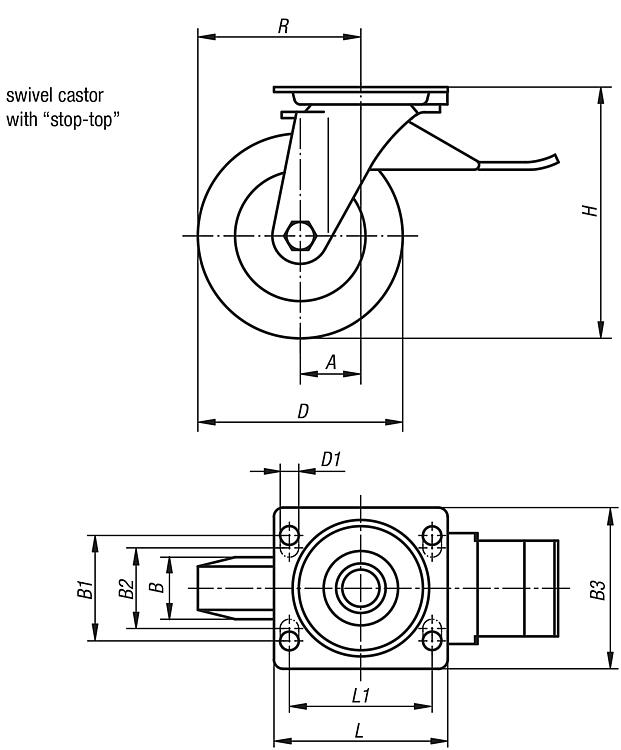

Steel plate swivel castors with stop-top, Extrathane® tread, medium load version

More information

Drawings

Steel plate swivel castors with stop-top, Extrathane® tread, medium load version

Item selection/filter

	Swivel castor	with stop-top locking system	ball bearing	45 48 63 70	40 50	60 80	- 75	85 110	100 125 160 200	9 11	130 155 202 245	100 140	80 105	95 110,5 143 170	250 550 800				Reset
Order No.	Item	Version 1	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	R	Permissible load kg	CAD	Acc.	Price	Order
95028-100402	Swivel castor	with stop-top locking system	ball bearing	45	40	60	-	85	100	9	130	100	80	95	250			on request
95028-125402	Swivel castor	with stop-top locking system	ball bearing	48	40	60	-	85	125	9	155	100	80	110,5	250			on request
95028-160502	Swivel castor	with stop-top locking system	ball bearing	63	50	80	75	110	160	11	202	140	105	143	550			on request
95028-200502	Swivel castor	with stop-top locking system	ball bearing	70	50	80	75	110	200	11	245	140	105	170	800			on request
