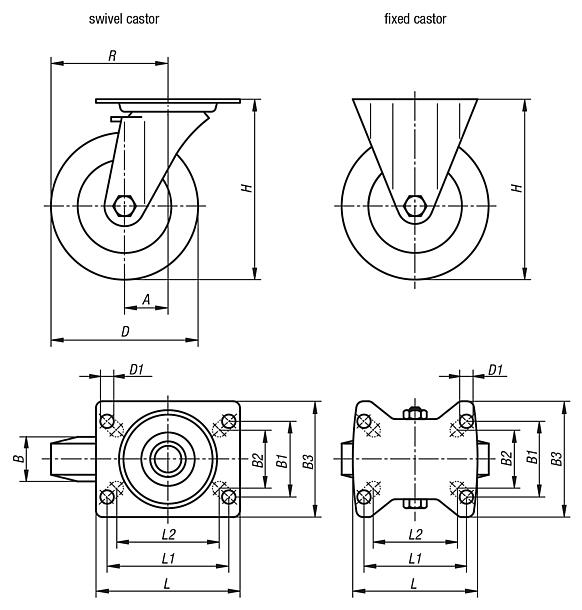

        Swivel and fixed castors, stainless steel with polyamide wheels, standard version

Item description/product images

Show/filter all items

DescriptionMaterial:

Housing stainless steel 1.4301.
Wheels high-quality unbreakable polyamide.

Version:Housing press formed.

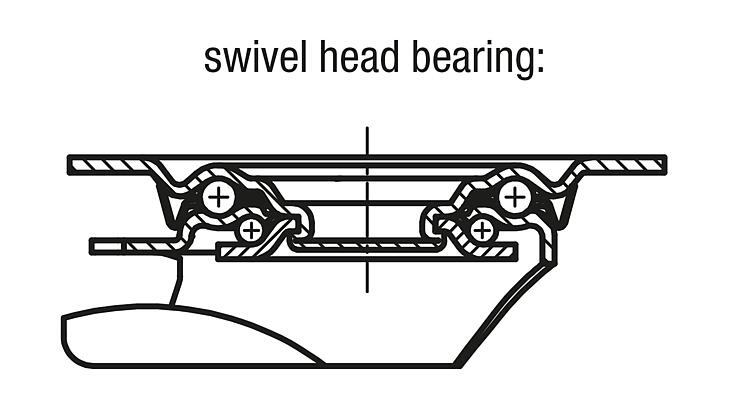

Double ball bearing in the castor head.
Plain bearing in wheels.Note:Wheel axle bolted.
Swivel and fixed castors with mounting plate.
Vibratory ground surface.
Stainless.Temperature range:-25 °C to +80 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95041 Swivel and fixed castors stainless steel, standard version

317 kB

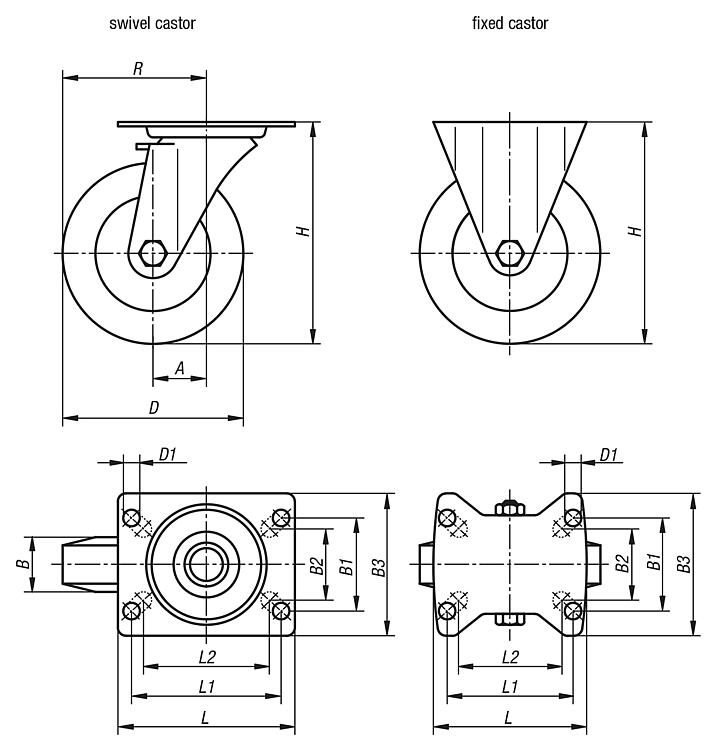

Drawings (total overview)

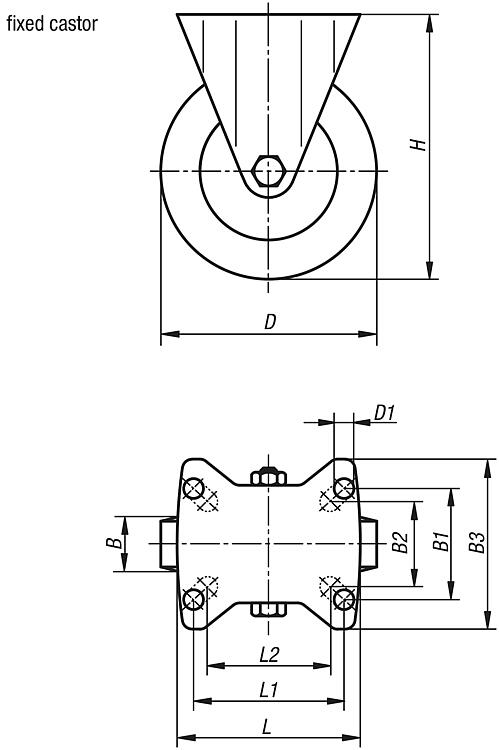

Fixed castors, stainless steel with polyamide wheels, standard version

More information

Drawings

Fixed castors, stainless steel with polyamide wheels, standard version

Item selection/filter

	Fixed castor	plain bearing	32 37 40 50	60 80	55 75	85 110	75 100 125 150	9 11	100 125 150 190	100 140	80 105	76 -	150 300				Reset
Order No.	Item	Wheel bearing	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	CAD	Acc.	Price	Order
95041-210750321	Fixed castor	plain bearing	32	60	55	85	75	9	100	100	80	76	150			on request
95041-211000371	Fixed castor	plain bearing	37	60	55	85	100	9	125	100	80	76	150			on request
95041-211250401	Fixed castor	plain bearing	40	60	55	85	125	9	150	100	80	76	150			on request
95041-211500501	Fixed castor	plain bearing	50	80	75	110	150	11	190	140	105	-	300			on request

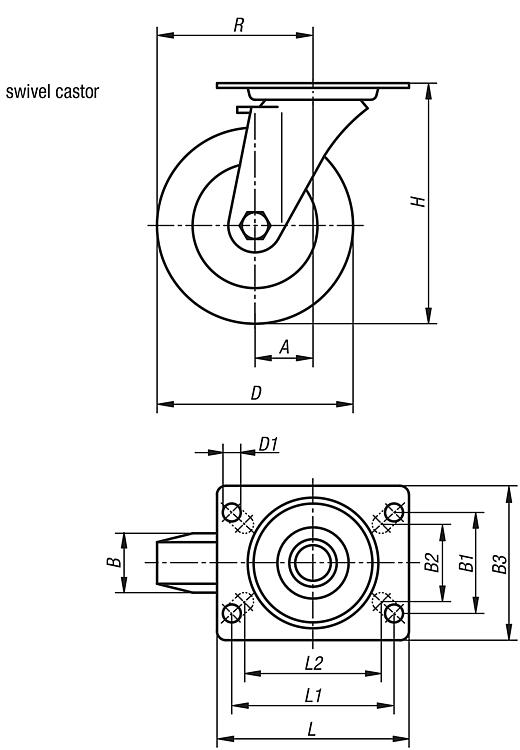

Swivel castors, stainless steel with polyamide wheels, standard version

More information

Drawings

Swivel castors, stainless steel with polyamide wheels, standard version

Item selection/filter

	Swivel castor	plain bearing	38 36 40 54	32 37 40 50	60 80	55 75	85 110	75 100 125 150	9 11	100 125 150 190	100 140	80 105	76 -	150 300				Reset
Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	CAD	Acc.	Price	Order
95041-21075032	Swivel castor	plain bearing	38	32	60	55	85	75	9	100	100	80	76	150			on request
95041-21100037	Swivel castor	plain bearing	36	37	60	55	85	100	9	125	100	80	76	150			on request
95041-21125040	Swivel castor	plain bearing	40	40	60	55	85	125	9	150	100	80	76	150			on request
95041-21150050	Swivel castor	plain bearing	54	50	80	75	110	150	11	190	140	105	-	300			on request

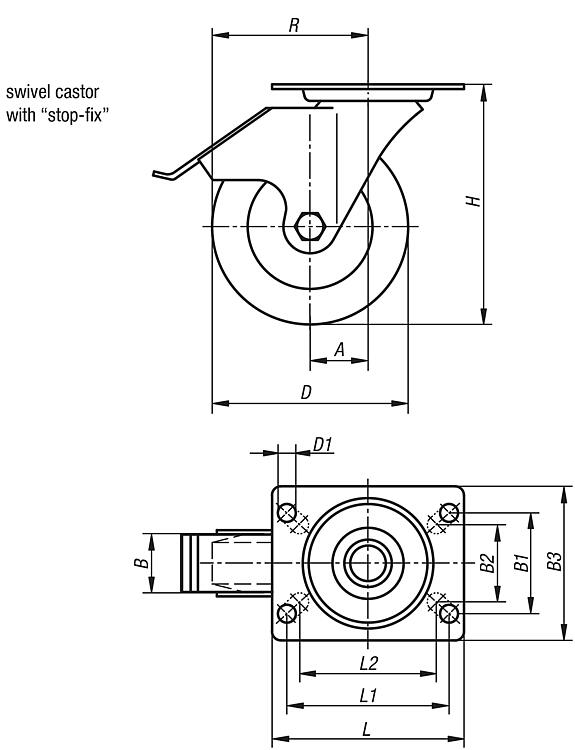

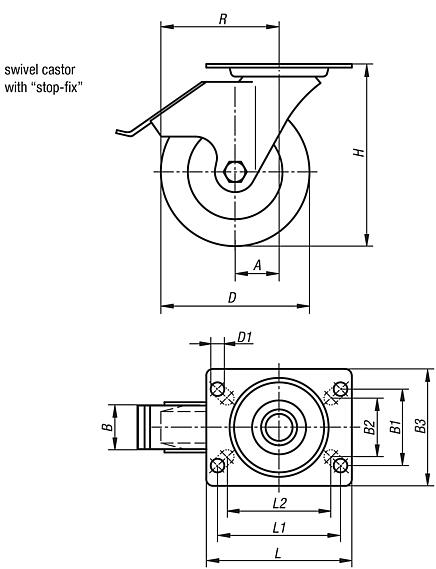

Swivel castors, stainless steel with stop-fix and polyamide wheels, standard version

More information

Drawings

Swivel castors, stainless steel with stop-fix and polyamide wheels, standard version

Item selection/filter

	Swivel castor	plain bearing	38 36 40 54	32 37 40 50	60 80	55 75	85 110	75 100 125 150	9 11	100 125 150 190	100 140	80 105	76 -	150 300				Reset
Order No.	Item	Wheel bearing	A	B	B1	B2	B3	D	D1	H	L	L1	L2	Permissible load kg	CAD	Acc.	Price	Order
95041-210750322	Swivel castor	plain bearing	38	32	60	55	85	75	9	100	100	80	76	150			on request
95041-211000372	Swivel castor	plain bearing	36	37	60	55	85	100	9	125	100	80	76	150			on request
95041-211250402	Swivel castor	plain bearing	40	40	60	55	85	125	9	150	100	80	76	150			on request
95041-211500502	Swivel castor	plain bearing	54	50	80	75	110	150	11	190	140	105	-	300			on request
