33070Deflection dial gauge holders 90° |
go back |
|
Item description/product images |
|
|

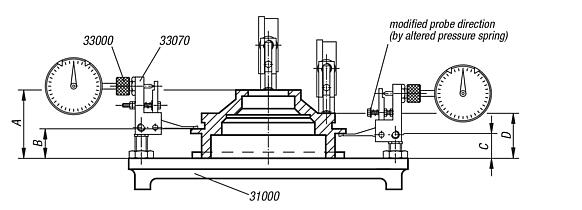

DescriptionMaterial:Steel.Version:Black oxidised.Note:To alter the probe direction and mounting of the deflection dial gauge holder with the fastening adaptors (supplied) see technical information.Accessory:Dial gauges see 32540 and 32542.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

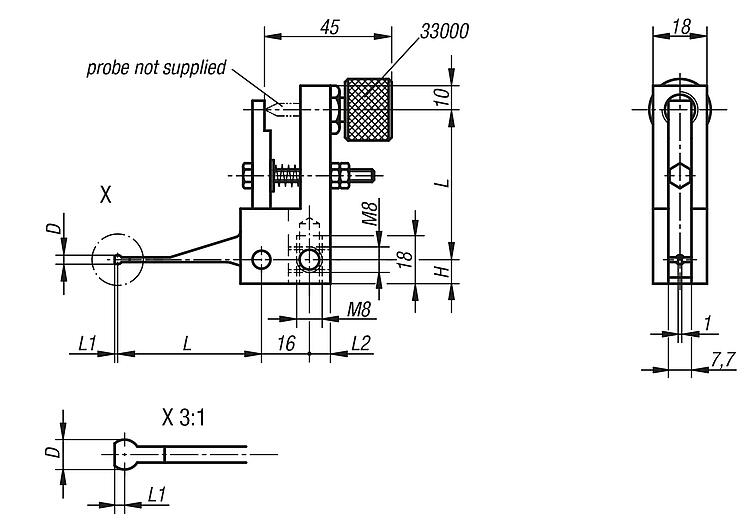

| Order No. | L | D
| L1 | L2 | H | CAD | Acc. | Price | Order |
|---|
| 33070-04803 | 48 | 3 | 1 | 7 | 8 |  | | on request | | | 33070-07008 | 70 | 8 | 1,5 | 6 | 10 | | | on request | |
