Deflection dial gauge holders 90° probe lever with thread
 33072

Deflection dial gauge holders 90° probe lever with thread

 go back

Item description/product images

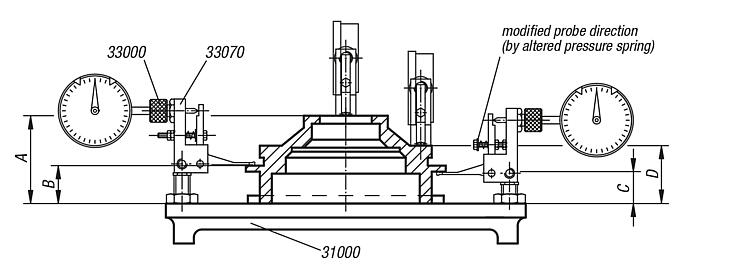

DescriptionMaterial:Steel.Version:Black oxidised.Note:To alter the probe direction and mounting of the deflection dial gauge holder with the fastening adaptors (supplied) see technical information.Accessory:Dial gauges see 32540 and 32542.
Probe inserts see 33042-040016.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 33072 Deflection dial gauge holders 90° probe lever with thread 248 kB
Technical information for deflection dial gauge holders 130 kB

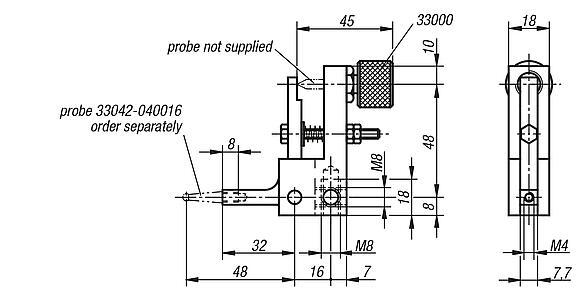

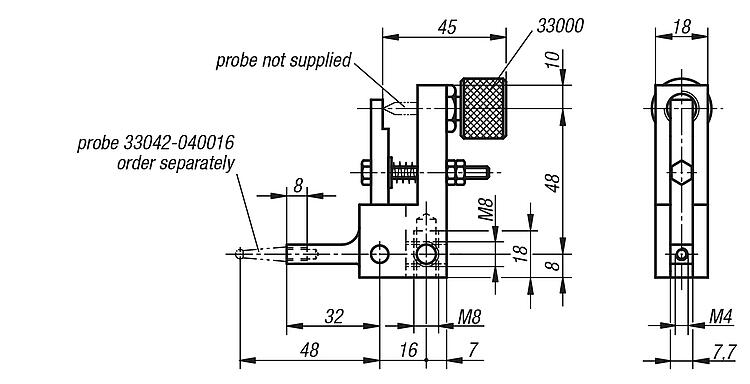

Drawings

Deflection dial gauge holders 90° probe lever with thread

Item selection/filter
Order No.

DimensionsCADAcc.PriceOrder
33072-048see drawing on request
