Deflection dial gauge holders 180° probe lever with hole

33076

Deflection dial gauge holders 180° probe lever with hole

Products
- Product overview
  - Measuring and testing components
    - Standard inspection and test fixture elements
      - Deflection dial gauge holders 180° probe lever with hole

Item description/product images

DescriptionMaterial:Body aluminium.
Probe lever investment cast steel.Version:Body black anodised.
Probe lever black oxidised.Note:To alter the probe direction and mounting of the deflection dial gauge holder with the fastening adaptors (supplied) see technical information.Accessory:Dial gauges see 32540 and 32542.
Probe inserts see 33040 to 33052.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 33076 Deflection dial gauge holders 180° probe lever with hole

Technical information for deflection dial gauge holders

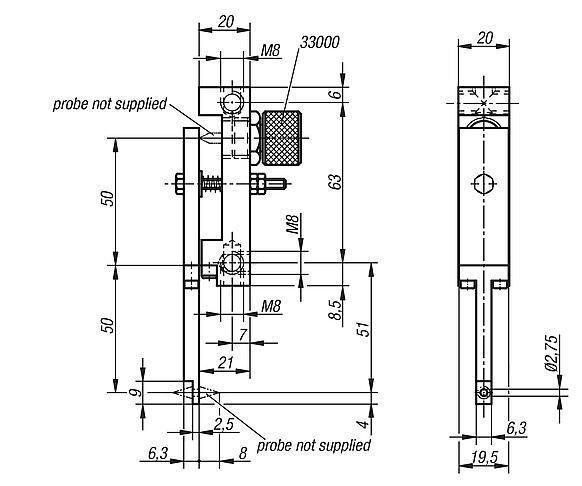

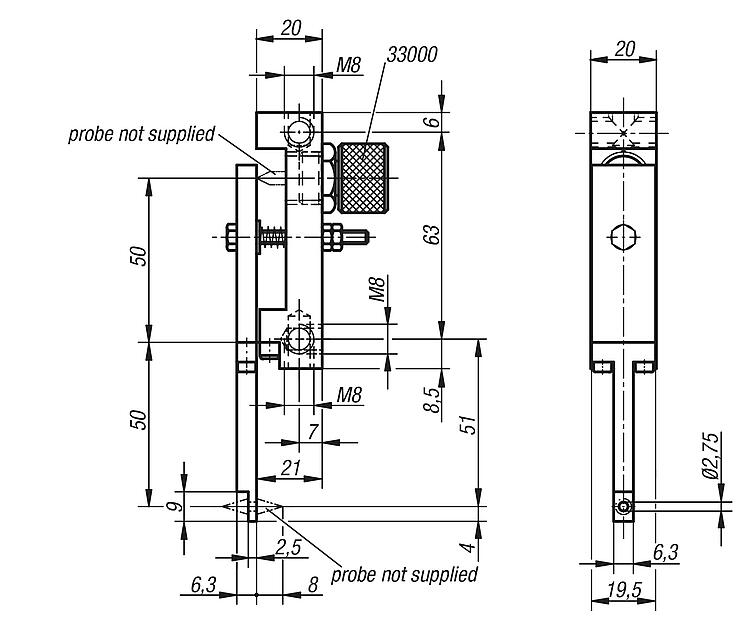

Drawings

Deflection dial gauge holders 180° probe lever with hole

Item selection/filter

Order No.	Dimensions	CAD	Acc.	Price	Order
33076-050	see drawing			on request
