33250Clamping component set |
go back |
|
Item description/product images |
|
|

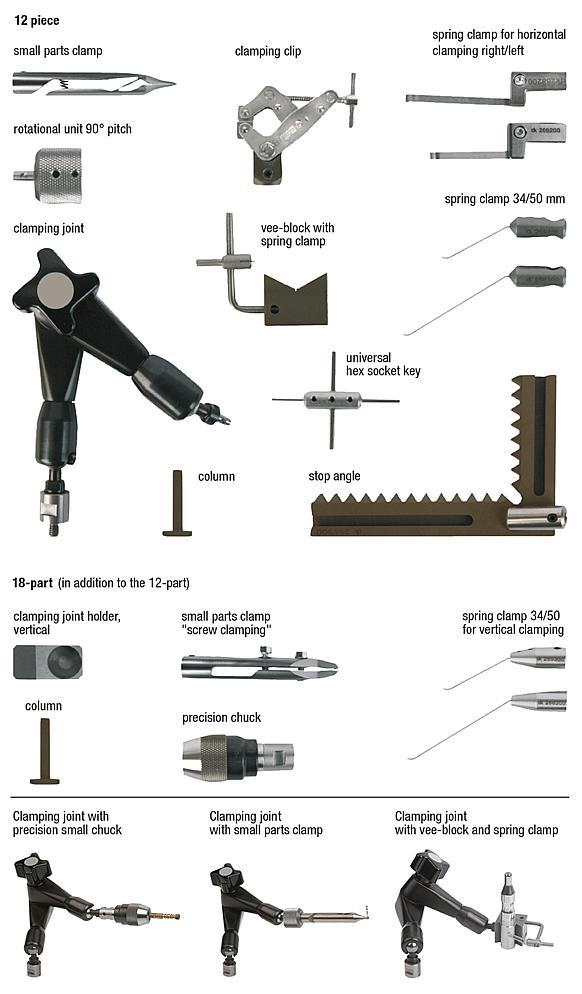

DescriptionNote:Clamping component set for microscopes and optical measurement devices to quickly and flexibly clamp small parts. A wide variety of workpieces such as plastic, punched or turned parts can be precisely positioned and securely held. Holding parts, a frequent problem in measuring, is largely solved.
The basis of the clamping system is a high-quality clamping joint that is fixed to the measuring table. A quick-change interface allows elements such as chucks or clamps to be easily mounted on the clamping joint.
Supplied in a wooden case.Application:– chuck and V-block for holding rotationally symmetric parts
– stop angle, clamping clip and small parts clamps for clamping e.g. plate or sheet metal and bent parts.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Version 1 | CAD | Acc. | Price | Order |
|---|
| 33250-12 | 12 piece |  | | on request | | | 33250-18 | 18 piece | | | on request | |
