Spring fingers, stainless steel
 33260

Spring fingers, stainless steel

 go back

Item description/product images

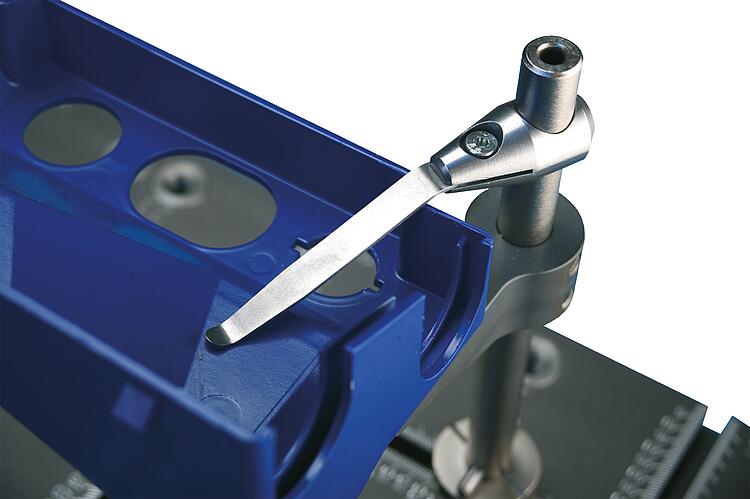

DescriptionMaterial:Stainless steelVersion:Bright.Note:For holding small parts on measurement and control plates.Accessory:Columns, stainless steel for spring fingers 33262.Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 33260 Spring fingers, stainless steel 443 kB

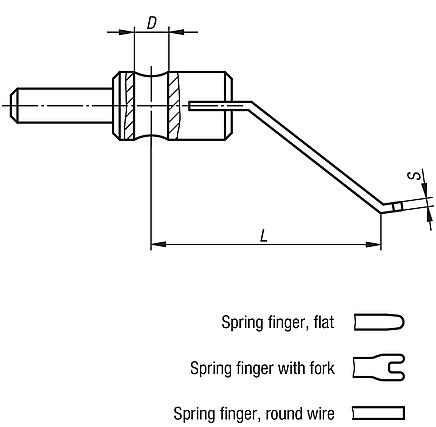

Drawings

Spring fingers, stainless steel

Item selection/filter
Order No.Version

D

LSCADAcc.PriceOrder
33260-10403004flat4300,4 on request
33260-10403008flat4300,8 on request
33260-10605010flat6501 on request
33260-10607510flat6751 on request
33260-11207510flat12751 on request
33260-11209510flat12951 on request
33260-21207515fork12751,5 on request
33260-21209515fork12951,5 on request
33260-30404011round4401,1 on request
33260-30406011round4601,1 on request
33260-31208025round12802,5 on request
33260-31208030round12803 on request
