Vent screws brass with check valve

Products
- Product overview
  - Systems and components for machine and plant construction
    - Oil level gauges Caps Plugs Vent screws Dipsticks Filler necks
      - Vent screws brass with check valve

Item description/product images

DescriptionMaterial:Housing and cap brass.
Spring stainless steel.
Lift disc brass.

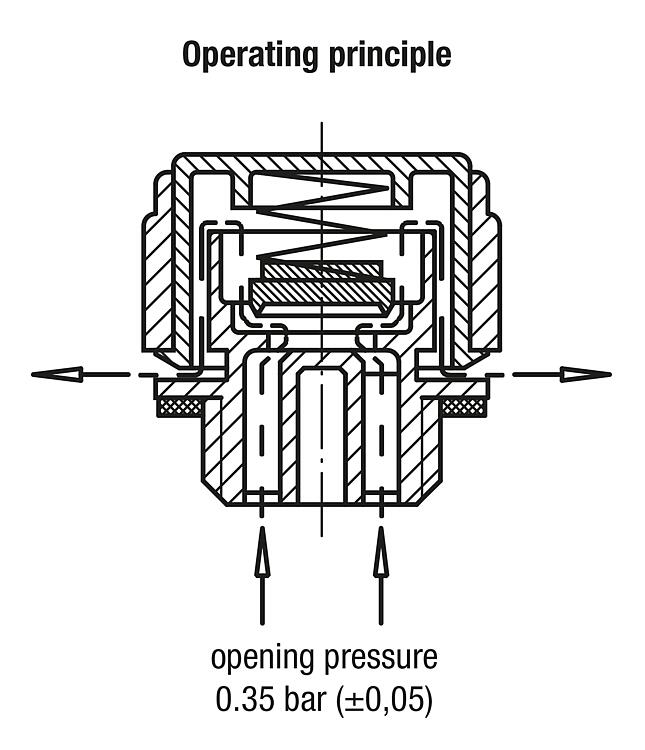

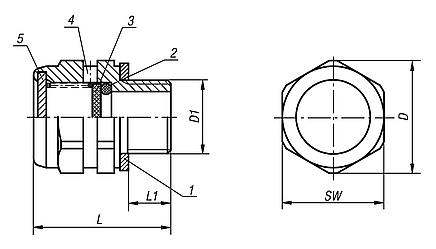

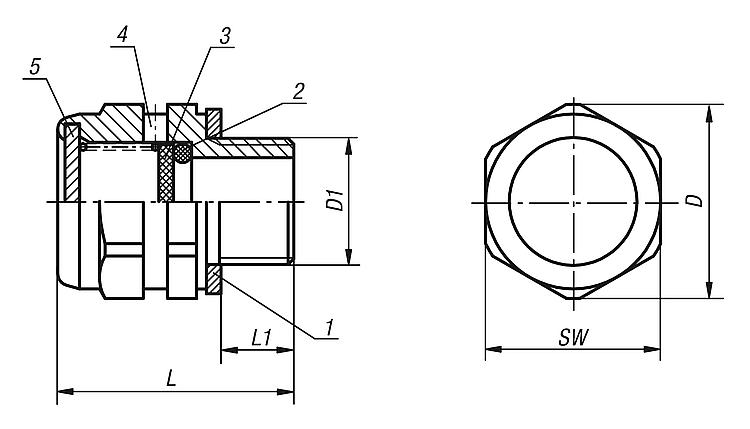

O-ring NBR.Version:Flat seal asbestos-free.Note:Opening pressure 0.35 bar (±0,05).Functional principle:See 28038 vent screws with check valve.Drawing reference:

1) flat seal
2) O-ring
3) lift disc
4) vent hole 2x
5) cap

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 28042 Vent screws brass with check valve

267 kB

Drawings

Item selection/filter

	20 24,5 30	G1/4 G3/8 G1/2	24,3 24,5	7,5 8,5	18 22 27				Reset
Order No.	D	D1	L	L1	SW	CAD	Acc.	Price	Order
28042-20014	20	G1/4	24,3	7,5	18			on request
28042-24038	24,5	G3/8	24,5	8,5	22			on request
28042-30012	30	G1/2	24,5	8,5	27			on request
