        Palm grips, stainless steel, similar to DIN 6335, inch

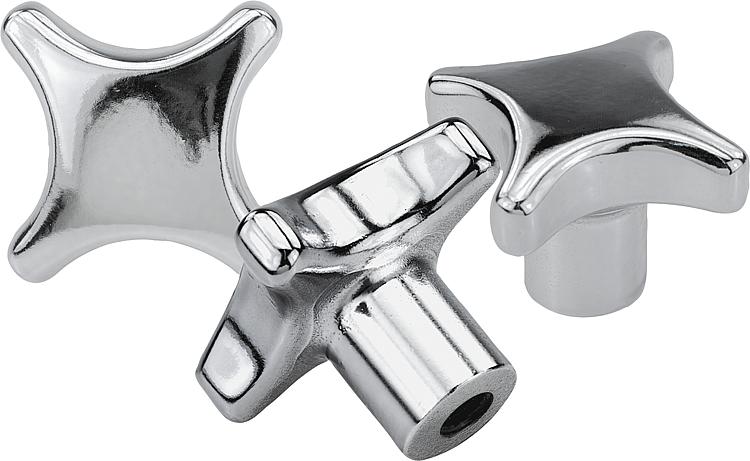

Item description/product images

DescriptionMaterial:

Stainless steel 1.4308.

Version:Ground and polished.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.On request:With external thread.Drawing reference:

Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06158 inch Palm grips, stainless steel, similar to DIN 6335, inch

203 kB

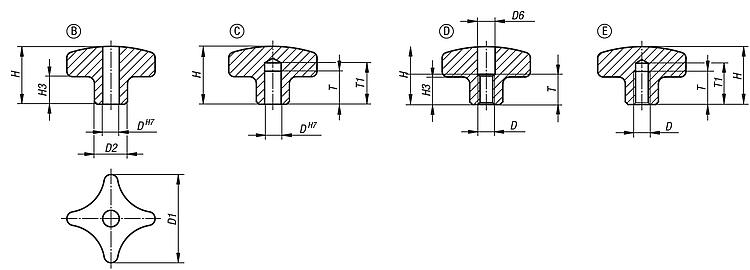

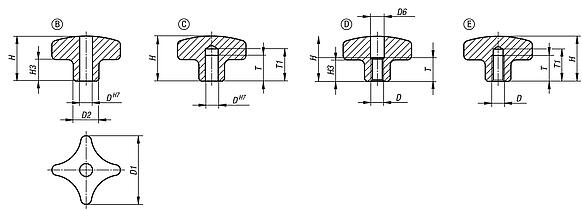

Drawings (total overview)

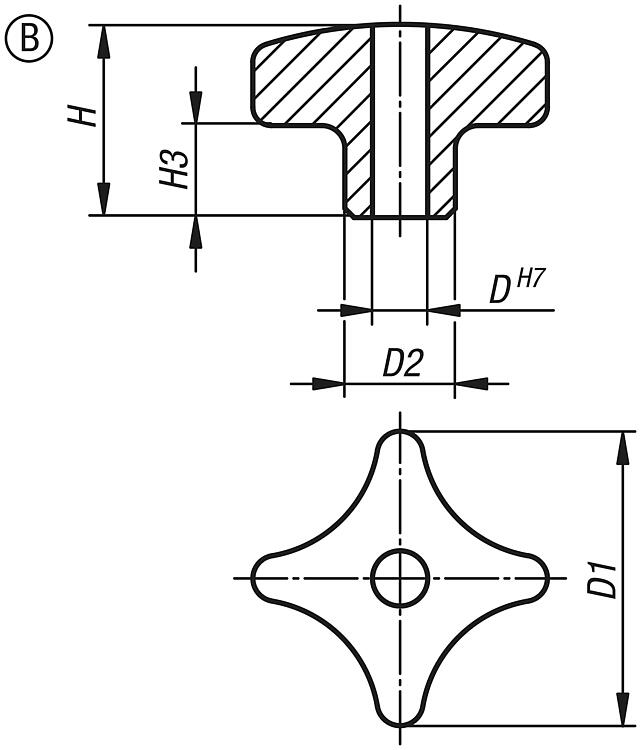

Palm grips stainless steel, similar to DIN 6335, Form B, drilled through, inch

More information

Drawings

Palm grips stainless steel, similar to DIN 6335, Form B, drilled through, inch

Item selection/filter

	B	polished	0,25 0,312 0,375 0,5	32 40 50 63	12 14 18 20	21 26 34 42	10 13 17 21				Reset
Order No.	Form	Surface finish body	D	D1	D2	H	H3	CAD	Acc.	Price	Order
06158-2032CM2	B	polished	0,25	32	12	21	10			on request
06158-2040CN2	B	polished	0,312	40	14	26	13			on request
06158-2050CO2	B	polished	0,375	50	18	34	17			on request
06158-2063CP2	B	polished	0,5	63	20	42	21			on request

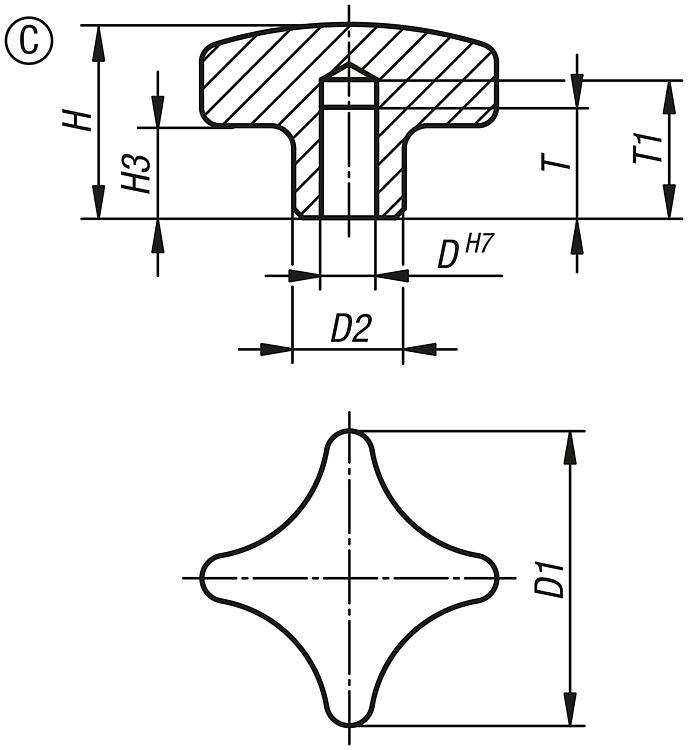

Palm grips similar to DIN 6335, stainless steel, Form C, blind hole, inch

More information

Drawings

Palm grips similar to DIN 6335, stainless steel, Form C, blind hole, inch

Item selection/filter

	C	polished	0,312 0,375 0,5 0,25	40 50 63 32	14 18 20 12	26 34 42 21	13 17 21 10	15 18 22 12	18 21 25 15				Reset
Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1	CAD	Acc.	Price	Order
06158-3040CN2	C	polished	0,312	40	14	26	13	15	18			on request
06158-3050CO2	C	polished	0,375	50	18	34	17	18	21			on request
06158-3063CP2	C	polished	0,5	63	20	42	21	22	25			on request
06158-3032CM2	C	polished	0,25	32	12	21	10	12	15			on request

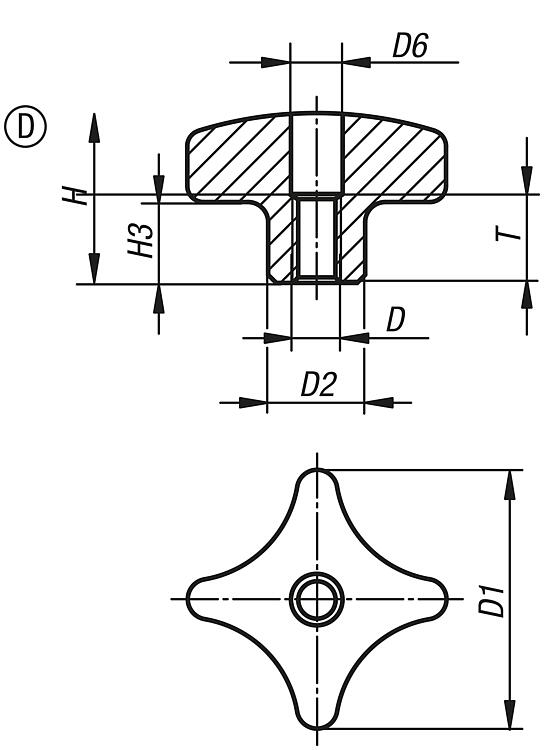

Palm grips, stainless steel, similar to DIN 6335, Form D, thread countersunk, inch

More information

Drawings

Palm grips, stainless steel, similar to DIN 6335, Form D, thread countersunk, inch

Item selection/filter

	D	polished	1/4-20 5/16-18 3/8-16 1/2-13	32 40 50 63	12 14 18 20	6,4 8,4 10,5 13	21 26 34 42	10 13 17 21	11 14 18 22				Reset
Order No.	Form	Surface finish body	D	D1	D2	D6	H	H3	T	CAD	Acc.	Price	Order
06158-4032A22	D	polished	1/4-20	32	12	6,4	21	10	11			on request
06158-4040A32	D	polished	5/16-18	40	14	8,4	26	13	14			on request
06158-4050A42	D	polished	3/8-16	50	18	10,5	34	17	18			on request
06158-4063A52	D	polished	1/2-13	63	20	13	42	21	22			on request

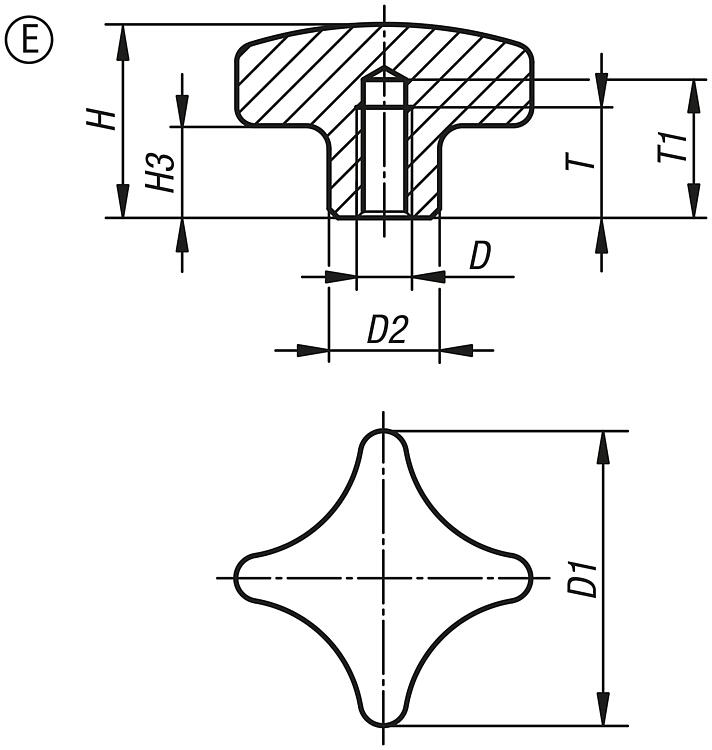

Palm grips, stainless steel, similar to DIN 6335, Form E, blind tapped hole, inch

More information

Drawings

Palm grips, stainless steel, similar to DIN 6335, Form E, blind tapped hole, inch

Item selection/filter

	E	polished	1/4-20 5/16-18 3/8-16 1/2-13	32 40 50 63	12 14 18 20	21 26 34 42	10 13 17 21	12 15 18 22	15 18 21 25				Reset
Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1	CAD	Acc.	Price	Order
06158-5032A22	E	polished	1/4-20	32	12	21	10	12	15			on request
06158-5040A32	E	polished	5/16-18	40	14	26	13	15	18			on request
06158-5050A42	E	polished	3/8-16	50	18	34	17	18	21			on request
06158-5063A52	E	polished	1/2-13	63	20	42	21	22	25			on request
