        Star grips similar to DIN 6336, metal parts stainless steel, inch

Item description/product images

Show/filter all items

DescriptionMaterial:

Black thermoplastic.
Bush and screw stainless steel 1.4305.

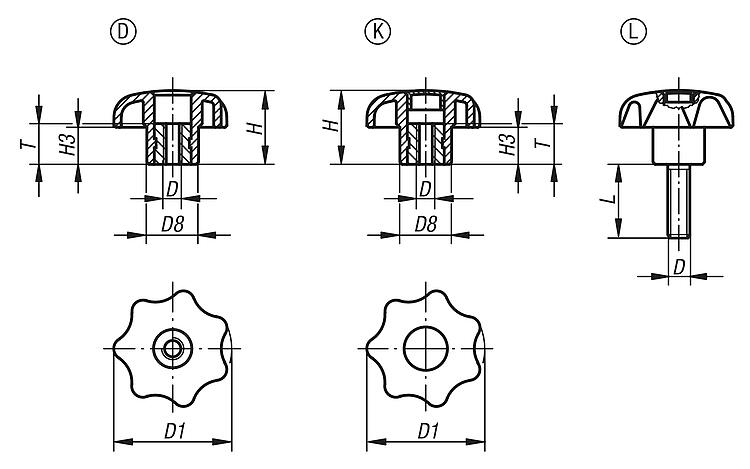

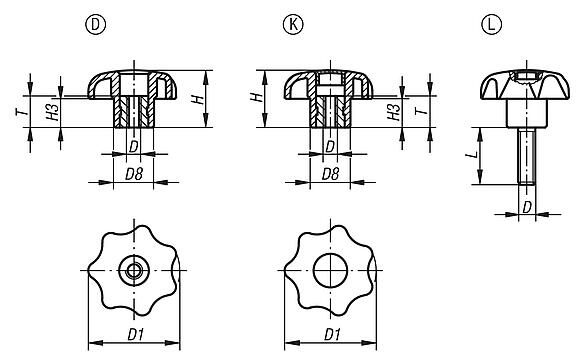

Version:Bush and screw bright.On request:Other colours or designs, such as company logo.Drawing reference:

Form D: tapped bush without cap
Form K: tapped bush with cap
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06212 inch Star grips similar to DIN 6336, metal parts stainless steel, inch

188 kB

Drawings (total overview)

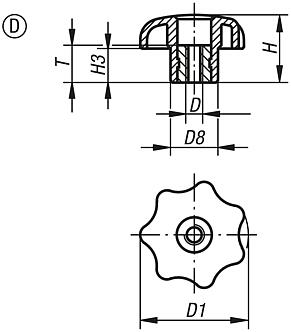

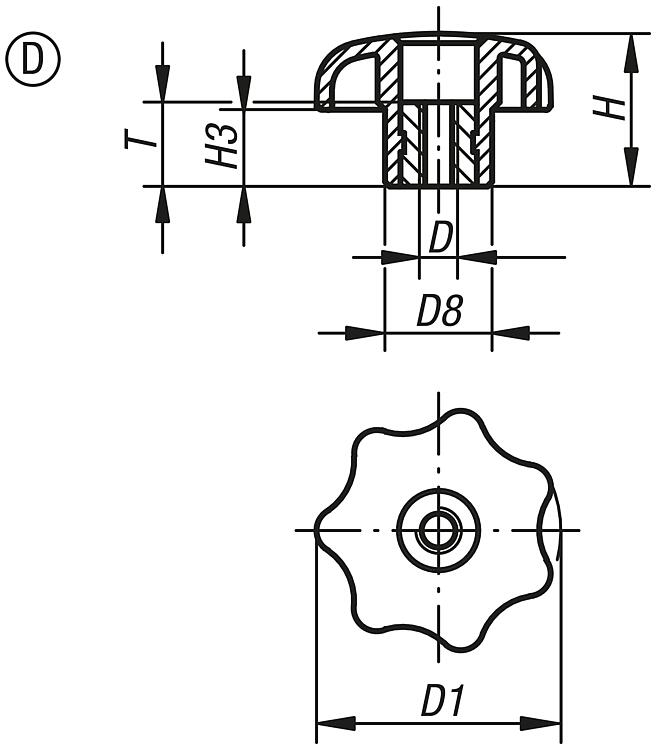

Star Grips steel parts in stainless steel similar to DIN 6336, Style D, inch

More information

Drawings

Star Grips steel parts in stainless steel similar to DIN 6336, Style D, inch

Item selection/filter

Order No.	Form	D	D1	D8	H	H3	T	Price
06212-5AE	D	8-32	25	12	16	8	10	on request
06212-5A1	D	10-32	25	12	16	8	10	on request
06212-5A21	D	1/4-20	25	12	15	8	10	on request
06212-5A11	D	10-32	32	14	20	10	10	on request
06212-5A2	D	1/4-20	32	14	20	10	10	on request
06212-5A41	D	3/8-16	40	18	25	13	14	on request
06212-5A3	D	5/16-18	40	18	25	13	14	on request
06212-5A31	D	5/16-18	50	22	32	17	14	on request
06212-5A4	D	3/8-16	50	22	32	17	14	on request
06212-5A51	D	1/2-13	50	22	32	17	18	on request
06212-5A42	D	3/8-16	63	26	40	21	14	on request
06212-5A5	D	1/2-13	63	26	40	21	18	on request
06212-5A6	D	5/8-11	63	26	40	21	18	on request

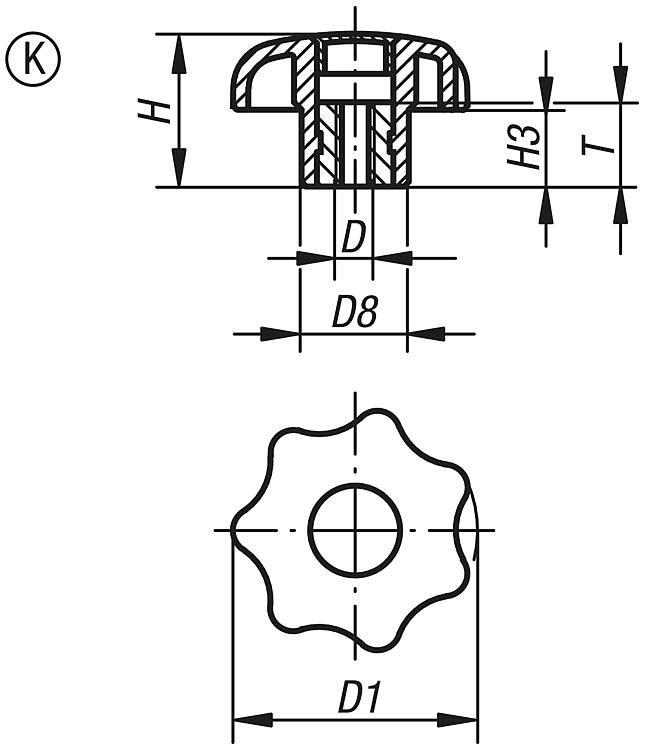

Star Grips steel parts in stainless steel similar to DIN 6336, Style K, inch

More information

Drawings

Star Grips steel parts in stainless steel similar to DIN 6336, Style K, inch

Item selection/filter

Order No.	Colour Cap	Form	D	D1	D8	H	H3	T	Price
06212-2AE	black grey RAL 7021	K	8-32	25	12	16	8	10	on request
06212-2AE5	light grey RAL 7035	K	8-32	25	12	16	8	10	on request
06212-2AE6	traffic red RAL 3020	K	8-32	25	12	16	8	10	on request
06212-2AE7	colza yellow RAL 1021	K	8-32	25	12	16	8	10	on request
06212-2A1	black grey RAL 7021	K	10-32	25	12	16	8	10	on request
06212-2A15	light grey RAL 7035	K	10-32	25	12	16	8	10	on request
06212-2A16	traffic red RAL 3020	K	10-32	25	12	16	8	10	on request
06212-2A17	colza yellow RAL 1021	K	10-32	25	12	16	8	10	on request
06212-2A21	black grey RAL 7021	K	1/4-20	25	12	16	8	10	on request
06212-2A215	light grey RAL 7035	K	1/4-20	25	12	16	8	10	on request
06212-2A216	traffic red RAL 3020	K	1/4-20	25	12	16	8	10	on request
06212-2A217	colza yellow RAL 1021	K	1/4-20	25	12	16	8	10	on request
06212-2A11	black grey RAL 7021	K	10-32	32	14	20	10	10	on request
06212-2A115	light grey RAL 7035	K	10-32	32	14	20	10	10	on request
06212-2A116	traffic red RAL 3020	K	10-32	32	14	20	10	10	on request
06212-2A117	colza yellow RAL 1021	K	10-32	32	14	20	10	10	on request
06212-2A2	black grey RAL 7021	K	1/4-20	32	14	20	10	10	on request
06212-2A25	light grey RAL 7035	K	1/4-20	32	14	20	10	10	on request
06212-2A26	traffic red RAL 3020	K	1/4-20	32	14	20	10	10	on request
06212-2A27	colza yellow RAL 1021	K	1/4-20	32	14	20	10	10	on request
06212-2A3	black grey RAL 7021	K	5/16-18	40	18	25	13	14	on request
06212-2A35	light grey RAL 7035	K	5/16-18	40	18	25	13	14	on request
06212-2A36	traffic red RAL 3020	K	5/16-18	40	18	25	13	14	on request
06212-2A37	colza yellow RAL 1021	K	5/16-18	40	18	25	13	14	on request
06212-2A41	black grey RAL 7021	K	3/8-16	40	18	25	13	14	on request
06212-2A415	light grey RAL 7035	K	3/8-16	40	18	25	13	14	on request
06212-2A416	traffic red RAL 3020	K	3/8-16	40	18	25	13	14	on request
06212-2A417	colza yellow RAL 1021	K	3/8-16	40	18	25	13	14	on request
06212-2A31	black grey RAL 7021	K	5/16-18	50	22	32	17	14	on request
06212-2A315	light grey RAL 7035	K	5/16-18	50	22	32	17	14	on request
06212-2A316	traffic red RAL 3020	K	5/16-18	50	22	32	17	14	on request
06212-2A317	colza yellow RAL 1021	K	5/16-18	50	22	32	17	14	on request
06212-2A4	black grey RAL 7021	K	3/8-16	50	22	32	17	14	on request
06212-2A45	light grey RAL 7035	K	3/8-16	50	22	32	17	14	on request
06212-2A46	traffic red RAL 3020	K	3/8-16	50	22	32	17	14	on request
06212-2A47	colza yellow RAL 1021	K	3/8-16	50	22	32	17	14	on request
06212-2A51	black grey RAL 7021	K	1/2-13	50	22	32	17	18	on request
06212-2A515	light grey RAL 7035	K	1/2-13	50	22	32	17	18	on request
06212-2A516	traffic red RAL 3020	K	1/2-13	50	22	32	17	18	on request
06212-2A517	colza yellow RAL 1021	K	1/2-13	50	22	32	17	18	on request
06212-2A42	black grey RAL 7021	K	3/8-16	63	26	40	21	14	on request
06212-2A425	light grey RAL 7035	K	3/8-16	63	26	40	21	14	on request
06212-2A426	traffic red RAL 3020	K	3/8-16	63	26	40	21	14	on request
06212-2A427	colza yellow RAL 1021	K	3/8-16	63	26	40	21	14	on request
06212-2A5	black grey RAL 7021	K	1/2-13	63	26	40	21	18	on request
06212-2A55	light grey RAL 7035	K	1/2-13	63	26	40	21	18	on request
06212-2A56	traffic red RAL 3020	K	1/2-13	63	26	40	21	18	on request
06212-2A57	colza yellow RAL 1021	K	1/2-13	63	26	40	21	18	on request
06212-2A6	black grey RAL 7021	K	5/8-11	63	26	40	21	18	on request
06212-2A65	light grey RAL 7035	K	5/8-11	63	26	40	21	18	on request
06212-2A66	traffic red RAL 3020	K	5/8-11	63	26	40	21	18	on request
06212-2A67	colza yellow RAL 1021	K	5/8-11	63	26	40	21	18	on request

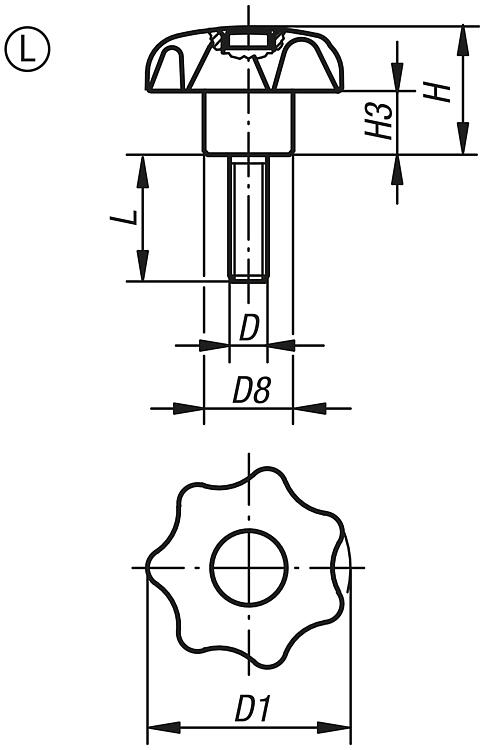

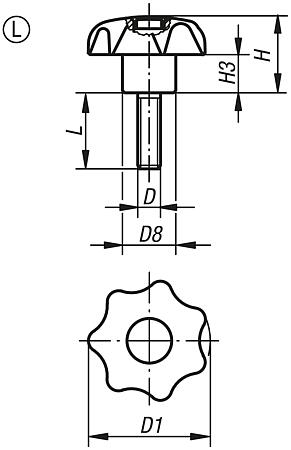

Star Grips steel parts in stainless steel similar to DIN 6336, Style L, inch

More information

Drawings

Star Grips steel parts in stainless steel similar to DIN 6336, Style L, inch

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	L	Price
06212-4A1X10	L	black grey RAL 7021	10-32	25	12	16	8	10	on request
06212-4A15X10	L	light grey RAL 7035	10-32	25	12	16	8	10	on request
06212-4A16X10	L	traffic red RAL 3020	10-32	25	12	16	8	10	on request
06212-4A17X10	L	colza yellow RAL 1021	10-32	25	12	16	8	10	on request
06212-4A1X20	L	black grey RAL 7021	10-32	25	12	16	8	20	on request
06212-4A15X20	L	light grey RAL 7035	10-32	25	12	16	8	20	on request
06212-4A16X20	L	traffic red RAL 3020	10-32	25	12	16	8	20	on request
06212-4A17X20	L	colza yellow RAL 1021	10-32	25	12	16	8	20	on request
06212-4A21X20	L	black grey RAL 7021	1/4-20	25	12	16	8	20	on request
06212-4A215X20	L	light grey RAL 7035	1/4-20	25	12	16	8	20	on request
06212-4A216X20	L	traffic red RAL 3020	1/4-20	25	12	16	8	20	on request
06212-4A217X20	L	colza yellow RAL 1021	1/4-20	25	12	16	8	20	on request
06212-4A21X30	L	black grey RAL 7021	1/4-20	25	12	16	8	30	on request
06212-4A215X30	L	light grey RAL 7035	1/4-20	25	12	16	8	30	on request
06212-4A216X30	L	traffic red RAL 3020	1/4-20	25	12	16	8	30	on request
06212-4A217X30	L	colza yellow RAL 1021	1/4-20	25	12	16	8	30	on request
06212-4A2X20	L	black grey RAL 7021	1/4-20	32	14	20	10	20	on request
06212-4A25X20	L	light grey RAL 7035	1/4-20	32	14	20	10	20	on request
06212-4A26X20	L	traffic red RAL 3020	1/4-20	32	14	20	10	20	on request
06212-4A27X20	L	colza yellow RAL 1021	1/4-20	32	14	20	10	20	on request
06212-4A2X30	L	black grey RAL 7021	1/4-20	32	14	20	10	30	on request
06212-4A25X30	L	light grey RAL 7035	1/4-20	32	14	20	10	30	on request
06212-4A26X30	L	traffic red RAL 3020	1/4-20	32	14	20	10	30	on request
06212-4A27X30	L	colza yellow RAL 1021	1/4-20	32	14	20	10	30	on request
06212-4A31X20	L	black grey RAL 7021	5/16-18	32	14	20	10	20	on request
06212-4A315X20	L	light grey RAL 7035	5/16-18	32	14	20	10	20	on request
06212-4A316X20	L	traffic red RAL 3020	5/16-18	32	14	20	10	20	on request
06212-4A317X20	L	colza yellow RAL 1021	5/16-18	32	14	20	10	20	on request
06212-4A31X40	L	black grey RAL 7021	5/16-18	32	14	20	10	40	on request
06212-4A315X40	L	light grey RAL 7035	5/16-18	32	14	20	10	40	on request
06212-4A316X40	L	traffic red RAL 3020	5/16-18	32	14	20	10	40	on request
06212-4A317X40	L	colza yellow RAL 1021	5/16-18	32	14	20	10	40	on request
06212-4A3X20	L	black grey RAL 7021	5/16-18	40	18	25	13	20	on request
06212-4A35X20	L	light grey RAL 7035	5/16-18	40	18	25	13	20	on request
06212-4A36X20	L	traffic red RAL 3020	5/16-18	40	18	25	13	20	on request
06212-4A37X20	L	colza yellow RAL 1021	5/16-18	40	18	25	13	20	on request
06212-4A3X40	L	black grey RAL 7021	5/16-18	40	18	25	13	40	on request
06212-4A35X40	L	light grey RAL 7035	5/16-18	40	18	25	13	40	on request
06212-4A36X40	L	traffic red RAL 3020	5/16-18	40	18	25	13	40	on request
06212-4A37X40	L	colza yellow RAL 1021	5/16-18	40	18	25	13	40	on request
06212-4A41X20	L	black grey RAL 7021	3/8-16	40	18	25	13	20	on request
06212-4A415X20	L	light grey RAL 7035	3/8-16	40	18	25	13	20	on request
06212-4A416X20	L	traffic red RAL 3020	3/8-16	40	18	25	13	20	on request
06212-4A417X20	L	colza yellow RAL 1021	3/8-16	40	18	25	13	20	on request
06212-4A41X40	L	black grey RAL 7021	3/8-16	40	18	25	13	40	on request
06212-4A415X40	L	light grey RAL 7035	3/8-16	40	18	25	13	40	on request
06212-4A416X40	L	traffic red RAL 3020	3/8-16	40	18	25	13	40	on request
06212-4A417X40	L	colza yellow RAL 1021	3/8-16	40	18	25	13	40	on request
06212-4A4X20	L	black grey RAL 7021	3/8-16	50	22	32	17	20	on request
06212-4A45X20	L	light grey RAL 7035	3/8-16	50	22	32	17	20	on request
06212-4A46X20	L	traffic red RAL 3020	3/8-16	50	22	32	17	20	on request
06212-4A47X20	L	colza yellow RAL 1021	3/8-16	50	22	32	17	20	on request
06212-4A4X40	L	black grey RAL 7021	3/8-16	50	22	32	17	40	on request
06212-4A45X40	L	light grey RAL 7035	3/8-16	50	22	32	17	40	on request
06212-4A46X40	L	traffic red RAL 3020	3/8-16	50	22	32	17	40	on request
06212-4A47X40	L	colza yellow RAL 1021	3/8-16	50	22	32	17	40	on request
06212-4A51X30	L	black grey RAL 7021	1/2-13	50	22	32	17	30	on request
06212-4A515X30	L	light grey RAL 7035	1/2-13	50	22	32	17	30	on request
06212-4A516X30	L	traffic red RAL 3020	1/2-13	50	22	32	17	30	on request
06212-4A517X30	L	colza yellow RAL 1021	1/2-13	50	22	32	17	30	on request
06212-4A51X60	L	black grey RAL 7021	1/2-13	50	22	32	17	60	on request
06212-4A515X60	L	light grey RAL 7035	1/2-13	50	22	32	17	60	on request
06212-4A516X60	L	traffic red RAL 3020	1/2-13	50	22	32	17	60	on request
06212-4A517X60	L	colza yellow RAL 1021	1/2-13	50	22	32	17	60	on request
06212-4A5X30	L	black grey RAL 7021	1/2-13	63	26	40	21	30	on request
06212-4A55X30	L	light grey RAL 7035	1/2-13	63	26	40	21	30	on request
06212-4A56X30	L	traffic red RAL 3020	1/2-13	63	26	40	21	30	on request
06212-4A57X30	L	colza yellow RAL 1021	1/2-13	63	26	40	21	30	on request
06212-4A5X60	L	black grey RAL 7021	1/2-13	63	26	40	21	60	on request
06212-4A55X60	L	light grey RAL 7035	1/2-13	63	26	40	21	60	on request
06212-4A56X60	L	traffic red RAL 3020	1/2-13	63	26	40	21	60	on request
06212-4A57X60	L	colza yellow RAL 1021	1/2-13	63	26	40	21	60	on request
