        Star grips, stainless steel, similar to DIN 6336, inch

Item description/product images

Show/filter all items

DescriptionMaterial:

Stainless steel 1.4308.
Grub screw stainless steel 1.4305.
Pin stainless steel 1.4310.

Version:Ground and polished or blasted.
Grub screw and pin bright.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.Drawing reference:

Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06194 inch Star grips, stainless steel, similar to DIN 6336, inch

180 kB

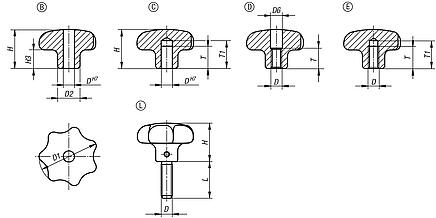

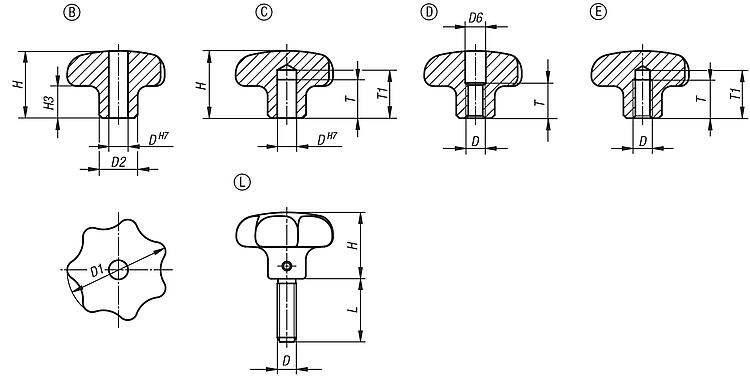

Drawings (total overview)

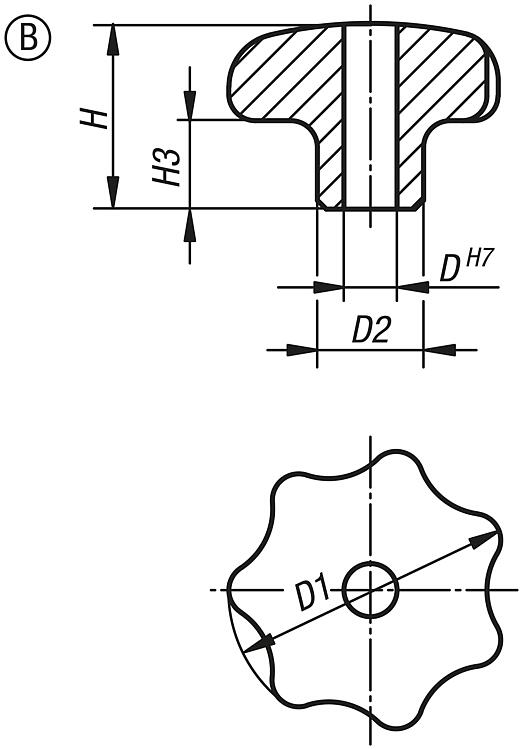

Star grips stainless steel, similar to DIN 6336, Form B, drilled through, inch

More information

Drawings

Star grips stainless steel, similar to DIN 6336, Form B, drilled through, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	Price
06194-232CM2	B	polished	0,25	32	12	21	10	on request
06194-240CN2	B	polished	0,312	40	14	26	13	on request
06194-250CO2	B	polished	0,375	50	18	34	17	on request
06194-263CP2	B	polished	0,5	63	20	42	21	on request

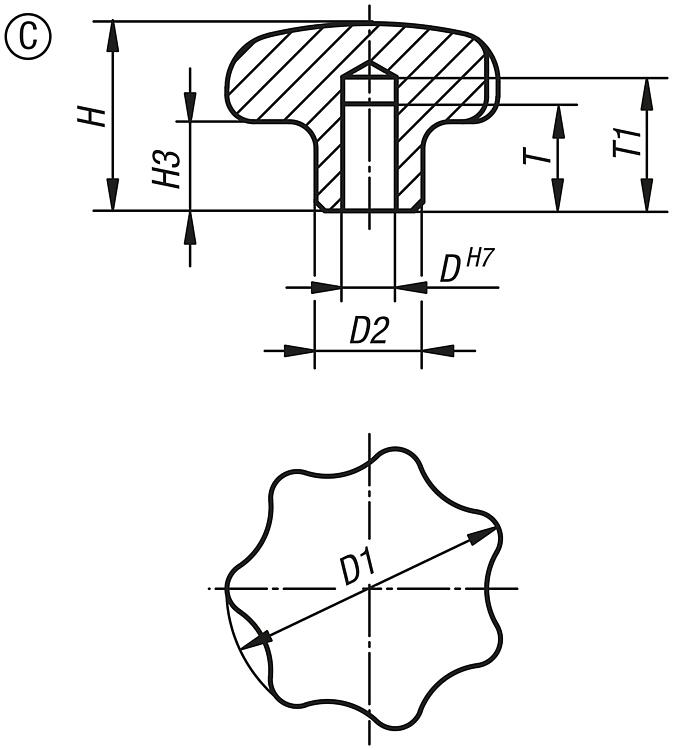

Star grips, stainless steel, similar to DIN 6336, Form C, blind hole, inch

More information

Drawings

Star grips, stainless steel, similar to DIN 6336, Form C, blind hole, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1	Price
06194-332CM2	C	polished	0,25	32	12	21	10	12	15	on request
06194-340CN2	C	polished	0,312	40	14	26	13	15	18	on request
06194-350CO2	C	polished	0,375	50	18	34	17	18	21	on request
06194-363CP2	C	polished	0,5	63	20	42	21	22	25	on request

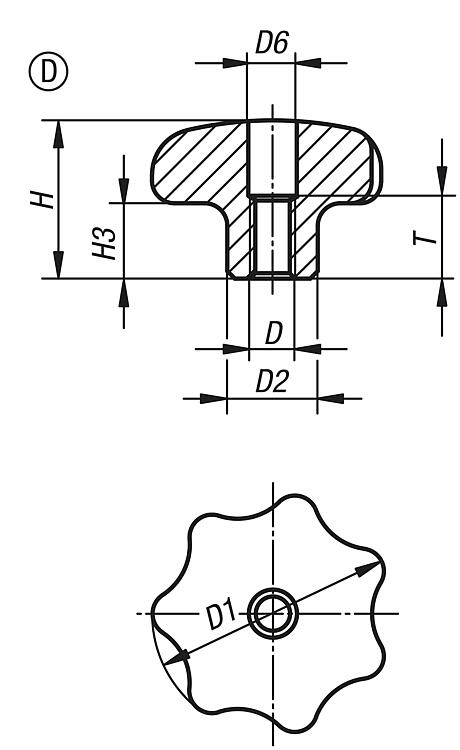

Star grips, stainless steel, similar to DIN 6336, Form D, thread countersunk, inch

More information

Drawings

Star grips, stainless steel, similar to DIN 6336, Form D, thread countersunk, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	D6	H	H3	T	Price
06194-432A22	D	polished	1/4-20	32	12	6,4	21	10	11	on request
06194-440A32	D	polished	5/16-18	40	14	8,4	26	13	14	on request
06194-450A42	D	polished	3/8-16	50	18	10,5	34	17	18	on request
06194-463A52	D	polished	1/2-13	63	20	13	42	21	22	on request
06194-432A23	D	blasted	1/4-20	32	12	6,4	21	10	11	on request
06194-440A33	D	blasted	5/16-18	40	14	8,4	26	13	14	on request
06194-450A43	D	blasted	3/8-16	50	18	10,5	34	17	18	on request

Star grips, stainless steel, similar to DIN 6336, Form E, blind tapped hole, inch

More information

Drawings

Star grips, stainless steel, similar to DIN 6336, Form E, blind tapped hole, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	T	T1	Price
06194-532A22	E	polished	1/4-20	32	12	21	10	12	15	on request
06194-540A32	E	polished	5/16-18	40	14	26	13	15	18	on request
06194-550A42	E	polished	3/8-16	50	18	34	17	18	21	on request
06194-563A52	E	polished	1/2-13	63	20	42	21	22	25	on request
06194-532A23	E	blasted	1/4-20	32	12	21	10	12	15	on request
06194-540A33	E	blasted	5/16-18	40	14	26	13	15	18	on request
06194-550A43	E	blasted	3/8-16	50	18	34	17	18	21	on request

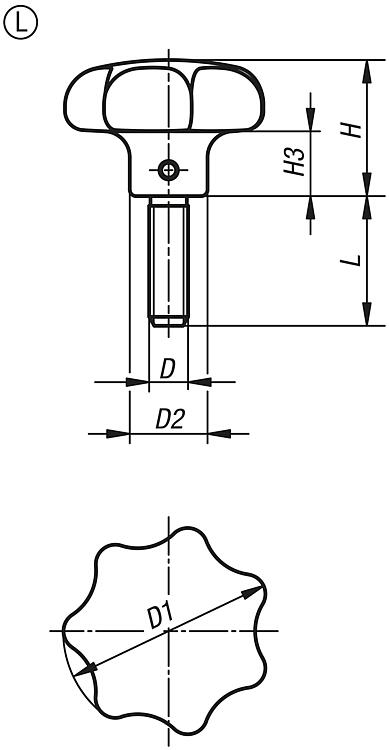

Star grips, stainless steel, similar to DIN 6336, Form L, with external thread, inch

More information

Drawings

Star grips, stainless steel, similar to DIN 6336, Form L, with external thread, inch

Item selection/filter

Order No.	Form	Surface finish body	D	D1	D2	H	H3	L	Price
06194-632A23X20	L	blasted	1/4-20	32	12	21	10	20	on request
06194-640A33X20	L	blasted	5/16-18	40	14	26	13	20	on request
06194-650A43X25	L	blasted	3/8-16	50	18	34	17	25	on request
06194-650A43X50	L	blasted	3/8-16	50	18	34	17	50	on request
