        Star grips grey cast iron, DIN 6336, inch

Item description/product images

Show/filter all items

DescriptionMaterial:Grey cast iron GJL 200.Version:Vibratory ground.
Bright.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.On request:Grips with a plastic coating.Drawing reference:

Form A: blank
Form B: drilled through
Form C: blind hole
Form D: tapped and counterbored
Form E: tapped blind hole

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06200 inch Star grips grey cast iron, DIN 6336, inch

270 kB

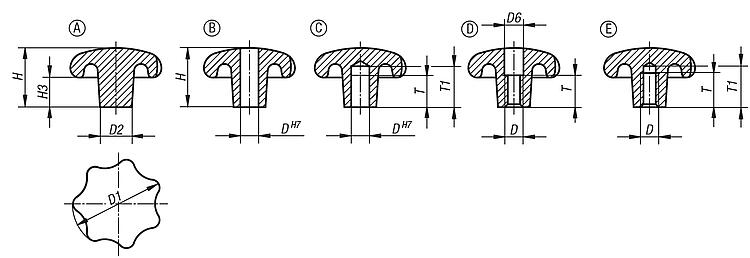

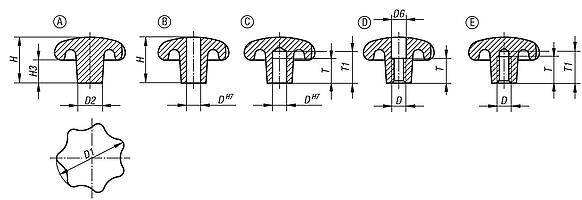

Drawings (total overview)

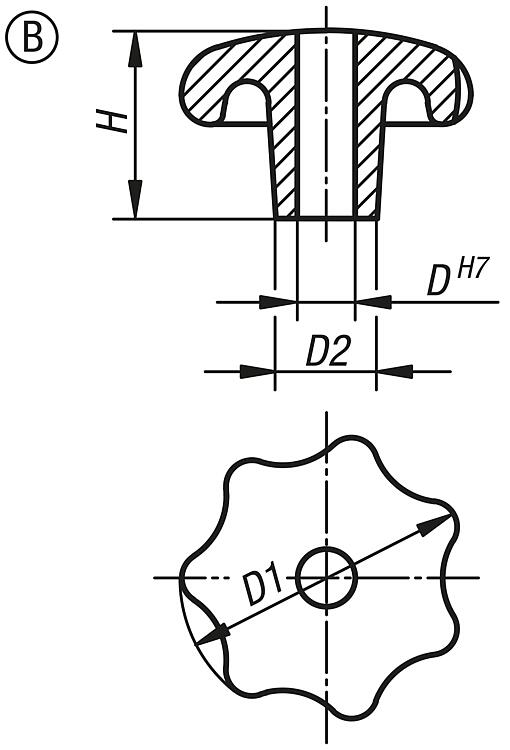

Star grips DIN 6336, grey cast iron, Form B, drilled through, inch

More information

Drawings

Star grips DIN 6336, grey cast iron, Form B, drilled through, inch

Item selection/filter

	B	tumbled	0,25 0,312 0,375 0,5 0,625	32 40 50 63 80	12 14 18 20 25	20 25 32 40 50				Reset
Order No.	Form	Surface finish body	D	D1	D2	H	CAD	Acc.	Price	Order
06200-2CM	B	tumbled	0,25	32	12	20			on request
06200-2CN	B	tumbled	0,312	40	14	25			on request
06200-2CO	B	tumbled	0,375	50	18	32			on request
06200-2CP	B	tumbled	0,5	63	20	40			on request
06200-2CQ	B	tumbled	0,625	80	25	50			on request

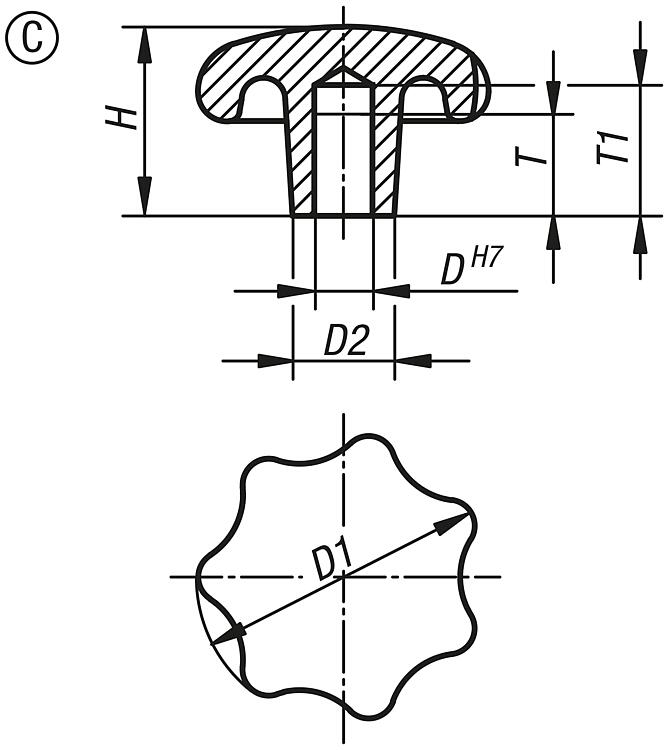

Star grips DIN 6336, grey cast iron, Form C, blind hole, inch

More information

Drawings

Star grips DIN 6336, grey cast iron, Form C, blind hole, inch

Item selection/filter

	C	tumbled	0,25 0,312 0,375 0,5 0,625	32 40 50 63 80	12 14 18 20 25	20 25 32 40 50	12 15 18 22 28	15 18 21 25 32				Reset
Order No.	Form	Surface finish body	D	D1	D2	H	T	T1	CAD	Acc.	Price	Order
06200-3CM	C	tumbled	0,25	32	12	20	12	15			on request
06200-3CN	C	tumbled	0,312	40	14	25	15	18			on request
06200-3CO	C	tumbled	0,375	50	18	32	18	21			on request
06200-3CP	C	tumbled	0,5	63	20	40	22	25			on request
06200-3CQ	C	tumbled	0,625	80	25	50	28	32			on request

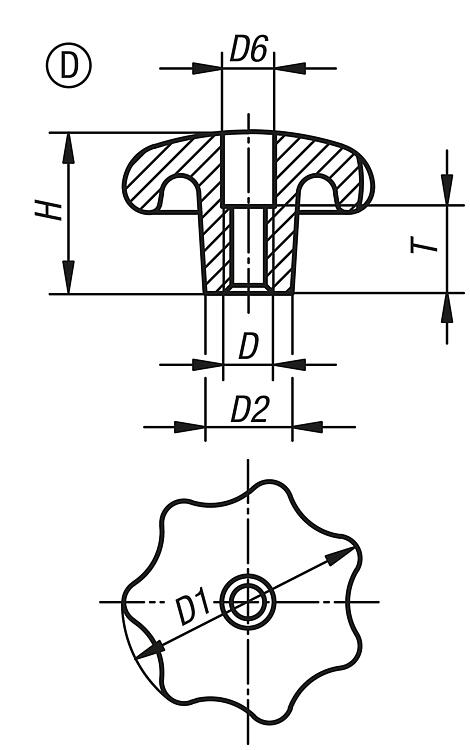

Star grips DIN 6336, grey cast iron, Form D, thread countersunk, inch

More information

Drawings

Star grips DIN 6336, grey cast iron, Form D, thread countersunk, inch

Item selection/filter

	D	tumbled	1/4-20 5/16-18 3/8-16 1/2-13 5/8-11	32 40 50 63 80	12 14 18 20 25	6,4 8,4 10,5 13 17	20 25 32 40 50	10 13 16 20				Reset
Order No.	Form	Surface finish body	D	D1	D2	D6	H	T	CAD	Acc.	Price	Order
06200-4A2	D	tumbled	1/4-20	32	12	6,4	20	10			on request
06200-4A3	D	tumbled	5/16-18	40	14	8,4	25	13			on request
06200-4A4	D	tumbled	3/8-16	50	18	10,5	32	16			on request
06200-4A5	D	tumbled	1/2-13	63	20	13	40	20			on request
06200-4A6	D	tumbled	5/8-11	80	25	17	50	20			on request

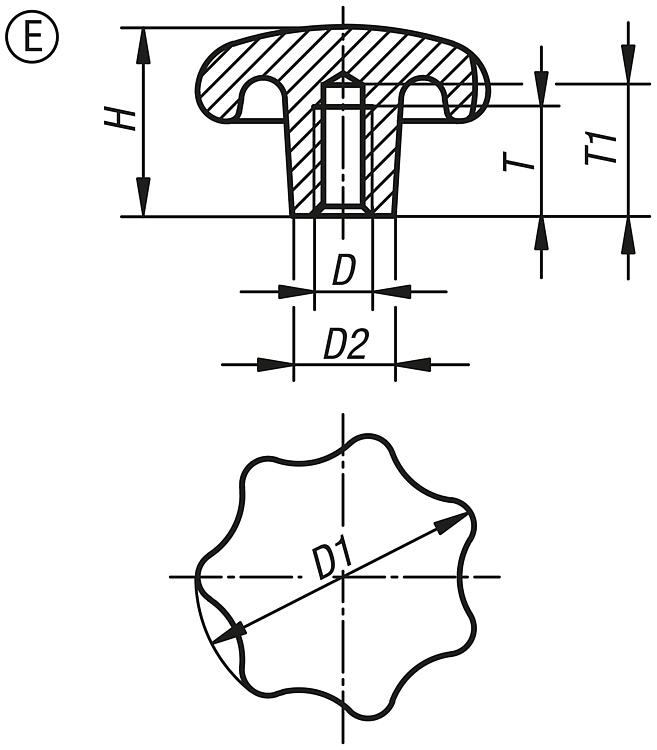

Star grips DIN 6336, grey cast iron, Form E, blind tapped hole, inch

More information

Drawings

Star grips DIN 6336, grey cast iron, Form E, blind tapped hole, inch

Item selection/filter

	E	tumbled	1/4-20 5/16-18 3/8-16 1/2-13 5/8-11	32 40 50 63 80	12 14 18 20 25	20 25 32 40 50	28 15 18 22	32 18 21 25				Reset
Order No.	Form	Surface finish body	D	D1	D2	H	T	T1	CAD	Acc.	Price	Order
06200-5A2	E	tumbled	1/4-20	32	12	20	28	32			on request
06200-5A3	E	tumbled	5/16-18	40	14	25	15	18			on request
06200-5A4	E	tumbled	3/8-16	50	18	32	18	21			on request
06200-5A5	E	tumbled	1/2-13	63	20	40	22	25			on request
06200-5A6	E	tumbled	5/8-11	80	25	50	28	32			on request
