        Star grips similar to DIN 6336, inch

Item description/product images

Show/filter all items

DescriptionMaterial:Black thermoplastic.
Bush and screw steel.Version:Bush and screw trivalent blue passivated.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.On request:Other colours or designs, such as company logo.Drawing reference:

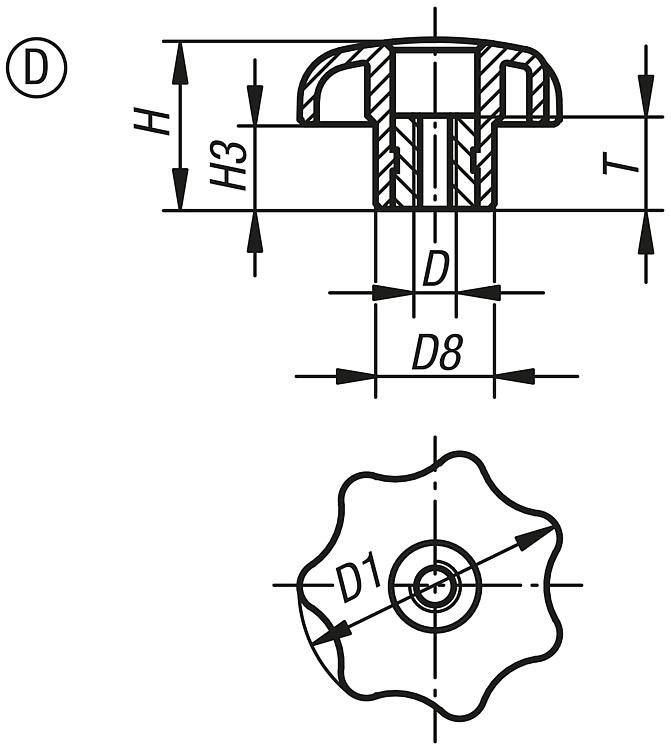

Form D: tapped bush without cap

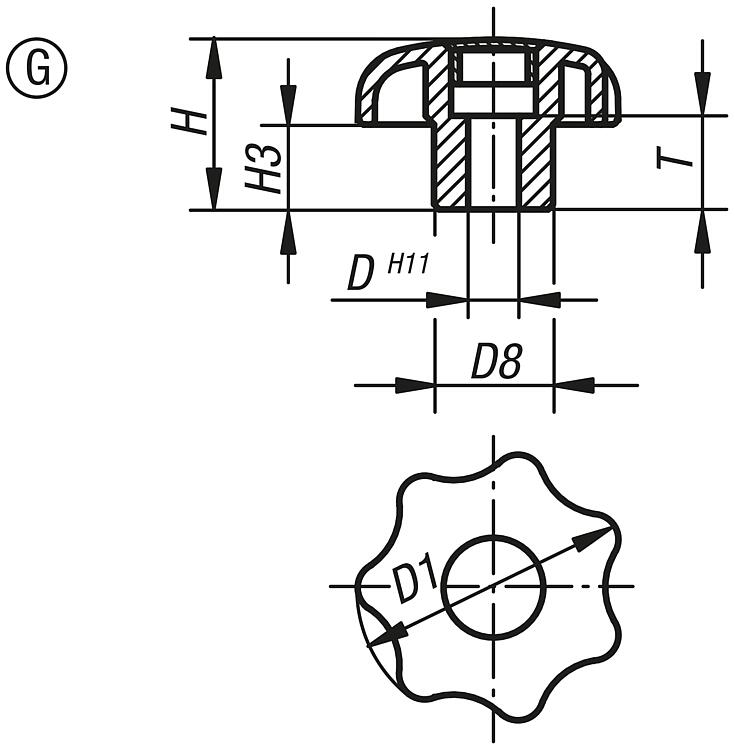

Form G: drilled hole, no bush, with cap
Form H: with reamed bush
Form K: tapped bush with cap

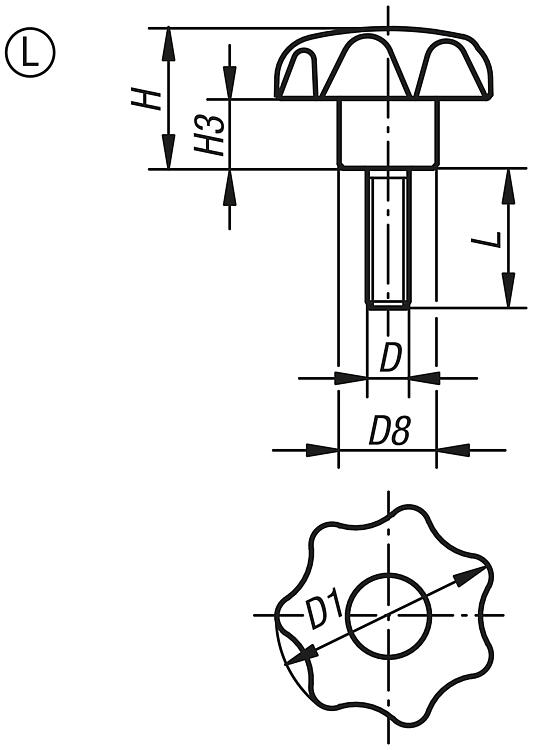

Form L: external thread

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06220 inch Star grips similar to DIN 6336, inch

247 kB

Drawings (total overview)

Star grips similar to DIN 6336, internal thread without cap, Form D, inch

More information

Drawings

Star grips similar to DIN 6336, internal thread without cap, Form D, inch

Item selection/filter

Order No.	Form	D	D1	D8	H	H3	T	Price
06220-5AE	D	8-32	25	12	16	8	10	on request
06220-5A1	D	10-32	25	12	16	8	10	on request
06220-5A21	D	1/4-20	25	12	16	8	10	on request
06220-5A11	D	10-32	32	14	20	10	10	on request
06220-5A2	D	1/4-20	32	14	20	10	10	on request
06220-5A3	D	5/16-18	40	18	25	13	14	on request
06220-5A41	D	3/8-16	40	18	25	13	14	on request
06220-5A31	D	5/16-18	50	22	32	17	14	on request
06220-5A4	D	3/8-16	50	22	32	17	14	on request
06220-5A51	D	1/2-13	50	22	32	17	18	on request
06220-5A42	D	3/8-16	63	26	40	21	14	on request
06220-5A5	D	1/2-13	63	26	40	21	18	on request
06220-5A6	D	5/8-11	63	26	40	21	18	on request

Star grips similar to DIN 6336, without bush, with reamed hole, Form G, inch

More information

Drawings

Star grips similar to DIN 6336, without bush, with reamed hole, Form G, inch

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	T	Price
06220-3CL	G	jet black	0,188	25	12	16	8	10	on request
06220-3CL5	G	light grey RAL 7035	0,188	25	12	16	8	10	on request
06220-3CL6	G	traffic red RAL 3020	0,188	25	12	16	8	10	on request
06220-3CL7	G	colza yellow RAL 1021	0,188	25	12	16	8	10	on request
06220-3CM	G	jet black	0,25	32	14	20	10	10	on request
06220-3CM5	G	light grey RAL 7035	0,25	32	14	20	10	10	on request
06220-3CM6	G	traffic red RAL 3020	0,25	32	14	20	10	10	on request
06220-3CM7	G	colza yellow RAL 1021	0,25	32	14	20	10	10	on request
06220-3CN	G	jet black	0,312	40	18	25	13	14	on request
06220-3CN5	G	light grey RAL 7035	0,312	40	18	25	13	14	on request
06220-3CN6	G	traffic red RAL 3020	0,312	40	18	25	13	14	on request
06220-3CN7	G	colza yellow RAL 1021	0,312	40	18	25	13	14	on request
06220-3CO	G	jet black	0,375	50	22	32	17	14	on request
06220-3CO5	G	light grey RAL 7035	0,375	50	22	32	17	14	on request
06220-3CO6	G	traffic red RAL 3020	0,375	50	22	32	17	14	on request
06220-3CO7	G	colza yellow RAL 1021	0,375	50	22	32	17	14	on request
06220-3CP	G	jet black	0,5	63	26	40	21	18	on request
06220-3CP5	G	light grey RAL 7035	0,5	63	26	40	21	18	on request
06220-3CP6	G	traffic red RAL 3020	0,5	63	26	40	21	18	on request
06220-3CP7	G	colza yellow RAL 1021	0,5	63	26	40	21	18	on request

Star grips similar to DIN 6336, with reamed bush, Form H, inch

More information

Drawings

Star grips similar to DIN 6336, with reamed bush, Form H, inch

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	T	Price
06220-1CL	H	jet black	0,188	25	12	16	8	10	on request
06220-1CL5	H	light grey RAL 7035	0,188	25	12	16	8	10	on request
06220-1CL6	H	traffic red RAL 3020	0,188	25	12	16	8	10	on request
06220-1CL7	H	colza yellow RAL 1021	0,188	25	12	16	8	10	on request
06220-1CM	H	jet black	0,25	32	14	20	10	10	on request
06220-1CM5	H	light grey RAL 7035	0,25	32	14	20	10	10	on request
06220-1CM6	H	traffic red RAL 3020	0,25	32	14	20	10	10	on request
06220-1CM7	H	colza yellow RAL 1021	0,25	32	14	20	10	10	on request
06220-1CN	H	jet black	0,312	40	18	25	13	14	on request
06220-1CN5	H	light grey RAL 7035	0,312	40	18	25	13	14	on request
06220-1CN6	H	traffic red RAL 3020	0,312	40	18	25	13	14	on request
06220-1CN7	H	colza yellow RAL 1021	0,312	40	18	25	13	14	on request
06220-1CO	H	jet black	0,375	50	22	32	17	14	on request
06220-1CO5	H	light grey RAL 7035	0,375	50	22	32	17	14	on request
06220-1CO6	H	traffic red RAL 3020	0,375	50	22	32	17	14	on request
06220-1CO7	H	colza yellow RAL 1021	0,375	50	22	32	17	14	on request
06220-1CO1	H	jet black	0,375	63	26	40	21	14	on request
06220-1CO15	H	light grey RAL 7035	0,375	63	26	40	21	14	on request
06220-1CO16	H	traffic red RAL 3020	0,375	63	26	40	21	14	on request
06220-1CO17	H	colza yellow RAL 1021	0,375	63	26	40	21	14	on request
06220-1CP	H	jet black	0,5	63	26	40	21	18	on request
06220-1CP5	H	light grey RAL 7035	0,5	63	26	40	21	18	on request
06220-1CP6	H	traffic red RAL 3020	0,5	63	26	40	21	18	on request
06220-1CP7	H	colza yellow RAL 1021	0,5	63	26	40	21	18	on request

Star grips similar to DIN 6336, internal thread with cap, Form K, inch

More information

Drawings

Star grips similar to DIN 6336, internal thread with cap, Form K, inch

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	T	Price
06220-2AE	K	jet black	8-32	25	12	16	8	10	on request
06220-2AE5	K	light grey RAL 7035	8-32	25	12	16	8	10	on request
06220-2AE6	K	traffic red RAL 3020	8-32	25	12	16	8	10	on request
06220-2AE7	K	colza yellow RAL 1021	8-32	25	12	16	8	10	on request
06220-2A1	K	jet black	10-32	25	12	16	8	10	on request
06220-2A15	K	light grey RAL 7035	10-32	25	12	16	8	10	on request
06220-2A16	K	traffic red RAL 3020	10-32	25	12	16	8	10	on request
06220-2A17	K	colza yellow RAL 1021	10-32	25	12	16	8	10	on request
06220-2A21	K	jet black	1/4-20	25	12	16	8	10	on request
06220-2A215	K	light grey RAL 7035	1/4-20	25	12	16	8	10	on request
06220-2A216	K	traffic red RAL 3020	1/4-20	25	12	16	8	10	on request
06220-2A217	K	colza yellow RAL 1021	1/4-20	25	12	16	8	10	on request
06220-2A11	K	jet black	10-32	32	14	20	10	10	on request
06220-2A115	K	light grey RAL 7035	10-32	32	14	20	10	10	on request
06220-2A116	K	traffic red RAL 3020	10-32	32	14	20	10	10	on request
06220-2A117	K	colza yellow RAL 1021	10-32	32	14	20	10	10	on request
06220-2A2	K	jet black	1/4-20	32	14	20	10	10	on request
06220-2A25	K	light grey RAL 7035	1/4-20	32	14	20	10	10	on request
06220-2A26	K	traffic red RAL 3020	1/4-20	32	14	20	10	10	on request
06220-2A27	K	colza yellow RAL 1021	1/4-20	32	14	20	10	10	on request
06220-2A3	K	jet black	5/16-18	40	18	25	13	14	on request
06220-2A35	K	light grey RAL 7035	5/16-18	40	18	25	13	14	on request
06220-2A36	K	traffic red RAL 3020	5/16-18	40	18	25	13	14	on request
06220-2A37	K	colza yellow RAL 1021	5/16-18	40	18	25	13	14	on request
06220-2A41	K	jet black	3/8-16	40	18	25	13	14	on request
06220-2A415	K	light grey RAL 7035	3/8-16	40	18	25	13	14	on request
06220-2A416	K	traffic red RAL 3020	3/8-16	40	18	25	13	14	on request
06220-2A417	K	colza yellow RAL 1021	3/8-16	40	18	25	13	14	on request
06220-2A31	K	jet black	5/16-18	50	22	32	17	14	on request
06220-2A315	K	light grey RAL 7035	5/16-18	50	22	32	17	14	on request
06220-2A316	K	traffic red RAL 3020	5/16-18	50	22	32	17	14	on request
06220-2A317	K	colza yellow RAL 1021	5/16-18	50	22	32	17	14	on request
06220-2A4	K	jet black	3/8-16	50	22	32	17	14	on request
06220-2A45	K	light grey RAL 7035	3/8-16	50	22	32	17	14	on request
06220-2A46	K	traffic red RAL 3020	3/8-16	50	22	32	17	14	on request
06220-2A47	K	colza yellow RAL 1021	3/8-16	50	22	32	17	14	on request
06220-2A51	K	jet black	1/2-13	50	22	32	17	18	on request
06220-2A515	K	light grey RAL 7035	1/2-13	50	22	32	17	18	on request
06220-2A516	K	traffic red RAL 3020	1/2-13	50	22	32	17	18	on request
06220-2A517	K	colza yellow RAL 1021	1/2-13	50	22	32	17	18	on request
06220-2A42	K	jet black	3/8-16	63	26	40	21	14	on request
06220-2A425	K	light grey RAL 7035	3/8-16	63	26	40	21	14	on request
06220-2A426	K	traffic red RAL 3020	3/8-16	63	26	40	21	14	on request
06220-2A427	K	colza yellow RAL 1021	3/8-16	63	26	40	21	14	on request
06220-2A5	K	jet black	1/2-13	63	26	40	21	18	on request
06220-2A55	K	light grey RAL 7035	1/2-13	63	26	40	21	18	on request
06220-2A56	K	traffic red RAL 3020	1/2-13	63	26	40	21	18	on request
06220-2A57	K	colza yellow RAL 1021	1/2-13	63	26	40	21	18	on request
06220-2A6	K	jet black	5/8-11	63	26	40	21	18	on request
06220-2A65	K	light grey RAL 7035	5/8-11	63	26	40	21	18	on request
06220-2A66	K	traffic red RAL 3020	5/8-11	63	26	40	21	18	on request
06220-2A67	K	colza yellow RAL 1021	5/8-11	63	26	40	21	18	on request

Star grips similar to DIN 6336 with external thread, Form L, inch

More information

Drawings

Star grips similar to DIN 6336 with external thread, Form L, inch

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	L	Price
06220-4A517X60	L	colza yellow RAL 1021	1/2-13	63	26	40	21	60	on request
06220-4A51X60	L	jet black	1/2-13	63	26	40	21	60	on request
06220-4A516X60	L	traffic red RAL 3020	1/2-13	63	26	40	21	60	on request
06220-4A515X60	L	light grey RAL 7035	1/2-13	63	26	40	21	60	on request
06220-4A1X10	L	jet black	10-32	25	12	16	8	10	on request
06220-4A15X10	L	light grey RAL 7035	10-32	25	12	16	8	10	on request
06220-4A16X10	L	traffic red RAL 3020	10-32	25	12	16	8	10	on request
06220-4A17X10	L	colza yellow RAL 1021	10-32	25	12	16	8	10	on request
06220-4A1X20	L	jet black	10-32	25	12	16	8	20	on request
06220-4A15X20	L	light grey RAL 7035	10-32	25	12	16	8	20	on request
06220-4A16X20	L	traffic red RAL 3020	10-32	25	12	16	8	20	on request
06220-4A17X20	L	colza yellow RAL 1021	10-32	25	12	16	8	20	on request
06220-4A2X20	L	jet black	1/4-20	25	12	16	8	20	on request
06220-4A25X20	L	light grey RAL 7035	1/4-20	25	12	16	8	20	on request
06220-4A26X20	L	traffic red RAL 3020	1/4-20	25	12	16	8	20	on request
06220-4A27X20	L	colza yellow RAL 1021	1/4-20	25	12	16	8	20	on request
06220-4A2X30	L	jet black	1/4-20	25	12	16	8	30	on request
06220-4A25X30	L	light grey RAL 7035	1/4-20	25	12	16	8	30	on request
06220-4A26X30	L	traffic red RAL 3020	1/4-20	25	12	16	8	30	on request
06220-4A27X30	L	colza yellow RAL 1021	1/4-20	25	12	16	8	30	on request
06220-4A21X20	L	jet black	1/4-20	32	14	20	10	20	on request
06220-4A215X20	L	light grey RAL 7035	1/4-20	32	14	20	10	20	on request
06220-4A216X20	L	traffic red RAL 3020	1/4-20	32	14	20	10	20	on request
06220-4A217X20	L	colza yellow RAL 1021	1/4-20	32	14	20	10	20	on request
06220-4A21X30	L	jet black	1/4-20	32	14	20	10	30	on request
06220-4A215X30	L	light grey RAL 7035	1/4-20	32	14	20	10	30	on request
06220-4A216X30	L	traffic red RAL 3020	1/4-20	32	14	20	10	30	on request
06220-4A217X30	L	colza yellow RAL 1021	1/4-20	32	14	20	10	30	on request
06220-4A3X20	L	jet black	5/16-18	32	14	20	10	20	on request
06220-4A35X20	L	light grey RAL 7035	5/16-18	32	14	20	10	20	on request
06220-4A36X20	L	traffic red RAL 3020	5/16-18	32	14	20	10	20	on request
06220-4A37X20	L	colza yellow RAL 1021	5/16-18	32	14	20	10	20	on request
06220-4A3X40	L	jet black	5/16-18	32	14	20	10	40	on request
06220-4A35X40	L	light grey RAL 7035	5/16-18	32	14	20	10	40	on request
06220-4A36X40	L	traffic red RAL 3020	5/16-18	32	14	20	10	40	on request
06220-4A37X40	L	colza yellow RAL 1021	5/16-18	32	14	20	10	40	on request
06220-4A31X20	L	jet black	5/16-18	40	18	25	13	20	on request
06220-4A315X20	L	light grey RAL 7035	5/16-18	40	18	25	13	20	on request
06220-4A316X20	L	traffic red RAL 3020	5/16-18	40	18	25	13	20	on request
06220-4A317X20	L	colza yellow RAL 1021	5/16-18	40	18	25	13	20	on request
06220-4A31X40	L	jet black	5/16-18	40	18	25	13	40	on request
06220-4A315X40	L	light grey RAL 7035	5/16-18	40	18	25	13	40	on request
06220-4A316X40	L	traffic red RAL 3020	5/16-18	40	18	25	13	40	on request
06220-4A317X40	L	colza yellow RAL 1021	5/16-18	40	18	25	13	40	on request
06220-4A4X20	L	jet black	3/8-16	40	18	25	13	20	on request
06220-4A45X20	L	light grey RAL 7035	3/8-16	40	18	25	13	20	on request
06220-4A46X20	L	traffic red RAL 3020	3/8-16	40	18	25	13	20	on request
06220-4A47X20	L	colza yellow RAL 1021	3/8-16	40	18	25	13	20	on request
06220-4A4X40	L	jet black	3/8-16	40	18	25	13	40	on request
06220-4A45X40	L	light grey RAL 7035	3/8-16	40	18	25	13	40	on request
06220-4A46X40	L	traffic red RAL 3020	3/8-16	40	18	25	13	40	on request
06220-4A47X40	L	colza yellow RAL 1021	3/8-16	40	18	25	13	40	on request
06220-4A41X20	L	jet black	3/8-16	50	22	32	17	20	on request
06220-4A415X20	L	light grey RAL 7035	3/8-16	50	22	32	17	20	on request
06220-4A416X20	L	traffic red RAL 3020	3/8-16	50	22	32	17	20	on request
06220-4A417X20	L	colza yellow RAL 1021	3/8-16	50	22	32	17	20	on request
06220-4A41X40	L	jet black	3/8-16	50	22	32	17	40	on request
06220-4A415X40	L	light grey RAL 7035	3/8-16	50	22	32	17	40	on request
06220-4A416X40	L	traffic red RAL 3020	3/8-16	50	22	32	17	40	on request
06220-4A417X40	L	colza yellow RAL 1021	3/8-16	50	22	32	17	40	on request
06220-4A5X30	L	jet black	1/2-13	50	22	32	17	30	on request
06220-4A55X30	L	light grey RAL 7035	1/2-13	50	22	32	17	30	on request
06220-4A56X30	L	traffic red RAL 3020	1/2-13	50	22	32	17	30	on request
06220-4A57X30	L	colza yellow RAL 1021	1/2-13	50	22	32	17	30	on request
06220-4A5X60	L	jet black	1/2-13	50	22	32	17	60	on request
06220-4A55X60	L	light grey RAL 7035	1/2-13	50	22	32	17	60	on request
06220-4A56X60	L	traffic red RAL 3020	1/2-13	50	22	32	17	60	on request
06220-4A57X60	L	colza yellow RAL 1021	1/2-13	50	22	32	17	60	on request
06220-4A42X20	L	jet black	3/8-16	63	26	40	21	20	on request
06220-4A425X20	L	light grey RAL 7035	3/8-16	63	26	40	21	20	on request
06220-4A426X20	L	traffic red RAL 3020	3/8-16	63	26	40	21	20	on request
06220-4A427X20	L	colza yellow RAL 1021	3/8-16	63	26	40	21	20	on request
06220-4A42X40	L	jet black	3/8-16	63	26	40	21	40	on request
06220-4A425X40	L	light grey RAL 7035	3/8-16	63	26	40	21	40	on request
06220-4A426X40	L	traffic red RAL 3020	3/8-16	63	26	40	21	40	on request
06220-4A427X40	L	colza yellow RAL 1021	3/8-16	63	26	40	21	40	on request
06220-4A51X30	L	jet black	1/2-13	63	26	40	21	30	on request
06220-4A515X30	L	light grey RAL 7035	1/2-13	63	26	40	21	30	on request
06220-4A516X30	L	traffic red RAL 3020	1/2-13	63	26	40	21	30	on request
06220-4A517X30	L	colza yellow RAL 1021	1/2-13	63	26	40	21	30	on request
