        Star grips similar to DIN 6336, inch

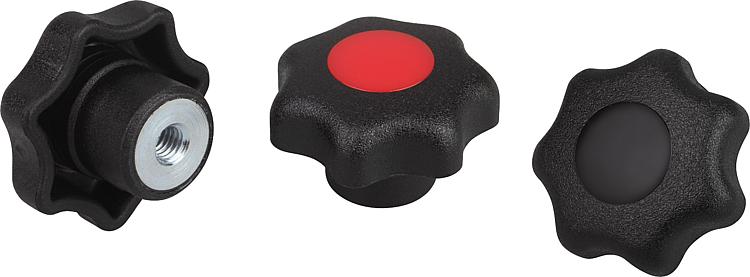

        Star grips similar to DIN 6336, internal thread with cap, Form K, inch

Item description/product images

DescriptionMaterial:Black thermoplastic.
Bush steel.Version:Bush trivalent blue passivatedOn request:Other colours or designs, such as company logo.Drawing reference:

Form K: tapped bush with cap

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06220_K inch Star grips similar to DIN 6336, internal thread with cap, Form K, inch

256 kB

Drawings

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	T	Price
06220-2AE	K	jet black	8-32	25	12	16	8	10	on request
06220-2AE5	K	light grey RAL 7035	8-32	25	12	16	8	10	on request
06220-2AE6	K	traffic red RAL 3020	8-32	25	12	16	8	10	on request
06220-2AE7	K	colza yellow RAL 1021	8-32	25	12	16	8	10	on request
06220-2A1	K	jet black	10-32	25	12	16	8	10	on request
06220-2A15	K	light grey RAL 7035	10-32	25	12	16	8	10	on request
06220-2A16	K	traffic red RAL 3020	10-32	25	12	16	8	10	on request
06220-2A17	K	colza yellow RAL 1021	10-32	25	12	16	8	10	on request
06220-2A21	K	jet black	1/4-20	25	12	16	8	10	on request
06220-2A215	K	light grey RAL 7035	1/4-20	25	12	16	8	10	on request
06220-2A216	K	traffic red RAL 3020	1/4-20	25	12	16	8	10	on request
06220-2A217	K	colza yellow RAL 1021	1/4-20	25	12	16	8	10	on request
06220-2A11	K	jet black	10-32	32	14	20	10	10	on request
06220-2A115	K	light grey RAL 7035	10-32	32	14	20	10	10	on request
06220-2A116	K	traffic red RAL 3020	10-32	32	14	20	10	10	on request
06220-2A117	K	colza yellow RAL 1021	10-32	32	14	20	10	10	on request
06220-2A2	K	jet black	1/4-20	32	14	20	10	10	on request
06220-2A25	K	light grey RAL 7035	1/4-20	32	14	20	10	10	on request
06220-2A26	K	traffic red RAL 3020	1/4-20	32	14	20	10	10	on request
06220-2A27	K	colza yellow RAL 1021	1/4-20	32	14	20	10	10	on request
06220-2A3	K	jet black	5/16-18	40	18	25	13	14	on request
06220-2A35	K	light grey RAL 7035	5/16-18	40	18	25	13	14	on request
06220-2A36	K	traffic red RAL 3020	5/16-18	40	18	25	13	14	on request
06220-2A37	K	colza yellow RAL 1021	5/16-18	40	18	25	13	14	on request
06220-2A41	K	jet black	3/8-16	40	18	25	13	14	on request
06220-2A415	K	light grey RAL 7035	3/8-16	40	18	25	13	14	on request
06220-2A416	K	traffic red RAL 3020	3/8-16	40	18	25	13	14	on request
06220-2A417	K	colza yellow RAL 1021	3/8-16	40	18	25	13	14	on request
06220-2A31	K	jet black	5/16-18	50	22	32	17	14	on request
06220-2A315	K	light grey RAL 7035	5/16-18	50	22	32	17	14	on request
06220-2A316	K	traffic red RAL 3020	5/16-18	50	22	32	17	14	on request
06220-2A317	K	colza yellow RAL 1021	5/16-18	50	22	32	17	14	on request
06220-2A4	K	jet black	3/8-16	50	22	32	17	14	on request
06220-2A45	K	light grey RAL 7035	3/8-16	50	22	32	17	14	on request
06220-2A46	K	traffic red RAL 3020	3/8-16	50	22	32	17	14	on request
06220-2A47	K	colza yellow RAL 1021	3/8-16	50	22	32	17	14	on request
06220-2A51	K	jet black	1/2-13	50	22	32	17	18	on request
06220-2A515	K	light grey RAL 7035	1/2-13	50	22	32	17	18	on request
06220-2A516	K	traffic red RAL 3020	1/2-13	50	22	32	17	18	on request
06220-2A517	K	colza yellow RAL 1021	1/2-13	50	22	32	17	18	on request
06220-2A42	K	jet black	3/8-16	63	26	40	21	14	on request
06220-2A425	K	light grey RAL 7035	3/8-16	63	26	40	21	14	on request
06220-2A426	K	traffic red RAL 3020	3/8-16	63	26	40	21	14	on request
06220-2A427	K	colza yellow RAL 1021	3/8-16	63	26	40	21	14	on request
06220-2A5	K	jet black	1/2-13	63	26	40	21	18	on request
06220-2A55	K	light grey RAL 7035	1/2-13	63	26	40	21	18	on request
06220-2A56	K	traffic red RAL 3020	1/2-13	63	26	40	21	18	on request
06220-2A57	K	colza yellow RAL 1021	1/2-13	63	26	40	21	18	on request
06220-2A6	K	jet black	5/8-11	63	26	40	21	18	on request
06220-2A65	K	light grey RAL 7035	5/8-11	63	26	40	21	18	on request
06220-2A66	K	traffic red RAL 3020	5/8-11	63	26	40	21	18	on request
06220-2A67	K	colza yellow RAL 1021	5/8-11	63	26	40	21	18	on request
