06220_H inchStar grips similar to DIN 6336, with reamed bush, Form H, inch |
go back |
|
Item description/product images |
|
|

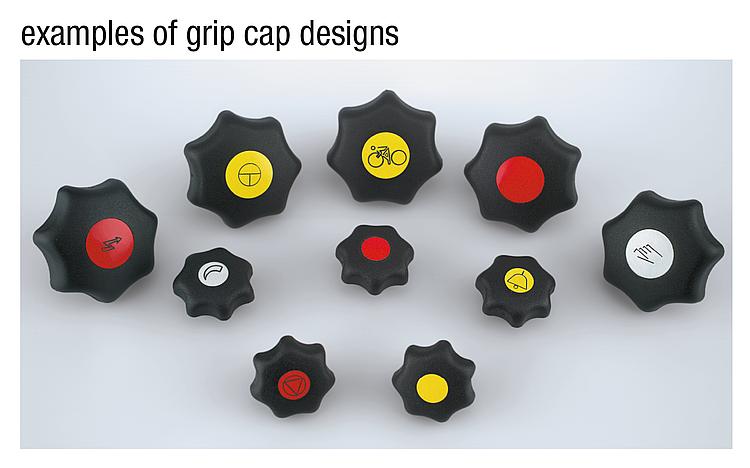

DescriptionMaterial:Black thermoplastic. Bush steel.Version:Bush trivalent blue passivatedOn request:Other colours or designs, such as company logo.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No. | Form | Colour Cap
| D | D1 | D8 | H | H3 | T | CAD | Acc. | Price | Order |
---|
06220-1CL | H | jet black | 0,188 | 25 | 12 | 16 | 8 | 10 |  | | on request | | 06220-1CL5 | H | light grey RAL 7035 | 0,188 | 25 | 12 | 16 | 8 | 10 |  | | on request | | 06220-1CL6 | H | traffic red RAL 3020 | 0,188 | 25 | 12 | 16 | 8 | 10 |  | | on request | | 06220-1CL7 | H | colza yellow RAL 1021 | 0,188 | 25 | 12 | 16 | 8 | 10 |  | | on request | | 06220-1CM | H | jet black | 0,25 | 32 | 14 | 20 | 10 | 10 |  | | on request | | 06220-1CM5 | H | light grey RAL 7035 | 0,25 | 32 | 14 | 20 | 10 | 10 |  | | on request | | 06220-1CM6 | H | traffic red RAL 3020 | 0,25 | 32 | 14 | 20 | 10 | 10 |  | | on request | | 06220-1CM7 | H | colza yellow RAL 1021 | 0,25 | 32 | 14 | 20 | 10 | 10 |  | | on request | | 06220-1CN | H | jet black | 0,312 | 40 | 18 | 25 | 13 | 14 |  | | on request | | 06220-1CN5 | H | light grey RAL 7035 | 0,312 | 40 | 18 | 25 | 13 | 14 |  | | on request | | 06220-1CN6 | H | traffic red RAL 3020 | 0,312 | 40 | 18 | 25 | 13 | 14 |  | | on request | | 06220-1CN7 | H | colza yellow RAL 1021 | 0,312 | 40 | 18 | 25 | 13 | 14 |  | | on request | | 06220-1CO | H | jet black | 0,375 | 50 | 22 | 32 | 17 | 14 |  | | on request | | 06220-1CO5 | H | light grey RAL 7035 | 0,375 | 50 | 22 | 32 | 17 | 14 |  | | on request | | 06220-1CO6 | H | traffic red RAL 3020 | 0,375 | 50 | 22 | 32 | 17 | 14 |  | | on request | | 06220-1CO7 | H | colza yellow RAL 1021 | 0,375 | 50 | 22 | 32 | 17 | 14 |  | | on request | | 06220-1CO1 | H | jet black | 0,375 | 63 | 26 | 40 | 21 | 14 |  | | on request | | 06220-1CO15 | H | light grey RAL 7035 | 0,375 | 63 | 26 | 40 | 21 | 14 |  | | on request | | 06220-1CO16 | H | traffic red RAL 3020 | 0,375 | 63 | 26 | 40 | 21 | 14 |  | | on request | | 06220-1CO17 | H | colza yellow RAL 1021 | 0,375 | 63 | 26 | 40 | 21 | 14 |  | | on request | | 06220-1CP | H | jet black | 0,5 | 63 | 26 | 40 | 21 | 18 |  | | on request | | 06220-1CP5 | H | light grey RAL 7035 | 0,5 | 63 | 26 | 40 | 21 | 18 |  | | on request | | 06220-1CP6 | H | traffic red RAL 3020 | 0,5 | 63 | 26 | 40 | 21 | 18 |  | | on request | | 06220-1CP7 | H | colza yellow RAL 1021 | 0,5 | 63 | 26 | 40 | 21 | 18 |  | | on request | |
