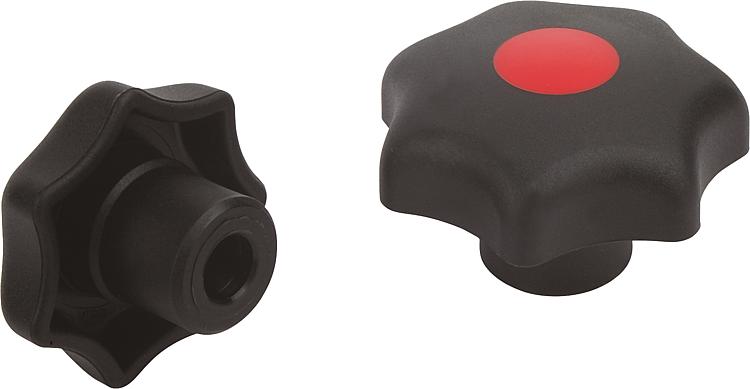

Star grips similar to DIN 6336, without bush, with reamed hole,...

Item description/product images

DescriptionMaterial:Black thermoplastic.On request:Other colours or designs, such as company logo.Drawing reference:

Form G: without bush

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Form	Colour Cap	D	D1	D8	H	H3	T	Price
06220-3CL	G	jet black	0,188	25	12	16	8	10	on request
06220-3CL5	G	light grey RAL 7035	0,188	25	12	16	8	10	on request
06220-3CL6	G	traffic red RAL 3020	0,188	25	12	16	8	10	on request
06220-3CL7	G	colza yellow RAL 1021	0,188	25	12	16	8	10	on request
06220-3CM	G	jet black	0,25	32	14	20	10	10	on request
06220-3CM5	G	light grey RAL 7035	0,25	32	14	20	10	10	on request
06220-3CM6	G	traffic red RAL 3020	0,25	32	14	20	10	10	on request
06220-3CM7	G	colza yellow RAL 1021	0,25	32	14	20	10	10	on request
06220-3CN	G	jet black	0,312	40	18	25	13	14	on request
06220-3CN5	G	light grey RAL 7035	0,312	40	18	25	13	14	on request
06220-3CN6	G	traffic red RAL 3020	0,312	40	18	25	13	14	on request
06220-3CN7	G	colza yellow RAL 1021	0,312	40	18	25	13	14	on request
06220-3CO	G	jet black	0,375	50	22	32	17	14	on request
06220-3CO5	G	light grey RAL 7035	0,375	50	22	32	17	14	on request
06220-3CO6	G	traffic red RAL 3020	0,375	50	22	32	17	14	on request
06220-3CO7	G	colza yellow RAL 1021	0,375	50	22	32	17	14	on request
06220-3CP	G	jet black	0,5	63	26	40	21	18	on request
06220-3CP5	G	light grey RAL 7035	0,5	63	26	40	21	18	on request
06220-3CP6	G	traffic red RAL 3020	0,5	63	26	40	21	18	on request
06220-3CP7	G	colza yellow RAL 1021	0,5	63	26	40	21	18	on request
