        Star grips similar to DIN 6336, inch

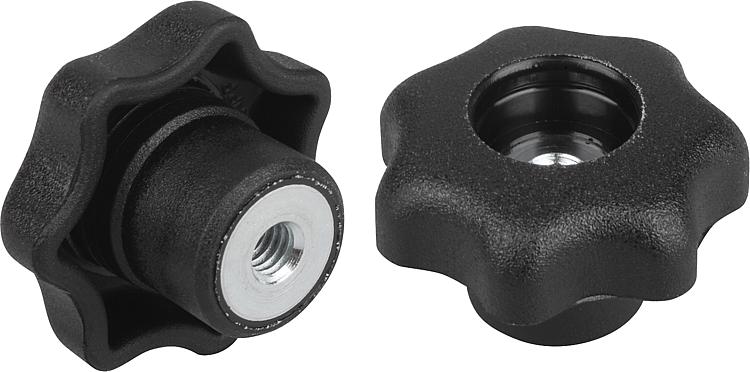

        Star grips similar to DIN 6336, internal thread without cap, Form D, inch

Item description/product images

DescriptionMaterial:Black thermoplastic.
Bush steel.Version:Bush trivalent blue passivatedOn request:Other colours or designs, such as company logo.Drawing reference:

Form D: tapped bush without cap

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06220_D inch Star grips similar to DIN 6336, internal thread without cap, Form D, inch

273 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D8	H	H3	T	Price
06220-5AE	D	8-32	25	12	16	8	10	on request
06220-5A1	D	10-32	25	12	16	8	10	on request
06220-5A21	D	1/4-20	25	12	16	8	10	on request
06220-5A11	D	10-32	32	14	20	10	10	on request
06220-5A2	D	1/4-20	32	14	20	10	10	on request
06220-5A3	D	5/16-18	40	18	25	13	14	on request
06220-5A41	D	3/8-16	40	18	25	13	14	on request
06220-5A31	D	5/16-18	50	22	32	17	14	on request
06220-5A4	D	3/8-16	50	22	32	17	14	on request
06220-5A51	D	1/2-13	50	22	32	17	18	on request
06220-5A42	D	3/8-16	63	26	40	21	14	on request
06220-5A5	D	1/2-13	63	26	40	21	18	on request
06220-5A6	D	5/8-11	63	26	40	21	18	on request
