        Star grips with safety cable similar to DIN 6336, inch

Item description/product images

Show/filter all items

DescriptionMaterial:Grip thermoplastic.
Bush and screw steel.
Safety cable elastic TPU.Version:Bush and screw bright.Note:Attach the safety cable to a base to make the star grip unlosable.
The star grip cannot be moved far from the object to which it belongs.Assembly:Do not stretch the band during assembly.
Make sure that the anchor is not too far from where the star grip is to be used.Accessory:The safety cable is also available as an accessory, see K0743.04190.Drawing reference:

Form KS: tapped bush, with cap
Form LS: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06220 inch Star grips with safety cable similar to DIN 6336, inch

405 kB

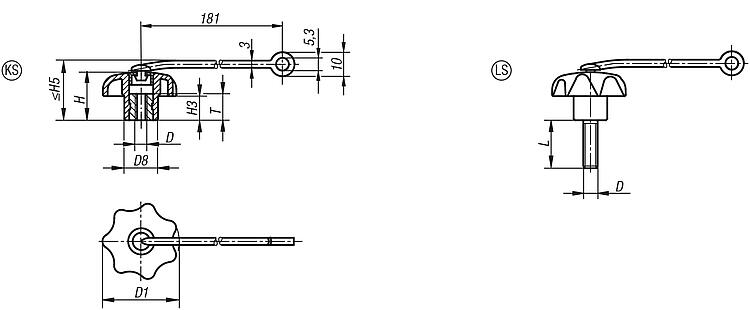

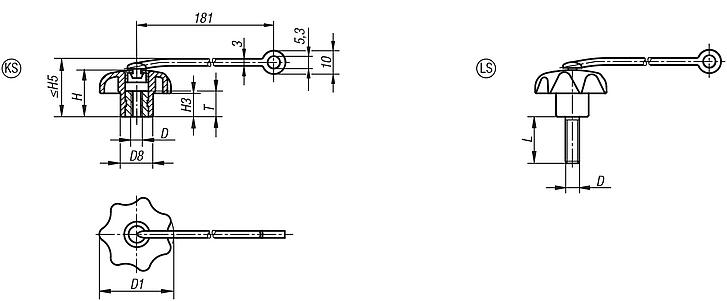

Drawings (total overview)

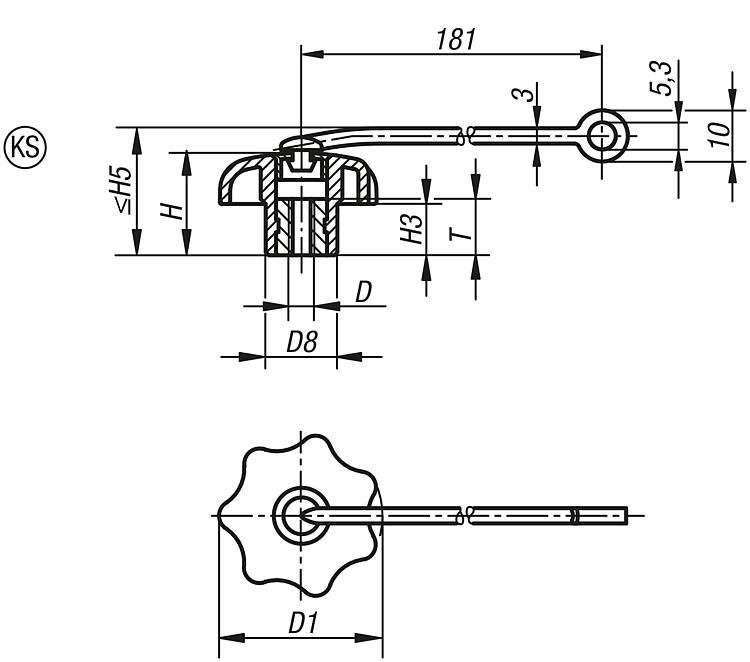

Star grips with safety cable similar to DIN 6336, internal thread, Form KS, inch

More information

Drawings

Star grips with safety cable similar to DIN 6336, internal thread, Form KS, inch

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	H5 max.	T	Price
06220-6AE	KS	black grey RAL 7021	8-32	25	12	16	8	22	10	on request
06220-6AE5	KS	light grey RAL 7035	8-32	25	12	16	8	22	10	on request
06220-6AE6	KS	traffic red RAL 3020	8-32	25	12	16	8	22	10	on request
06220-6AE7	KS	colza yellow RAL 1021	8-32	25	12	16	8	22	10	on request
06220-6A1	KS	black grey RAL 7021	10-32	25	12	16	8	22	10	on request
06220-6A15	KS	light grey RAL 7035	10-32	25	12	16	8	22	10	on request
06220-6A16	KS	traffic red RAL 3020	10-32	25	12	16	8	22	10	on request
06220-6A17	KS	colza yellow RAL 1021	10-32	25	12	16	8	22	10	on request
06220-6A21	KS	black grey RAL 7021	1/4-20	25	12	16	8	22	10	on request
06220-6A215	KS	light grey RAL 7035	1/4-20	25	12	16	8	22	10	on request
06220-6A216	KS	traffic red RAL 3020	1/4-20	25	12	16	8	22	10	on request
06220-6A217	KS	colza yellow RAL 1021	1/4-20	25	12	16	8	22	10	on request
06220-6A11	KS	black grey RAL 7021	10-32	32	14	20	10	26	10	on request
06220-6A115	KS	light grey RAL 7035	10-32	32	14	20	10	26	10	on request
06220-6A116	KS	traffic red RAL 3020	10-32	32	14	20	10	26	10	on request
06220-6A117	KS	colza yellow RAL 1021	10-32	32	14	20	10	26	10	on request
06220-6A2	KS	black grey RAL 7021	1/4-20	32	14	20	10	26	10	on request
06220-6A25	KS	light grey RAL 7035	1/4-20	32	14	20	10	26	10	on request
06220-6A26	KS	traffic red RAL 3020	1/4-20	32	14	20	10	26	10	on request
06220-6A27	KS	colza yellow RAL 1021	1/4-20	32	14	20	10	26	10	on request
06220-6A3	KS	black grey RAL 7021	5/16-18	40	18	25	13	31	14	on request
06220-6A35	KS	light grey RAL 7035	5/16-18	40	18	25	13	31	14	on request
06220-6A36	KS	traffic red RAL 3020	5/16-18	40	18	25	13	31	14	on request
06220-6A37	KS	colza yellow RAL 1021	5/16-18	40	18	25	13	31	14	on request
06220-6A41	KS	black grey RAL 7021	3/8-16	40	18	25	13	31	14	on request
06220-6A415	KS	light grey RAL 7035	3/8-16	40	18	25	13	31	14	on request
06220-6A416	KS	traffic red RAL 3020	3/8-16	40	18	25	13	31	14	on request
06220-6A417	KS	colza yellow RAL 1021	3/8-16	40	18	25	13	31	14	on request
06220-6A31	KS	black grey RAL 7021	5/16-18	50	22	32	17	38	14	on request
06220-6A315	KS	light grey RAL 7035	5/16-18	50	22	32	17	38	14	on request
06220-6A316	KS	traffic red RAL 3020	5/16-18	50	22	32	17	38	14	on request
06220-6A317	KS	colza yellow RAL 1021	5/16-18	50	22	32	17	38	14	on request
06220-6A4	KS	black grey RAL 7021	3/8-16	50	22	32	17	38	14	on request
06220-6A45	KS	light grey RAL 7035	3/8-16	50	22	32	17	38	14	on request
06220-6A46	KS	traffic red RAL 3020	3/8-16	50	22	32	17	38	14	on request
06220-6A47	KS	colza yellow RAL 1021	3/8-16	50	22	32	17	38	14	on request
06220-6A51	KS	black grey RAL 7021	1/2-13	50	22	32	17	38	18	on request
06220-6A515	KS	light grey RAL 7035	1/2-13	50	22	32	17	38	18	on request
06220-6A516	KS	traffic red RAL 3020	1/2-13	50	22	32	17	38	18	on request
06220-6A517	KS	colza yellow RAL 1021	1/2-13	50	22	32	17	38	18	on request
06220-6A42	KS	black grey RAL 7021	3/8-16	63	26	40	21	46	14	on request
06220-6A425	KS	light grey RAL 7035	3/8-16	63	26	40	21	46	14	on request
06220-6A426	KS	traffic red RAL 3020	3/8-16	63	26	40	21	46	14	on request
06220-6A427	KS	colza yellow RAL 1021	3/8-16	63	26	40	21	46	14	on request
06220-6A5	KS	black grey RAL 7021	1/2-13	63	26	40	21	46	18	on request
06220-6A55	KS	light grey RAL 7035	1/2-13	63	26	40	21	46	18	on request
06220-6A56	KS	traffic red RAL 3020	1/2-13	63	26	40	21	46	18	on request
06220-6A57	KS	colza yellow RAL 1021	1/2-13	63	26	40	21	46	18	on request
06220-6A6	KS	black grey RAL 7021	5/8-11	63	26	40	21	46	18	on request
06220-6A65	KS	light grey RAL 7035	5/8-11	63	26	40	21	46	18	on request
06220-6A66	KS	traffic red RAL 3020	5/8-11	63	26	40	21	46	18	on request
06220-6A67	KS	colza yellow RAL 1021	5/8-11	63	26	40	21	46	18	on request

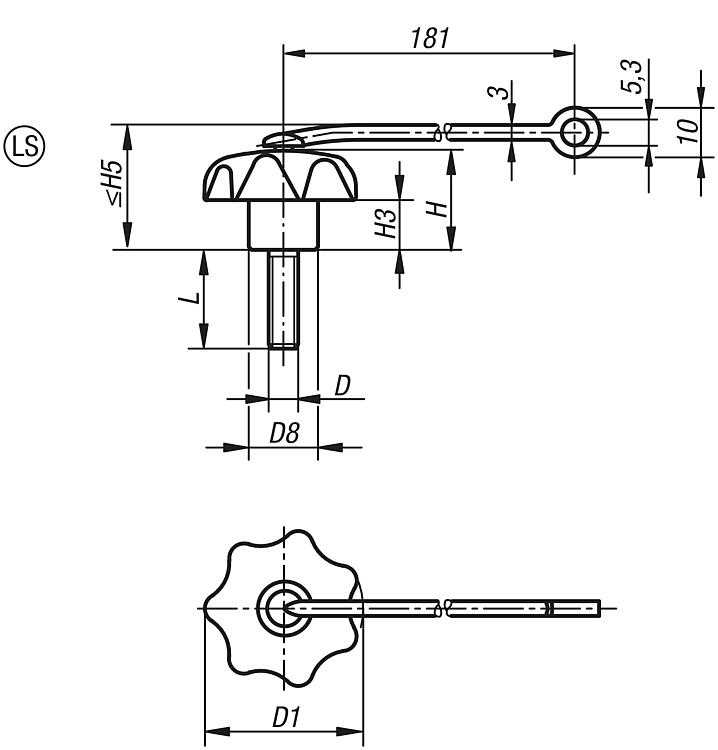

Star grips with safety cable similar to DIN 6336, external thread, Form LS, inch

More information

Drawings

Star grips with safety cable similar to DIN 6336, external thread, Form LS, inch

Item selection/filter

Order No.	Form	Colour Cap	D	D1	D8	H	H3	H5 max.	L	Price
06220-7A1X10	LS	black grey RAL 7021	10-32	25	12	16	8	22	10	on request
06220-7A15X10	LS	light grey RAL 7035	10-32	25	12	16	8	22	10	on request
06220-7A16X10	LS	traffic red RAL 3020	10-32	25	12	16	8	22	10	on request
06220-7A17X10	LS	colza yellow RAL 1021	10-32	25	12	16	8	22	10	on request
06220-7A1X20	LS	black grey RAL 7021	10-32	25	12	16	8	22	20	on request
06220-7A15X20	LS	light grey RAL 7035	10-32	25	12	16	8	22	20	on request
06220-7A16X20	LS	traffic red RAL 3020	10-32	25	12	16	8	22	20	on request
06220-7A17X20	LS	colza yellow RAL 1021	10-32	25	12	16	8	22	20	on request
06220-7A2X20	LS	black grey RAL 7021	1/4-20	25	12	16	8	22	20	on request
06220-7A25X20	LS	light grey RAL 7035	1/4-20	25	12	16	8	22	20	on request
06220-7A26X20	LS	traffic red RAL 3020	1/4-20	25	12	16	8	22	20	on request
06220-7A27X20	LS	colza yellow RAL 1021	1/4-20	25	12	16	8	22	20	on request
06220-7A2X30	LS	black grey RAL 7021	1/4-20	25	12	16	8	22	30	on request
06220-7A25X30	LS	light grey RAL 7035	1/4-20	25	12	16	8	22	30	on request
06220-7A26X30	LS	traffic red RAL 3020	1/4-20	25	12	16	8	22	30	on request
06220-7A27X30	LS	colza yellow RAL 1021	1/4-20	25	12	16	8	22	30	on request
06220-7A21X20	LS	black grey RAL 7021	1/4-20	32	14	20	10	26	20	on request
06220-7A215X20	LS	light grey RAL 7035	1/4-20	32	14	20	10	26	20	on request
06220-7A216X20	LS	traffic red RAL 3020	1/4-20	32	14	20	10	26	20	on request
06220-7A217X20	LS	colza yellow RAL 1021	1/4-20	32	14	20	10	26	20	on request
06220-7A21X30	LS	black grey RAL 7021	1/4-20	32	14	20	10	26	30	on request
06220-7A215X30	LS	light grey RAL 7035	1/4-20	32	14	20	10	26	30	on request
06220-7A216X30	LS	traffic red RAL 3020	1/4-20	32	14	20	10	26	30	on request
06220-7A217X30	LS	colza yellow RAL 1021	1/4-20	32	14	20	10	26	30	on request
06220-7A3X20	LS	black grey RAL 7021	5/16-18	32	14	20	10	26	20	on request
06220-7A35X20	LS	light grey RAL 7035	5/16-18	32	14	20	10	26	20	on request
06220-7A36X20	LS	traffic red RAL 3020	5/16-18	32	14	20	10	26	20	on request
06220-7A37X20	LS	colza yellow RAL 1021	5/16-18	32	14	20	10	26	20	on request
06220-7A3X40	LS	black grey RAL 7021	5/16-18	32	14	20	10	26	40	on request
06220-7A35X40	LS	light grey RAL 7035	5/16-18	32	14	20	10	26	40	on request
06220-7A36X40	LS	traffic red RAL 3020	5/16-18	32	14	20	10	26	40	on request
06220-7A37X40	LS	colza yellow RAL 1021	5/16-18	32	14	20	10	26	40	on request
06220-7A31X20	LS	black grey RAL 7021	5/16-18	40	18	25	13	31	20	on request
06220-7A315X20	LS	light grey RAL 7035	5/16-18	40	18	25	13	31	20	on request
06220-7A316X20	LS	traffic red RAL 3020	5/16-18	40	18	25	13	31	20	on request
06220-7A317X20	LS	colza yellow RAL 1021	5/16-18	40	18	25	13	31	20	on request
06220-7A31X40	LS	black grey RAL 7021	5/16-18	40	18	25	13	31	40	on request
06220-7A315X40	LS	light grey RAL 7035	5/16-18	40	18	25	13	31	40	on request
06220-7A316X40	LS	traffic red RAL 3020	5/16-18	40	18	25	13	31	40	on request
06220-7A317X40	LS	colza yellow RAL 1021	5/16-18	40	18	25	13	31	40	on request
06220-7A4X20	LS	black grey RAL 7021	3/8-16	40	18	25	13	31	20	on request
06220-7A45X20	LS	light grey RAL 7035	3/8-16	40	18	25	13	31	20	on request
06220-7A46X20	LS	traffic red RAL 3020	3/8-16	40	18	25	13	31	20	on request
06220-7A47X20	LS	colza yellow RAL 1021	3/8-16	40	18	25	13	31	20	on request
06220-7A4X40	LS	black grey RAL 7021	3/8-16	40	18	25	13	31	40	on request
06220-7A45X40	LS	light grey RAL 7035	3/8-16	40	18	25	13	31	40	on request
06220-7A46X40	LS	traffic red RAL 3020	3/8-16	40	18	25	13	31	40	on request
06220-7A47X40	LS	colza yellow RAL 1021	3/8-16	40	18	25	13	31	40	on request
06220-7A41X20	LS	black grey RAL 7021	3/8-16	50	22	32	17	38	20	on request
06220-7A415X20	LS	light grey RAL 7035	3/8-16	50	22	32	17	38	20	on request
06220-7A416X20	LS	traffic red RAL 3020	3/8-16	50	22	32	17	38	20	on request
06220-7A417X20	LS	colza yellow RAL 1021	3/8-16	50	22	32	17	38	20	on request
06220-7A41X40	LS	black grey RAL 7021	3/8-16	50	22	32	17	38	40	on request
06220-7A415X40	LS	light grey RAL 7035	3/8-16	50	22	32	17	38	40	on request
06220-7A416X40	LS	traffic red RAL 3020	3/8-16	50	22	32	17	38	40	on request
06220-7A417X40	LS	colza yellow RAL 1021	3/8-16	50	22	32	17	38	40	on request
06220-7A5X30	LS	black grey RAL 7021	1/2-13	50	22	32	17	38	30	on request
06220-7A55X30	LS	light grey RAL 7035	1/2-13	50	22	32	17	38	30	on request
06220-7A56X30	LS	traffic red RAL 3020	1/2-13	50	22	32	17	38	30	on request
06220-7A57X30	LS	colza yellow RAL 1021	1/2-13	50	22	32	17	38	30	on request
06220-7A5X60	LS	black grey RAL 7021	1/2-13	50	22	32	17	38	60	on request
06220-7A55X60	LS	light grey RAL 7035	1/2-13	50	22	32	17	38	60	on request
06220-7A56X60	LS	traffic red RAL 3020	1/2-13	50	22	32	17	38	60	on request
06220-7A57X60	LS	colza yellow RAL 1021	1/2-13	50	22	32	17	38	60	on request
06220-7A42X20	LS	black grey RAL 7021	3/8-16	63	26	40	21	46	20	on request
06220-7A425X20	LS	light grey RAL 7035	3/8-16	63	26	40	21	46	20	on request
06220-7A426X20	LS	traffic red RAL 3020	3/8-16	63	26	40	21	46	20	on request
06220-7A427X20	LS	colza yellow RAL 1021	3/8-16	63	26	40	21	46	20	on request
06220-7A42X40	LS	black grey RAL 7021	3/8-16	63	26	40	21	46	40	on request
06220-7A425X40	LS	light grey RAL 7035	3/8-16	63	26	40	21	46	40	on request
06220-7A426X40	LS	traffic red RAL 3020	3/8-16	63	26	40	21	46	40	on request
06220-7A427X40	LS	colza yellow RAL 1021	3/8-16	63	26	40	21	46	40	on request
06220-7A51X30	LS	black grey RAL 7021	1/2-13	63	26	40	21	46	30	on request
06220-7A515X30	LS	light grey RAL 7035	1/2-13	63	26	40	21	46	30	on request
06220-7A516X30	LS	traffic red RAL 3020	1/2-13	63	26	40	21	46	30	on request
06220-7A517X30	LS	colza yellow RAL 1021	1/2-13	63	26	40	21	46	30	on request
06220-7A51X60	LS	black grey RAL 7021	1/2-13	63	26	40	21	46	60	on request
06220-7A515X60	LS	light grey RAL 7035	1/2-13	63	26	40	21	46	60	on request
06220-7A516X60	LS	traffic red RAL 3020	1/2-13	63	26	40	21	46	60	on request
06220-7A517X60	LS	colza yellow RAL 1021	1/2-13	63	26	40	21	46	60	on request
