        Star grips, plastic with safety function, inch

Item description/product images

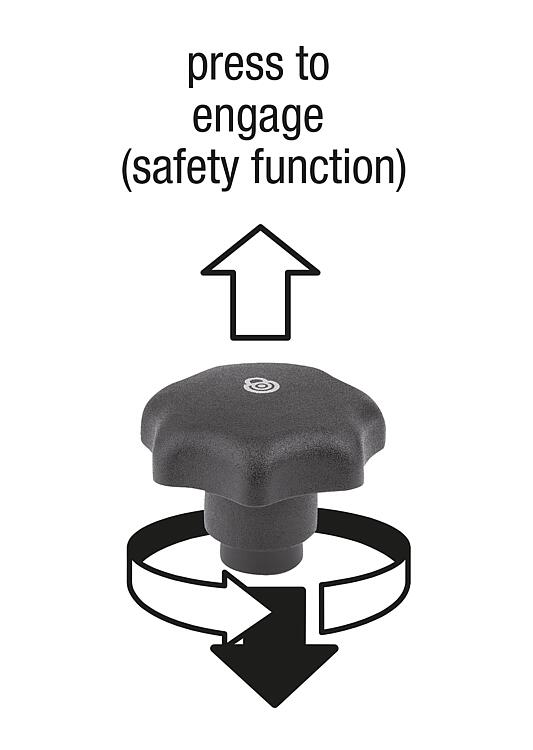

DescriptionProduct description:Star grips with safety function prevent changes to the clamping point by accidental opening or closing.
In its initial state, the grip can turn freely and has no connection to the clamping point. It is only when the grip is pushed down that the toothing engages and the clamp can be loosened or tightened.
A spring returns the grip to the start position upon release.Material:Star grip and insert made from reinforced thermoplastic.
Bush and screw made from steel or stainless steel.Version:Steel trivalent blue passivated.
Stainless steel, bright.Advantages:Protection against accidental opening or closing.On request:Special versions.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06224 inch Star grips, plastic with safety function, inch

309 kB

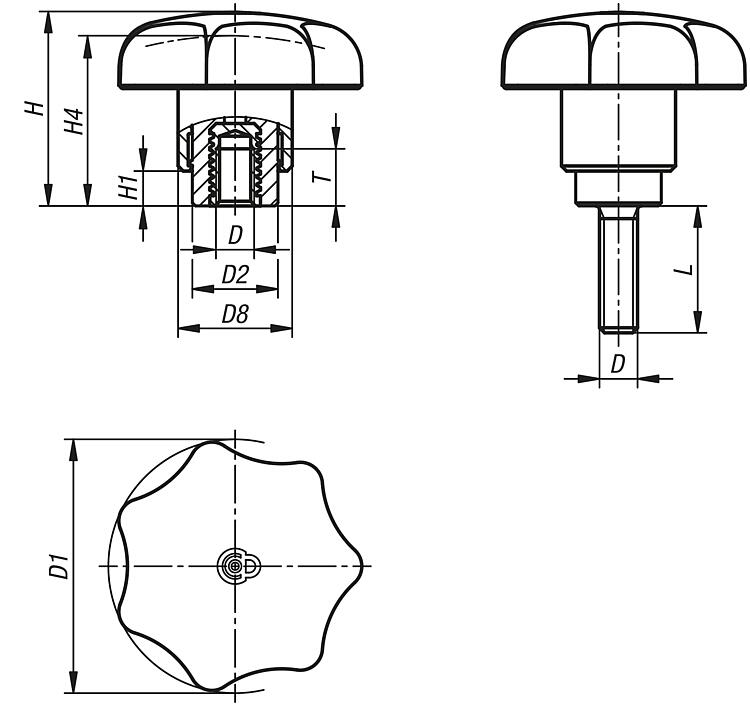

Drawings (total overview)

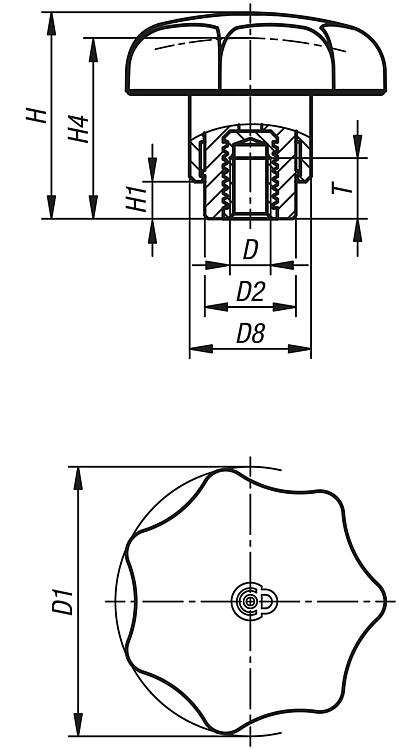

Star grips, plastic with safety function, with internal thread, inch

More information

Drawings

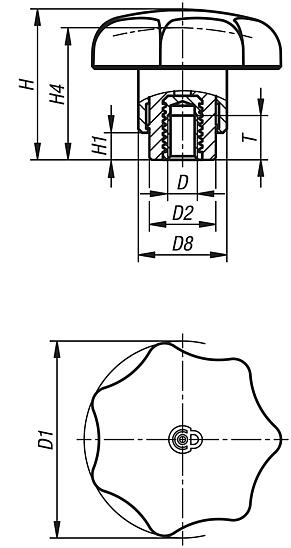

Star grips, plastic with safety function, with internal thread, inch

Item selection/filter

Order No.	Thread type	Main colour	Component material	Size	D	D1	D2	D8	H	H1	H4	T	No. of teeth	Price
06224-32AE1	internal thread	jet black RAL 9005	steel	1	8-32	32	10	14	25	5	22,1	6	12	on request
06224-32A11	internal thread	jet black RAL 9005	steel	1	10-32	32	10	14	25	5	22,1	6	12	on request
06224-40A11	internal thread	jet black RAL 9005	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	7,5	12	on request
06224-40A21	internal thread	jet black RAL 9005	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	9	12	on request
06224-40A31	internal thread	jet black RAL 9005	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	9	12	on request
06224-50A31	internal thread	jet black RAL 9005	steel	3	5/16-18	50	17	22	41,9	10	37,1	11,5	12	on request
06224-50A41	internal thread	jet black RAL 9005	steel	3	3/8-16	50	17	22	41,9	10	37,1	11,5	12	on request
06224-32AE84	internal thread	traffic red RAL 3020	steel	1	8-32	32	10	14	25	5	22,1	6	12	on request
06224-32A184	internal thread	traffic red RAL 3020	steel	1	10-32	32	10	14	25	5	22,1	6	12	on request
06224-40A184	internal thread	traffic red RAL 3020	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	7,5	12	on request
06224-40A284	internal thread	traffic red RAL 3020	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	9	12	on request
06224-40A384	internal thread	traffic red RAL 3020	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	9	12	on request
06224-50A384	internal thread	traffic red RAL 3020	steel	3	5/16-18	50	17	22	41,9	10	37,1	11,5	12	on request
06224-50A484	internal thread	traffic red RAL 3020	steel	3	3/8-16	50	17	22	41,9	10	37,1	11,5	12	on request

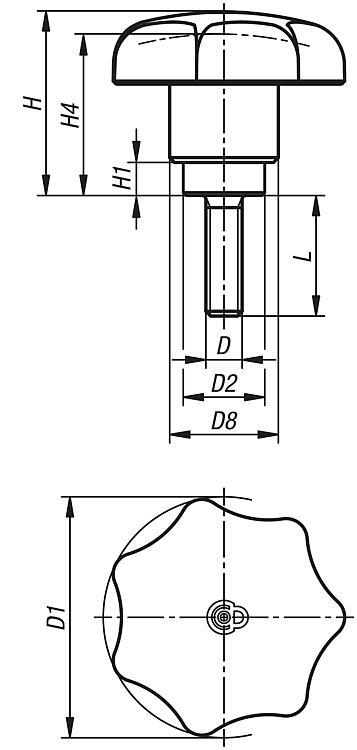

Star grips, plastic with safety function, with external thread, inch

More information

Drawings

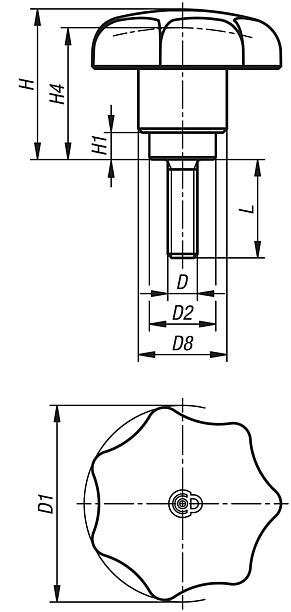

Star grips, plastic with safety function, with external thread, inch

Item selection/filter

Order No.	Thread type	Main colour	Component material	Size	D	D1	D2	D8	H	H1	H4	L	No. of teeth	Price
06224-32AE1X10	external thread	jet black RAL 9005	steel	1	8-32	32	10	14	25	5	22,1	10	12	on request
06224-32AE1X20	external thread	jet black RAL 9005	steel	1	8-32	32	10	14	25	5	22,1	20	12	on request
06224-32A11X10	external thread	jet black RAL 9005	steel	1	10-32	32	10	14	25	5	22,1	10	12	on request
06224-32A11X20	external thread	jet black RAL 9005	steel	1	10-32	32	10	14	25	5	22,1	20	12	on request
06224-40A11X20	external thread	jet black RAL 9005	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	20	12	on request
06224-40A11X30	external thread	jet black RAL 9005	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	30	12	on request
06224-40A11X40	external thread	jet black RAL 9005	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	40	12	on request
06224-40A21X20	external thread	jet black RAL 9005	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	20	12	on request
06224-40A21X30	external thread	jet black RAL 9005	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	30	12	on request
06224-40A21X40	external thread	jet black RAL 9005	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	40	12	on request
06224-40A31X20	external thread	jet black RAL 9005	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	20	12	on request
06224-40A31X30	external thread	jet black RAL 9005	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	30	12	on request
06224-40A31X40	external thread	jet black RAL 9005	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	40	12	on request
06224-50A31X20	external thread	jet black RAL 9005	steel	3	5/16-18	50	17	22	41,9	10	37,1	20	12	on request
06224-50A31X40	external thread	jet black RAL 9005	steel	3	5/16-18	50	17	22	41,9	10	37,1	40	12	on request
06224-50A41X20	external thread	jet black RAL 9005	steel	3	3/8-16	50	17	22	41,9	10	37,1	20	12	on request
06224-50A41X40	external thread	jet black RAL 9005	steel	3	3/8-16	50	17	22	41,9	10	37,1	40	12	on request
06224-32AE84X10	external thread	traffic red RAL 3020	steel	1	8-32	32	10	14	25	5	22,1	10	12	on request
06224-32AE84X20	external thread	traffic red RAL 3020	steel	1	8-32	32	10	14	25	5	22,1	20	12	on request
06224-32A184X10	external thread	traffic red RAL 3020	steel	1	10-32	32	10	14	25	5	22,1	10	12	on request
06224-32A184X20	external thread	traffic red RAL 3020	steel	1	10-32	32	10	14	25	5	22,1	20	12	on request
06224-40A184X20	external thread	traffic red RAL 3020	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	20	12	on request
06224-40A184X30	external thread	traffic red RAL 3020	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	30	12	on request
06224-40A184X40	external thread	traffic red RAL 3020	steel	2	10-32	40	13,5	18	30,5	5,5	26,6	40	12	on request
06224-40A284X20	external thread	traffic red RAL 3020	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	20	12	on request
06224-40A284X30	external thread	traffic red RAL 3020	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	30	12	on request
06224-40A284X40	external thread	traffic red RAL 3020	steel	2	1/4-20	40	13,5	18	30,5	5,5	26,6	40	12	on request
06224-40A384X20	external thread	traffic red RAL 3020	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	20	12	on request
06224-40A384X30	external thread	traffic red RAL 3020	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	30	12	on request
06224-40A384X40	external thread	traffic red RAL 3020	steel	2	5/16-18	40	13,5	18	30,5	5,5	26,6	40	12	on request
06224-50A384X20	external thread	traffic red RAL 3020	steel	3	5/16-18	50	17	22	41,9	10	37,1	20	12	on request
06224-50A384X40	external thread	traffic red RAL 3020	steel	3	5/16-18	50	17	22	41,9	10	37,1	40	12	on request
06224-50A484X20	external thread	traffic red RAL 3020	steel	3	3/8-16	50	17	22	41,9	10	37,1	20	12	on request
06224-50A484X40	external thread	traffic red RAL 3020	steel	3	3/8-16	50	17	22	41,9	10	37,1	40	12	on request
