        Knurled knobs, inch

Item description/product images

Show/filter all items

DescriptionMaterial:Black thermoplastic.
Bush and screw grade 5.8 steel.Version:Steel trivalent blue-passivated.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.Drawing reference:

Form D: tapped bush without cap
Form K: tapped bush with cap
Form E: reamed bush without cap
Form H: reamed bush with cap
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06266 inch Knurled knobs, inch

155 kB

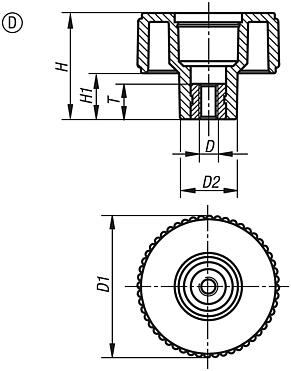

Knurled knobs Form D, with tapped bush, without cap, inch

More information

Drawings

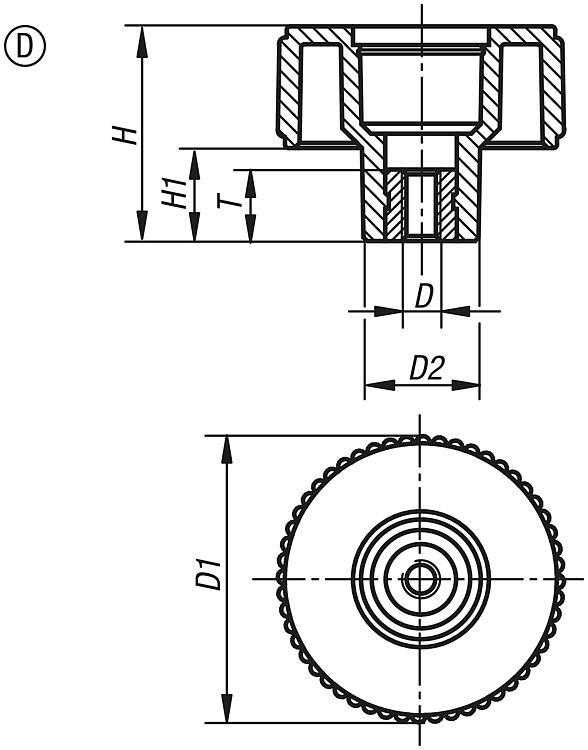

Knurled knobs Form D, with tapped bush, without cap, inch

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	T	Price
06266-11A1	D	10-32	40	16,5	31	13	10	on request
06266-11A2	D	1/4-20	40	16,5	31	13	10	on request
06266-11A3	D	5/16-18	40	16,5	31	13	14	on request
06266-12A3	D	5/16-18	50	18	36	15	14	on request
06266-12A4	D	3/8-16	50	18	36	15	14	on request
06266-13A4	D	3/8-16	63	22	41	17	14	on request
06266-13A5	D	1/2-13	63	22	41	17	18	on request

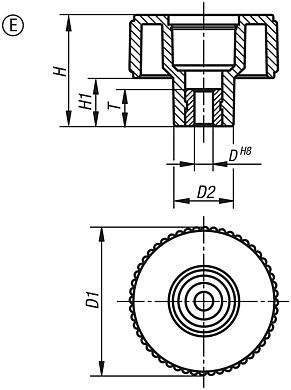

Knurled knobs Form E, with reamed bush, without cap, inch

More information

Drawings

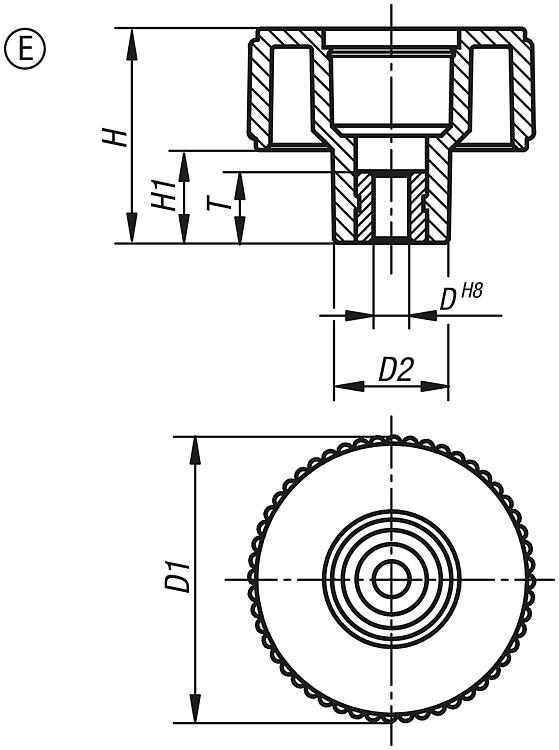

Knurled knobs Form E, with reamed bush, without cap, inch

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	T	Price
06266-31CM	E	0,25	40	16,5	31	13	10	on request
06266-32CN	E	0,312	50	18	36	15	14	on request
06266-33CO	E	0,375	63	22	41	17	14	on request

Knurled knobs Form H, with reamed bush, with cap, inch

More information

Drawings

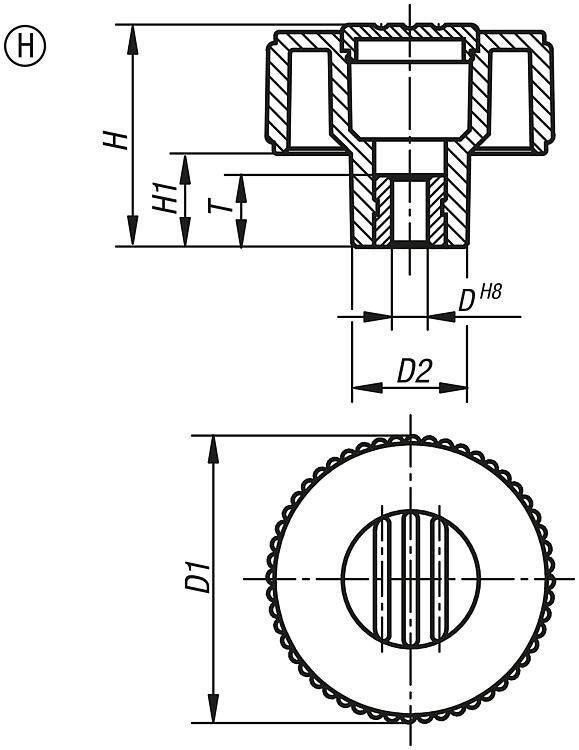

Knurled knobs Form H, with reamed bush, with cap, inch

Overview of items (compressed)

Item selection/filter

Order No.	Form	Size	D	D1	D2	H	H1	T
06266-41CMΔ	H	1	0,25	40	16,5	31	13	10
06266-42CNΔ	H	2	0,312	50	18	36	15	14
06266-43COΔ	H	3	0,375	63	22	41	17	14

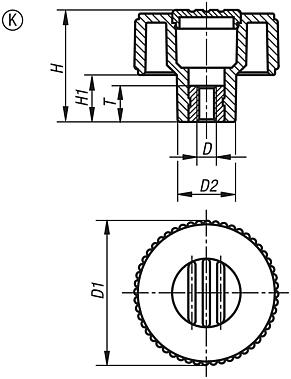

Knurled knobs Form K, with tapped bush, with cap, inch

More information

Drawings

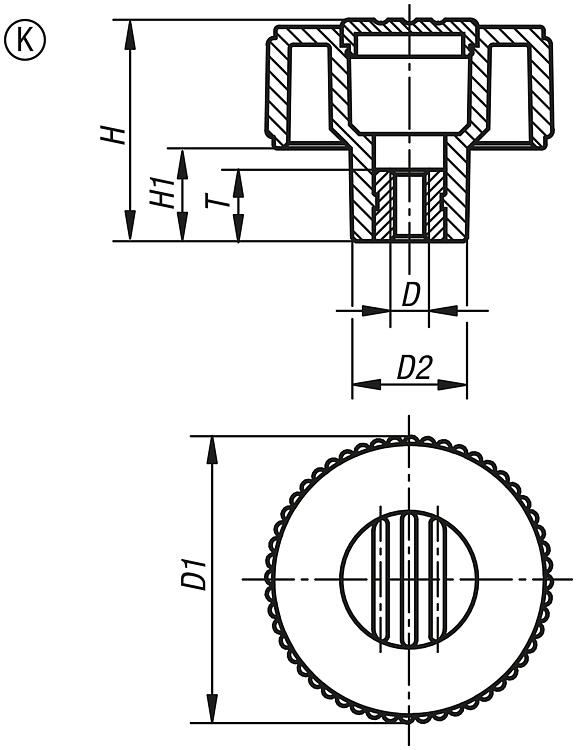

Knurled knobs Form K, with tapped bush, with cap, inch

Overview of items (compressed)

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	T
06266-21A1Δ	K	10-32	40	16,5	31	13	10
06266-21A2Δ	K	1/4-20	40	16,5	31	13	10
06266-21A3Δ	K	5/16-18	40	16,5	31	13	14
06266-22A3Δ	K	5/16-18	50	18	36	15	14
06266-22A4Δ	K	3/8-16	50	18	36	15	14
06266-23A4Δ	K	3/8-16	63	22	41	17	14
06266-23A5Δ	K	1/2-13	63	22	41	17	18

Knurled knobs Form L, with external thread, inch

More information

Drawings

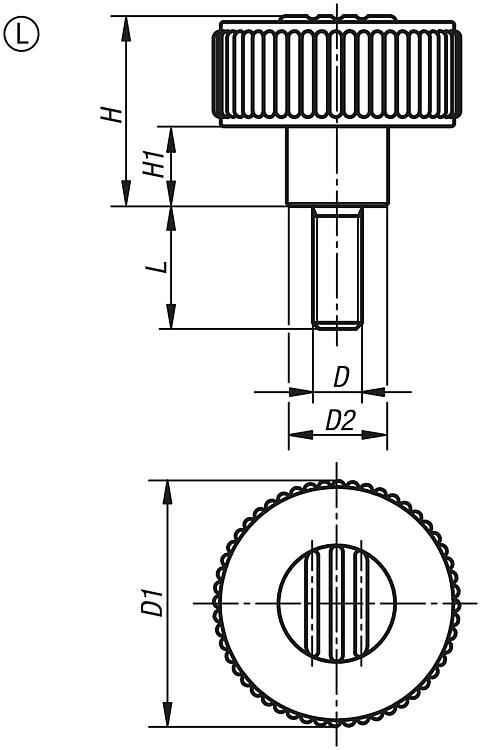

Knurled knobs Form L, with external thread, inch

Overview of items (compressed)

Item selection/filter

Order No.	Form	Size	D	D1	D2	H	H1	L
06266-51A1ΔX	L	1	10-32	40	16,5	31	13	10/20
06266-51A2ΔX	L	1	1/4-20	40	16,5	31	13	20/30
06266-51A3ΔX	L	1	5/16-18	40	16,5	31	13	20/40
06266-52A3ΔX	L	2	5/16-18	50	18	36	15	20/40
06266-52A4ΔX	L	2	3/8-16	50	18	36	15	20/40
06266-53A4ΔX	L	3	3/8-16	63	22	41	17	20/40
06266-53A5ΔX	L	3	1/2-13	63	22	41	17	30/60
