Knurled knobs metal parts stainless steel, inch
 06267 inch

Knurled knobs metal parts stainless steel, inch

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:

Thermoplastic, black grey.
Bush and screw stainless steel 1.4305.

Version:Stainless steel bright.Note:For the inch series, dimension D is in inches, all other dimensions are in mm.Drawing reference:
Form D: tapped bush without cap
Form K: tapped bush with cap
Form L: external thread
Special features:
Stainless steel RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06267 inch Knurled knobs metal parts stainless steel, inch 1,1 MB

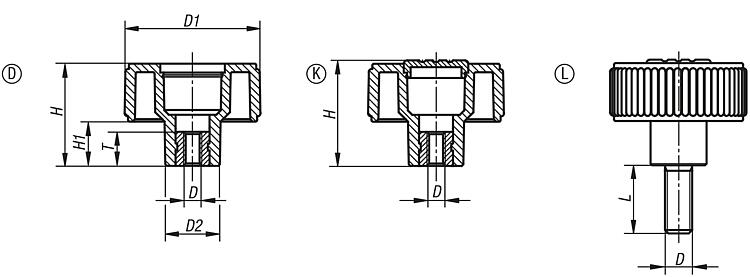

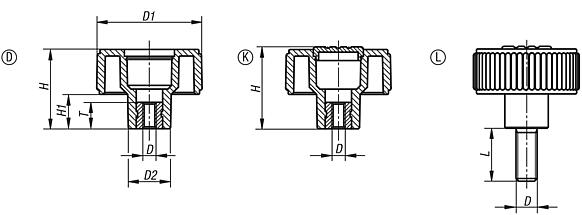

Drawings (total overview)

Knurled knobs metal parts stainless steel, inch

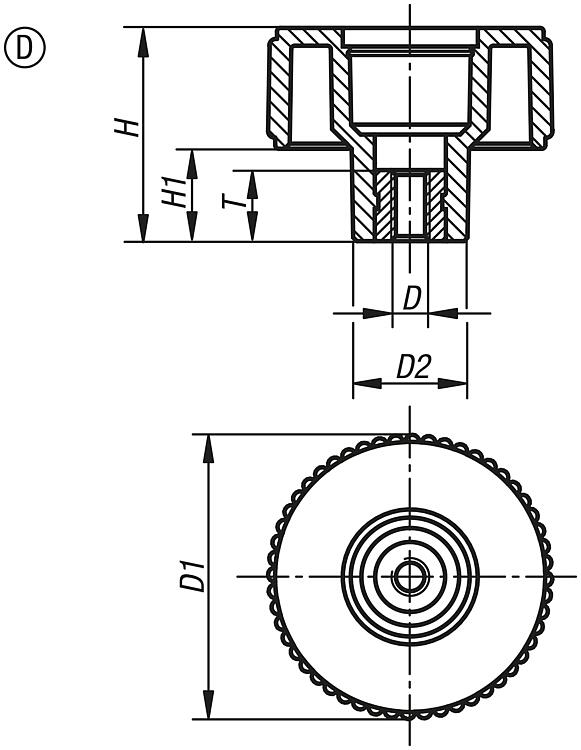

Knurled knobs, metal parts stainless steel, Form D, with tapped bush, without cap, inch

 More information

Drawings
Knurled knobs, metal parts stainless steel, Form D, with tapped bush, without cap, inch

Item selection/filter
Order No.

FormDD1D2HH1TCADAcc.PriceOrder
06267-11A1D10-324016,5311310 on request
06267-11A2D1/4-204016,5311310 on request
06267-11A3D5/16-184016,5311314 on request
06267-12A3D5/16-185018361514 on request
06267-12A4D3/8-165018361514 on request
06267-13A4D3/8-166322411714 on request
06267-13A5D1/2-136322411718 on request

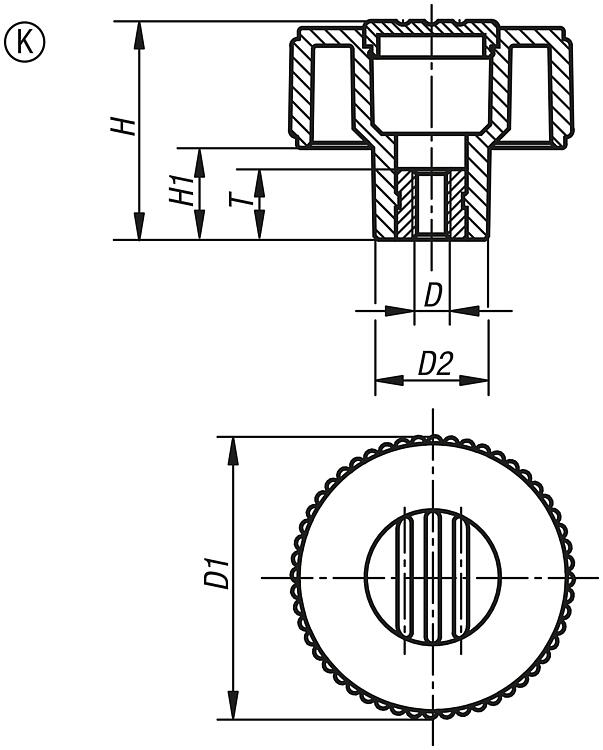

Knurled knobs, metal parts stainless steel, Form K, with tapped bush, with cap, inch

 More information

Drawings
Knurled knobs, metal parts stainless steel, Form K, with tapped bush, with cap, inch

Overview of items (compressed)

 Item selection/filter
Order No.

FormDD1D2HH1TFilter
06267-21A1ΔK10-324016,5311310
06267-21A2ΔK1/4-204016,5311310
06267-21A3ΔK5/16-184016,5311314
06267-22A3ΔK5/16-185018361514
06267-22A4ΔK3/8-165018361514
06267-23A4ΔK3/8-166322411714
06267-23A5ΔK1/2-136322411718

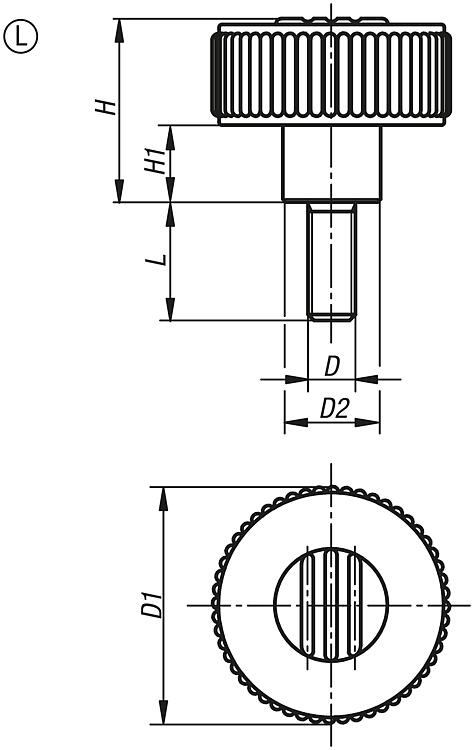

Knurled knobs, metal parts stainless steel, Form L, with external thread, inch

 More information

Drawings
Knurled knobs, metal parts stainless steel, Form L, with external thread, inch

Overview of items (compressed)

 Item selection/filter
Order No.

Form

SizeDD1D2HH1LFilter
06267-51A1ΔXL110-324016,5311310/20
06267-51A2ΔXL11/4-204016,5311320/30
06267-51A3ΔXL15/16-184016,5311320/40
06267-52A3ΔXL25/16-185018361520/40
06267-52A4ΔXL23/8-165018361520/40
06267-53A4ΔXL33/8-166322411720/40
