        Wing grips "Miniwing" stainless steel, inch

Item description/product images

DescriptionProduct description:The Miniwing wing grips is characterised by their ergonomic and compact design.
The materials used enable diverse applications including those with the highest demands on corrosion resistance.Material:

Stainless steel 1.4308 or 1.4404.

Version:Polished or blasted.Drawing reference:

Form D: tapped through thread
Form E: tapped blind hole
Form L: external thread

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06652-10 inch Wing grips "Miniwing" stainless steel, inch

198 kB

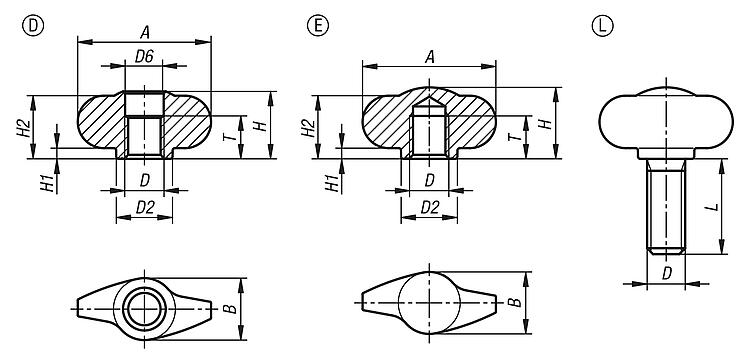

Drawings (total overview)

Wing grips "Miniwing", stainless steel, Form D, thread bored out, inch

More information

Drawings

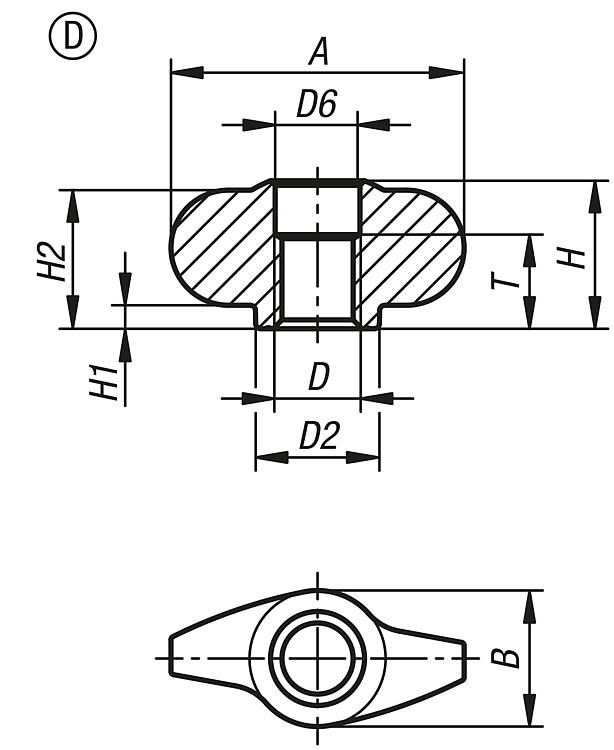

Wing grips "Miniwing", stainless steel, Form D, thread bored out, inch

Item selection/filter

	D	1.4308	polished	28	13	10-32 1/4-20	11,8	8,1	14,1	2,25	13,25	9				Reset
Order No.	Form	Steel code	Surface finish body	A	B	D	D2	D6	H	H1	H2	T	CAD	Acc.	Price	Order
06652-10-428A112	D	1.4308	polished	28	13	10-32	11,8	8,1	14,1	2,25	13,25	9			on request
06652-10-428A212	D	1.4308	polished	28	13	1/4-20	11,8	8,1	14,1	2,25	13,25	9			on request

Wing grips "Miniwing" stainless steel, Form E, tapped blind hole, inch

More information

Drawings

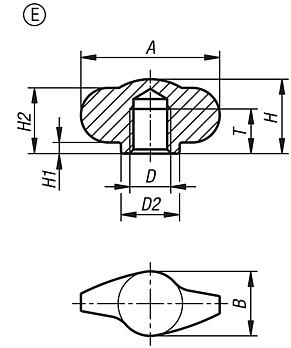

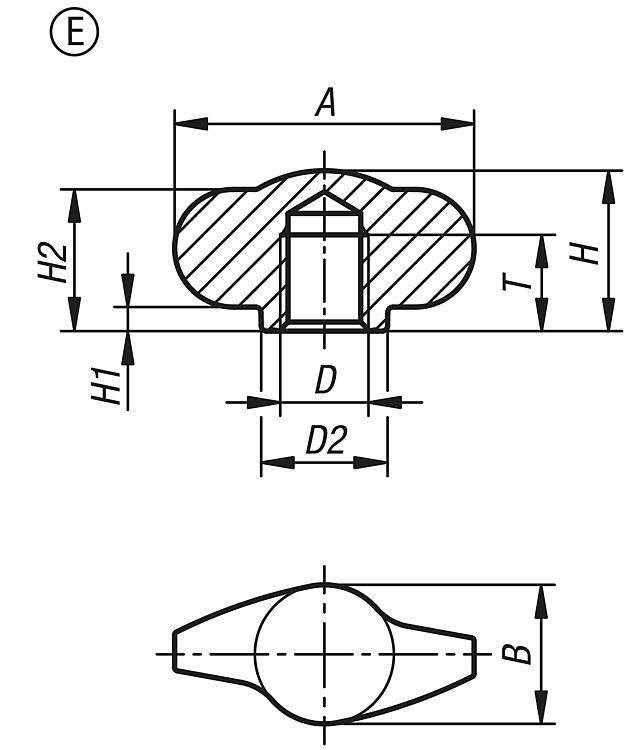

Wing grips "Miniwing" stainless steel, Form E, tapped blind hole, inch

Item selection/filter

	E	1.4308	polished	28	13	10-32 1/4-20	11,8	15	2,25	13,25	7,5 9				Reset
Order No.	Form	Steel code	Surface finish body	A	B	D	D2	H	H1	H2	T	CAD	Acc.	Price	Order
06652-10-528A112	E	1.4308	polished	28	13	10-32	11,8	15	2,25	13,25	7,5			on request
06652-10-528A212	E	1.4308	polished	28	13	1/4-20	11,8	15	2,25	13,25	9			on request

Wing grips "Miniwing", stainless steel, Form L, external thread, inch

More information

Drawings

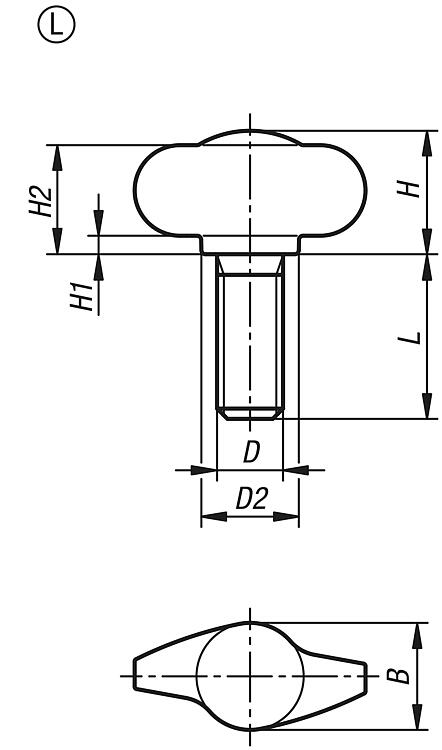

Wing grips "Miniwing", stainless steel, Form L, external thread, inch

Item selection/filter

	L	1.4308	polished	28	13	8-32 10-32 1/4-20 5/16-18	11,8	15	2,25	13,25	10 20 30 40				Reset
Order No.	Form	Steel code	Surface finish body	A	B	D	D2	H	H1	H2	L	CAD	Acc.	Price	Order
06652-10-628AE12X10	L	1.4308	polished	28	13	8-32	11,8	15	2,25	13,25	10			on request
06652-10-628AE12X20	L	1.4308	polished	28	13	8-32	11,8	15	2,25	13,25	20			on request
06652-10-628A112X10	L	1.4308	polished	28	13	10-32	11,8	15	2,25	13,25	10			on request
06652-10-628A112X20	L	1.4308	polished	28	13	10-32	11,8	15	2,25	13,25	20			on request
06652-10-628A212X20	L	1.4308	polished	28	13	1/4-20	11,8	15	2,25	13,25	20			on request
06652-10-628A212X30	L	1.4308	polished	28	13	1/4-20	11,8	15	2,25	13,25	30			on request
06652-10-628A312X20	L	1.4308	polished	28	13	5/16-18	11,8	15	2,25	13,25	20			on request
06652-10-628A312X40	L	1.4308	polished	28	13	5/16-18	11,8	15	2,25	13,25	40			on request
