Wedge supports

02320

Wedge supports

Products
- Product overview
  - Flexible standard component system
    - Self-aligning pads Fixture feet Clamp rests Support elements
      - Support elements
        Wedge supports

Item description/product images

DescriptionMaterial:Carbon steel and ductile iron.Version:Tempered and black oxidised.
Wedge faces fine machined.Note:Fine adjustment by knurled screw or Allen key. Therefore vertical movement without lateral displacement. Especially suitable for marking or machining heavy parts. Ball handle 02210-01 is added to each height wedge.

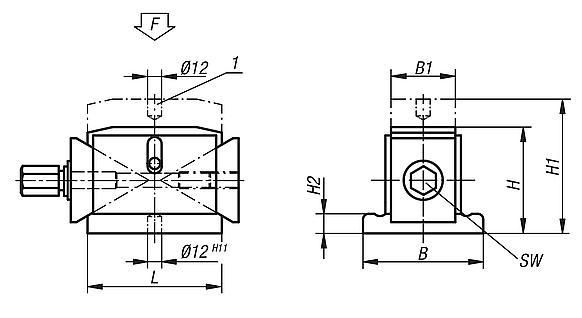

H min is reached by removing the baseplate.Drawing reference:

1) centring hole for 02210

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02320 Wedge supports

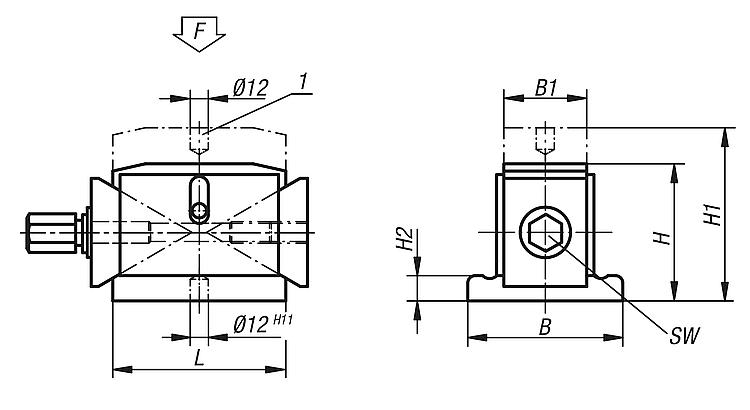

Drawings

Wedge supports

Item selection/filter

Order No.	Clamp range	B	B1	H	H1	H2	L	SW	travel per spindle rotation	F kN	CAD	Acc.	Price	Order
02320-50	55 - 68	63	40	55	68	7	63	13	0,86	40			on request
02320-100	100 - 125	115	60	100	125	20	125	24	1,16	100			on request
