        Retaining cables

Item description/product images

DescriptionMaterial:Cable stainless steel.
Crimp and end terminal aluminium.Version:Cable plastic coated.Note:With the retaining cable and pin ring (03199) the ball lock pins (03193, 03194 and 03196) can be secured so that they cannot be lost. An M5 screw is used to secure the retaining cable.
Application temperature: +80 °C.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03199 Retaining cables

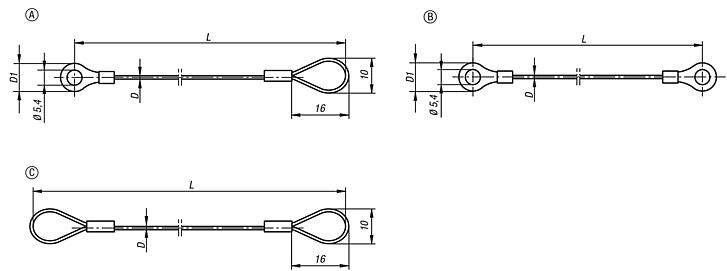

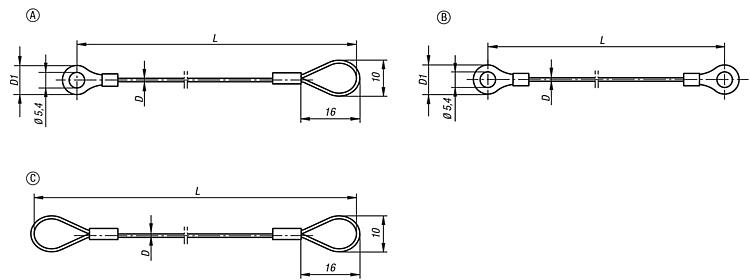

Drawings (total overview)

Retaining cables

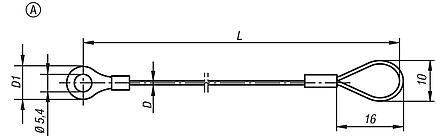

Retaining cables Form A, with eye and crimp terminal

More information

Drawings

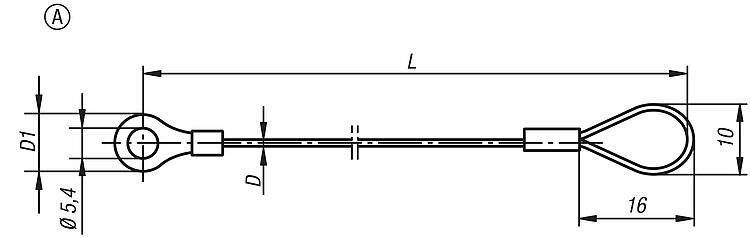

Retaining cables Form A, with eye and crimp terminal

Item selection/filter

Order No.	Form	L	D	CAD	Acc.	Price	Order
03199-0150	A	150	1,6			on request
03199-0200	A	200	1,6			on request
03199-0300	A	300	1,6			on request
03199-0500	A	500	1,6			on request

Retaining cables Form B, with crimp terminals both ends

More information

Drawings

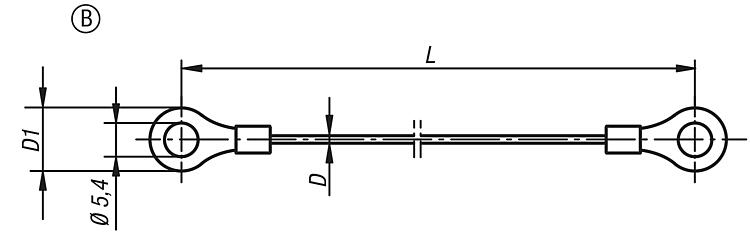

Retaining cables Form B, with crimp terminals both ends

Item selection/filter

Order No.	Form	L	D	CAD	Acc.	Price	Order
03199-1150	B	150	1,6			on request
03199-1200	B	200	1,6			on request
03199-1300	B	300	1,6			on request
03199-1500	B	500	1,6			on request

Retaining cables Form C, with eyes both ends

More information

Drawings

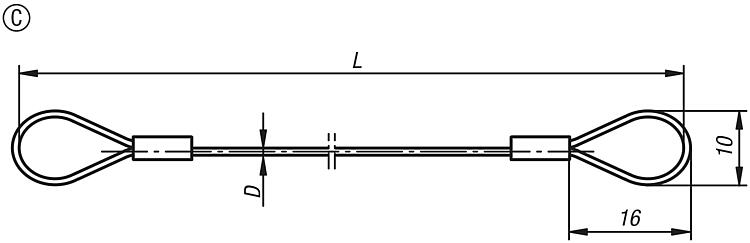

Retaining cables Form C, with eyes both ends

Item selection/filter

Order No.	Form	L	D	CAD	Acc.	Price	Order
03199-2150	C	150	1,6			on request
03199-2200	C	200	1,6			on request
03199-2300	C	300	1,6			on request
03199-2500	C	500	1,6			on request
