        Ball lock pins, steel, heavy-duty version with stainless steel twist knob

Item description/product images

DescriptionMaterial:Housing and pin steel.
Twist knob stainless steel.Version:Housing and pin nickel plated.
Twist knob bright.Note:M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 20 mm.

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.Type of operation:Ensure that the twist knob is in the "OFF" position.
Insert the ball lock pin into the locating bush and turn the twist knob to the ‘ON’ position.
When fully clamped, an audible click will be heard.Accessory:Steel locating bush for ball lock pin 03191-95.Drawing reference:

1) Mounting option 1
2) Mounting option 2
3) Plate

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03191-90 Ball lock pins, steel, heavy-duty version with stainless steel twist knob

310 kB

Technical information for ball lock pins 03191-90

474 kB

Drawings

Item selection/filter

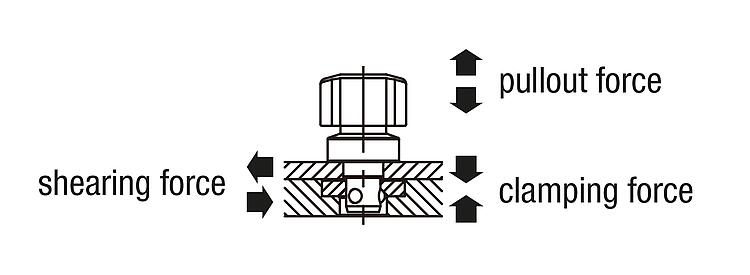

Order No.	D	D1	D2	D3	D4	D5	D6	D7	D8	H	H1	H2	M	T	T1	T2	L2	Clamping force N	Shearing force kN	Pullout force F kN	Holding force N	Temperature resistance	CAD	Acc.	Price	Order
03191-90-11218	14	12	25	30	21	14	26	4,4	2,4	35	10	5,5	M02X4	6	6-16	2,5	17,5	1000	10	4	2500	≤180 °C			on request
03191-90-11622	18	16	34	50	28	18	35	6,5	3,4	45	14	5,5	M03X6	6	6-20	2,5	21,5	2000	15	8	5000	≤180 °C			on request
