        Ball lock pins, steel or stainless steel, without head, with thread

Item description/product images

DescriptionMaterial:Housing and push button steel or stainless steel.
Ball, spring and snap ring stainless steel.
O-ring FKM.Version:Housing nickel-plated or bright.
Knob tempered and nickel-plated.

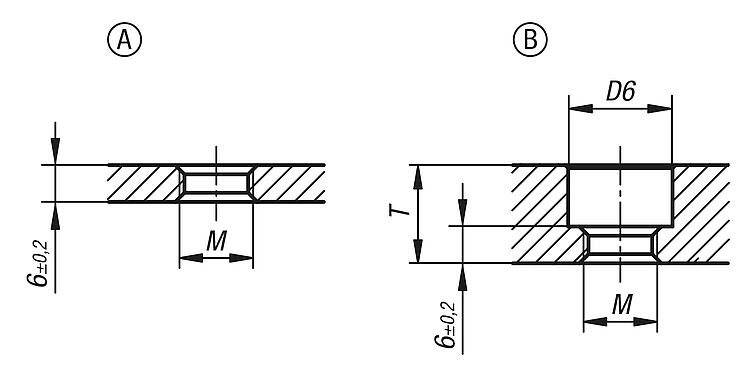

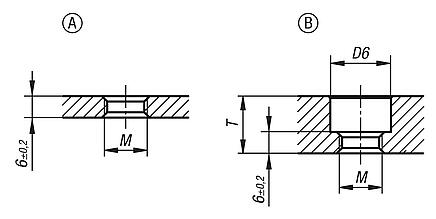

Ball tempered.Note:Mounting dimensions Form A for plate thickness 6 mm.
Mounting dimensions Form B for plate thickness 6 to 16 mm.

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.

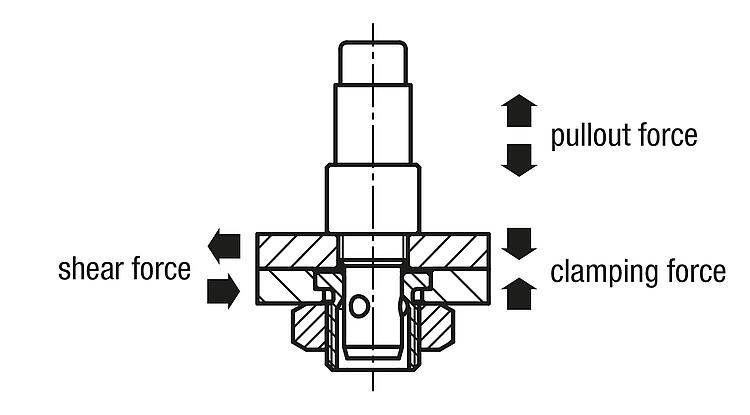

Attention:The specified pullout forces only apply in conjunction with locating bush 03192-02.Accessory:Locating bush 03192-02.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03192 Ball lock pins, steel or stainless steel, without head, with thread

232 kB

Technical information for ball lock pins

157 kB

Drawings

Item selection/filter

Order No.	Main material	D	D1	D2	D3	M	L1	L2	L5	H	H1	SW	D6	T max.	Holding force N	Clamping force N	Shearing force kN	Pullout force F kN	Temperature resistance	Price
03192-6212	steel	12	6	12	8	M8x1,25	19	21	13,5	22	17,5	10	13	10	90	30	3	0,5	≤180 °C	on request
03192-10242	steel	16	10	16	11	M12x1,5	21,5	23,5	16	34,4	28	13	17	16	150	50	9	1,5	≤180 °C	on request
03192-16212	stainless steel	12	6	12	8	M8x1,25	19	21	13,5	22	17,5	10	13	10	90	30	3	0,5	≤180 °C	on request
03192-110242	stainless steel	16	10	16	11	M12x1,5	21,5	23,5	16	34,4	28	13	17	16	150	50	9	1,5	≤180 °C	on request
