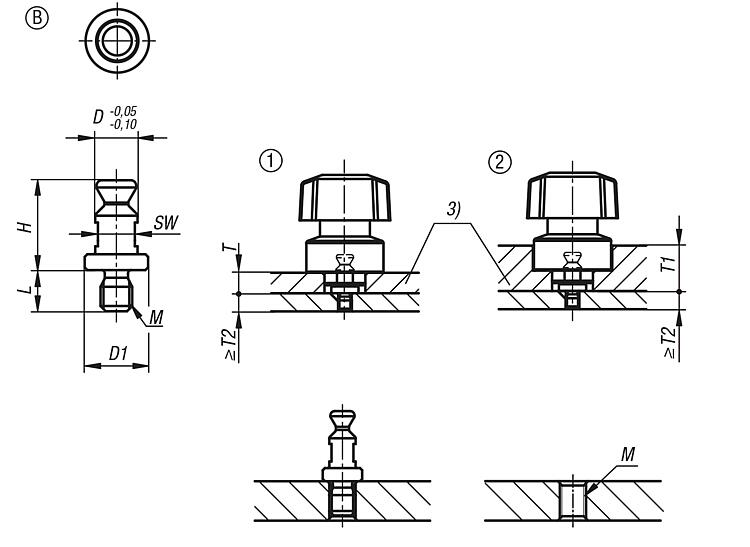

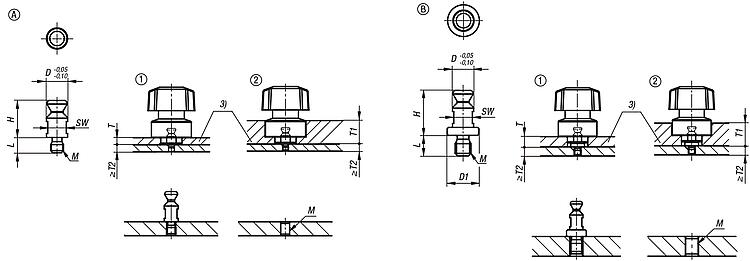

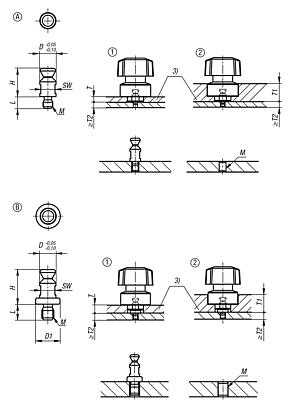

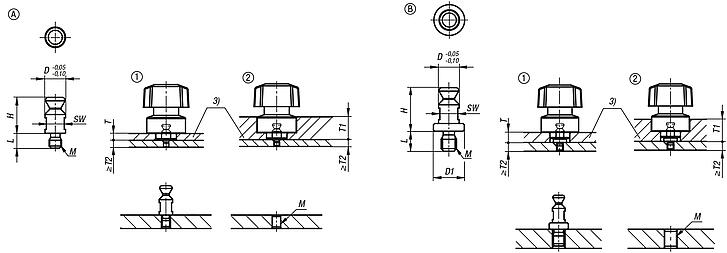

DescriptionMaterial:Stainless steelVersion:Hardened.Note:Mounting option 1 with Form A clamping pin for plate thickness 6 mm and with Form B clamping pin for plate thickness 9 mm. Mounting option 2 with Form A clamping pin for plate thickness >6 to 20 mm and with Form B clamping pin for plate thickness >9 to 20 mm.
Colour may differ from the photo due to hardening.Type of operation:Screw the clamping pin into the thread and tighten. See assembly drawing.Drawing reference:
