03192Ball lock pins, stainless steel, with thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing and push button stainless steel.
Ball, spring and snap ring stainless steel.
O-ring FKM.Version:Housing bright.
Push button bright.

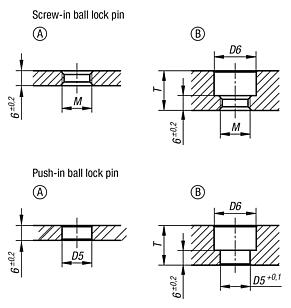

Ball tempered.Note:Mounting dimensions Form A for plate thickness 6 mm.
Mounting dimensions Form B for plate thickness 6 to 16 mm.

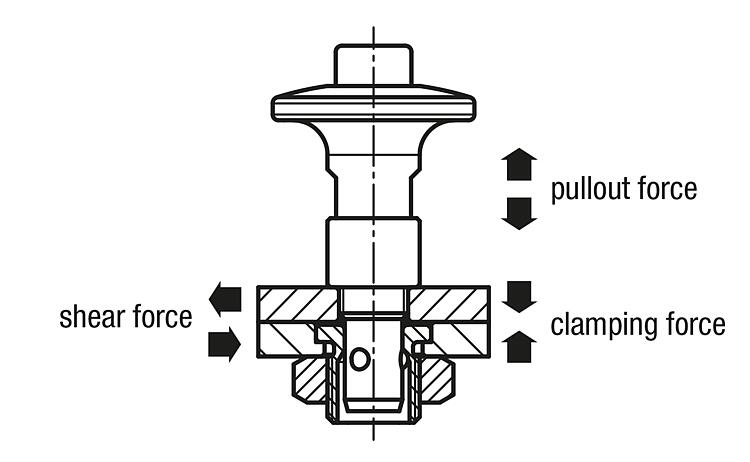

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Attention:The specified pullout forces only apply in conjunction with locating bush 03192-02.Accessory:Locating bush 03192-02.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D | D1 | D2 | D3 | M | L1 | L2 | L5 | H | H1 | H2 | H3 | SW | D5 | D6 | T
max. | Holding
force
N | Clamping
force
N | Shearing force
kN | Pullout force
kN | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 03192-6211 | 12 | 6 | 23 | 8 | M8 | 19 | 21 | 13,5 | 25,8 | 18 | 6 | 5,5 | 10 | 8 | 13 | 10 | 90 | 30 | 3 | 0,5 | ≤180 °C |  | | on request | | | 03192-10241 | 16 | 10 | 32 | 12 | M12x1,5 | 21,5 | 23,5 | 16 | 39,4 | 29 | 12 | 7 | 13 | 12 | 17 | 16 | 150 | 50 | 9 | 1,5 | ≤180 °C | | | on request | |
