03192-10Quarter-turn latches, stainless steel with plastic or stainless... |
go back |
|
|
DescriptionProduct description:Quarter-turn latches are used for replacing and locking fixtures or hatches quickly and easily.
Toolless clamping shortens setup times.Material:Housing stainless steel.
Rotary knob thermoplastic PA (polyamide) or stainless steel.Version:Housing bright.
Rotary knob PA fibreglass reinforced, black.
Knob stainless steel, bright.Note:M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 14 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Type of operation:Check that the rotary knob is in the "OFF" position.
Set the lift and turn latch over the clamping pin and turn the rotary knob to the "ON" position.
When fully clamped, a click sound is heard.Accessory:Clamping pins 03192-25.Drawing reference:1) Mounting option 1
2) Mounting option 2
3) Plate
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Component

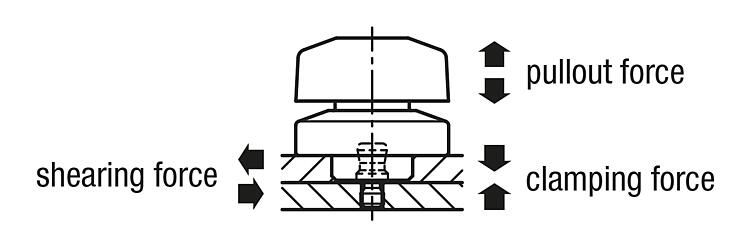

material | D | D1 | D2 | D3 | D4 | H | H1 | H2 | M | D5 | D6 | D7 | D8 | T | T1 | T2 | Holding
force
N | Clamping
force
N | Shearing force
kN | Pullout force F
kN | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 03192-10-14 | polyamide | 6 | 14 | 25 | 25 | 21 | 23 | 6,5 | 5,5 | M2x3 | 14 | 26 | 4,4 | 2,4 | 6 | 6-10 | 2,5 | 110 | 7 | 1,1 | 0,25 | ≤130 °C |  | | on request | | | 03192-10-18 | polyamide | 8 | 18 | 34 | 34 | 28 | 28 | 10 | 5,5 | M3x4 | 18 | 35 | 6,5 | 3,4 | 6 | 6-14 | 2,5 | 150 | 9 | 1,8 | 0,4 | ≤130 °C | | | on request | |
|
Quarter-turn latches, stainless steel with stainless steel twist knob |
More information |
| Order No. | Component
material | D | D1 | D2 | D3 | D4 | H | H1 | H2 | M | D5 | D6 | D7 | D8 | T | T1 | T2 | Holding
force
N | Clamping
force
N | Shearing force
kN | Pullout force F
kN | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 03192-10-114 | stainless steel | 6 | 14 | 25 | 25 | 21 | 23 | 6,5 | 5,5 | M2x3 | 14 | 26 | 4,4 | 2,4 | 6 | 6-10 | 2,5 | 110 | 7 | 1,1 | 0,25 | ≤200 °C | | | on request | | | 03192-10-118 | stainless steel | 8 | 18 | 34 | 34 | 28 | 28 | 10 | 5,5 | M3x4 | 18 | 35 | 6,5 | 3,4 | 6 | 6-14 | 2,5 | 150 | 9 | 1,8 | 0,4 | ≤200 °C | | | on request | |
|
