        Ball lock pins, stainless steel, retractable, heavy-duty version with stainless steel twist knob

Item description/product images

DescriptionMaterial:

Housing stainless steel 1.4305.
Pin steel.
Twist knob stainless steel 1.4301.

Version:Stainless steel bright.
Steel nickel-plated.Note:M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 to 20 mm.

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Type of operation:Check that the twist knob is in the "OFF" position and that the pin is retracted.
Place the ball lock pin over the receiving bush or insert it. Press the twist knob down and turn it to the "ON" position. When fully clamped, an audible click will be heard.Accessory:Locating bush, steel, for ball lock pin 03191-95.Drawing reference:

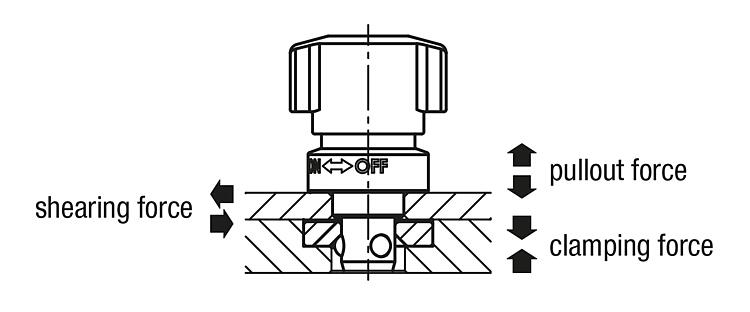

1) Mounting option 1
2) Mounting option 2
3) Plate

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03191-91 Ball lock pins, stainless steel, retractable, heavy-duty version with stainless steel twist knob

288 kB

Drawings

Item selection/filter

	pins steel	16 20	12 16	27 36	35 50	23 30	16 20	28 37	4,4 6,5	2,4 3,4	52 66	10 14	35 44	5,5	17,5 21,5	M02X4 M03X6	6	6-16 6-20	2,5				Reset
Order No.	Version 2	D	D1	D2	D3	D4	D5	D6	D7	D8	H	H1	H2	L1	L2	M	T	T1	T2	CAD	Acc.	Price	Order
03191-91-11218	pins steel	16	12	27	35	23	16	28	4,4	2,4	52	10	35	5,5	17,5	M02X4	6	6-16	2,5			on request
03191-91-11622	pins steel	20	16	36	50	30	20	37	6,5	3,4	66	14	44	5,5	21,5	M03X6	6	6-20	2,5			on request

	pins steel	10 15	1000 2000	4 8	2500 5000	≤180 °C				Reset
Order No.	Version 2	Shearing force kN	Clamping force N	Pullout force F kN	Holding force N	Temperature resistance	CAD	Acc.	Price	Order
03191-91-11218	pins steel	10	1000	4	2500	≤180 °C			on request
03191-91-11622	pins steel	15	2000	8	5000	≤180 °C			on request

	Ball Lock Pin	heavy version	pins steel	-				Reset
Order No.	Item	Version 1	Version 2	Form definition	CAD	Acc.	Price	Order
03191-91-11218	Ball Lock Pin	heavy version	pins steel	-			on request
03191-91-11622	Ball Lock Pin	heavy version	pins steel	-			on request
