DescriptionProduct description:Quarter-turn latches are used for replacing and locking fixtures or hatches quickly and easily.
Toolless clamping shortens setup times.Material:Housing stainless steel.
Rotary knob thermoplastic PA (polyamide) or stainless steel.Version:Housing bright.
Rotary knob PA fibreglass reinforced, black.
Knob stainless steel, bright.Note:M2 or M3 stainless steel fastening screws are included.
The plate thickness varies depending on the clamping pin used (03192-09).
Mounting option 1 with Form A clamping pin for plate thickness 6 mm or with Form B clamping pin for plate thickness 9 mm.
Mounting option 2 with Form A clamping pin for plate thickness >6 to 20 mm or with Form B clamping pin for plate thickness >9 to 20 mm.
The clamping pins must be ordered separately.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.Type of operation:Ensure that the twist knob is in the "OFF" position.

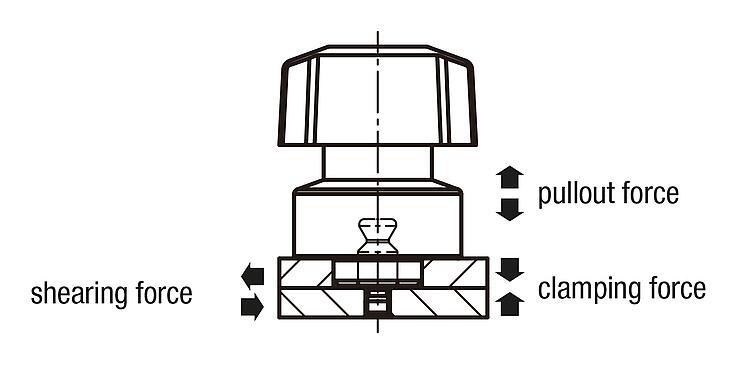

Place the quarter-turn latch over the clamping pin and turn the twist knob to the ‘ON’ position.Accessory:Stainless steel clamping pin for quarter-turn latch 03192-09.Drawing reference:1) Mounting option 1
2) Mounting option 2
3) Plate DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Quarter-turn latches, stainless steel, heavy-duty version
with plastic twist knob
|
More information |
| Order No. | Component
material | D
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | H | H1 | H2 | M | T | T1 | T2 | Clamping
force
N | Pullout force F
kN | Holding
force
N | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 03192-08-14 | polyamide | 6 | 14 | 25 | 30 | 21 | 14 | 26 | 4,4 | 2,4 | 40 | 14,7 | 5,5 | M02X4 | 6/9 | 6-20/9-20 | 2,5 | 150 | 1,8 | 450 | ≤130 °C |  | | on request | | | 03192-08-18 | polyamide | 8 | 18 | 34 | 40 | 28 | 18 | 35 | 6,5 | 3,4 | 48 | 16 | 5,5 | M3x5 | 6/9 | 6-20/9-20 | 2,5 | 250 | 2,4 | 750 | ≤180 °C | | | on request | |
|
Quarter-turn latches, stainless steel, heavy-duty version
with stainless steel twist knob |
More information |
| Order No. | Component
material | D
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | H | H1 | H2 | M | T | T1 | T2 | Clamping
force
N | Pullout force F
kN | Holding
force
N | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 03192-08-114 | stainless steel A2 | 6 | 14 | 25 | 30 | 21 | 14 | 26 | 4,4 | 2,4 | 40 | 14,7 | 5,5 | M02X4 | 6/9 | 6-20/9-20 | 2,5 | 150 | 1,8 | 450 | ≤130 °C | | | on request | | | 03192-08-118 | stainless steel A2 | 8 | 18 | 34 | 40 | 28 | 18 | 35 | 6,5 | 3,4 | 48 | 16 | 5,5 | M3x5 | 6/9 | 6-20/9-20 | 2,5 | 250 | 2,4 | 750 | ≤180 °C | | | on request | |
|
