        Wheels polyamide heavy-duty version

Item description/product images

Show/filter all items

DescriptionMaterial:Polyamide.Note:Polyamide wheels are unbreakable, non-corroding, shock and impact proof and chemical resistant. They also have high abrasion resistance and low roll resistance.

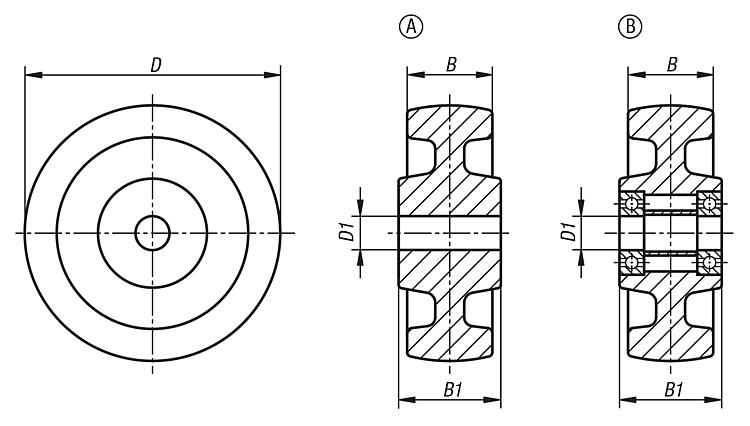

Suitable as replacement rollers for the castors 95040.Drawing reference:

Form A: plain bearing
Form B: ball bearing

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95064 Wheels polyamide heavy-duty version

199 kB

Drawings (total overview)

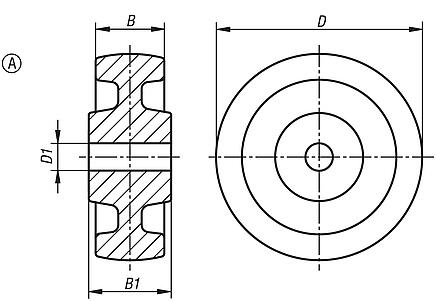

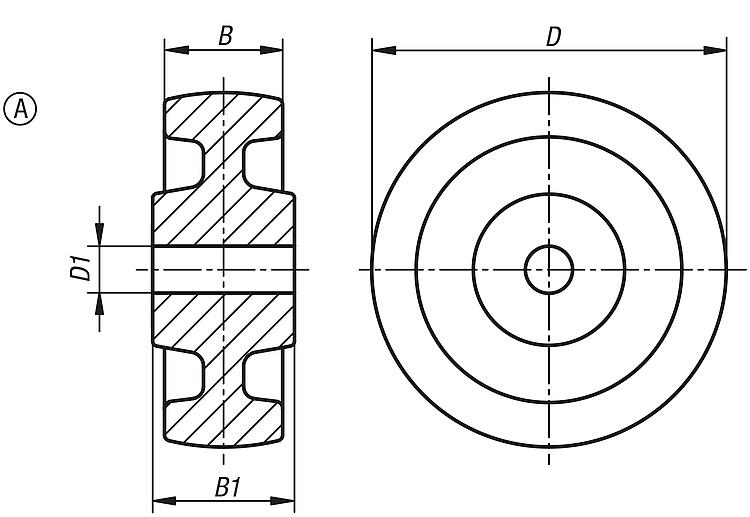

Nylon wheels, heavy version with plain bearings, Form A

More information

Drawings

Nylon wheels, heavy version with plain bearings, Form A

Item selection/filter

	plain bearing	75 100 125 150 200 250	12 15 20 25	32 37 40 50 65	35 45 60 70	300 500 700 800 1500 2000				Reset
Order No.	Wheel bearing	D	D1	B	B1	Permissible load kg	CAD	Acc.	Price	Order
95064-07532	plain bearing	75	12	32	35	300			on request
95064-10037	plain bearing	100	15	37	45	500			on request
95064-12540	plain bearing	125	15	40	45	700			on request
95064-15050	plain bearing	150	20	50	60	800			on request
95064-20050	plain bearing	200	20	50	60	1500			on request
95064-25065	plain bearing	250	25	65	70	2000			on request

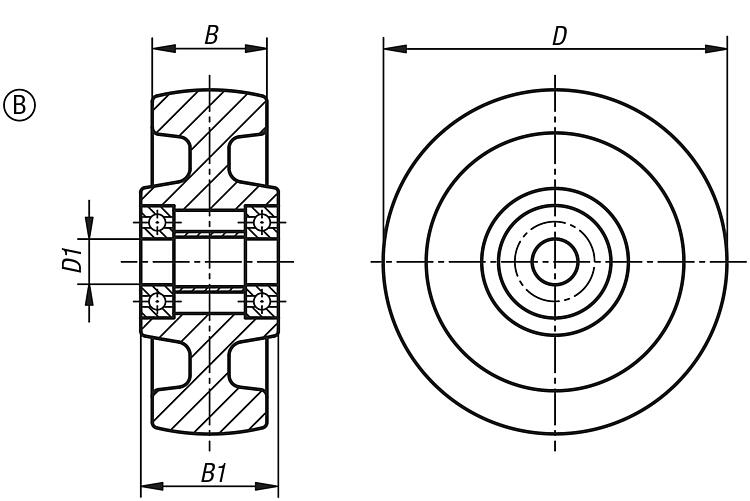

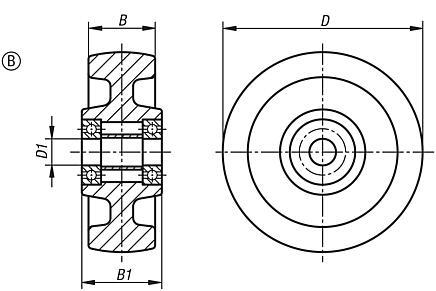

Nylon wheels, heavy version with ball bearings, Form B

More information

Drawings

Nylon wheels, heavy version with ball bearings, Form B

Item selection/filter

	ball bearing	75 100 125 150 200 250	15 20 25	32 37 40 50 65	35 45 60 65	300 500 700 800 1500 2000				Reset
Order No.	Wheel bearing	D	D1	B	B1	Permissible load kg	CAD	Acc.	Price	Order
95064-075321	ball bearing	75	15	32	35	300			on request
95064-100371	ball bearing	100	15	37	45	500			on request
95064-125401	ball bearing	125	20	40	45	700			on request
95064-150501	ball bearing	150	20	50	60	800			on request
95064-200501	ball bearing	200	25	50	60	1500			on request
95064-250651	ball bearing	250	25	65	65	2000			on request
