03192-30Locking pins, stainless steel with stainless steel mushroom grip |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:With the locking pin, two separate plates can be joined quickly and easily with no counterpiece.Material:Housing and push button stainless steel.Version:Housing and push button bright.Note:Mounting option for plate thickness 3 - 12 mm.
Use a hard material such as stainless steel for the baseplate.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.Type of operation:Screw the locking pin into the mounting plate until the thread can be seen on the other side.
Press the knob and pass the clamping pin through the hole in the premachined baseplate.

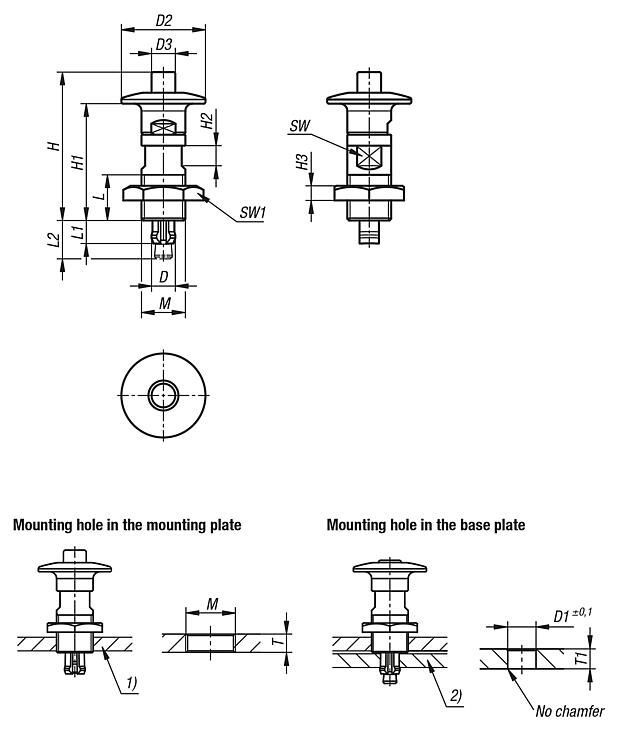

Screw the locking pin in the reverse direction till both plates come together, then secure with the locknut.Drawing reference:1) Mounting plate
2) Base plate DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D
| D1 | D2 | D3 | H | H1 | H2 | H3 | L | L1 | L2 | M | SW | SW1 | T | T1 | Temperature
resistance

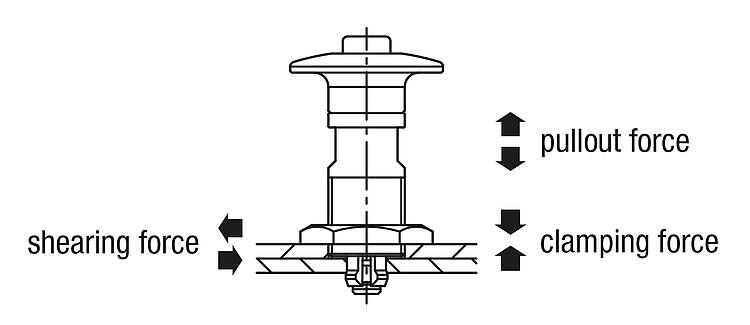

| Holding
force
N | Shearing force
kN | Pullout force F
kN | Clamping
force
N | CAD | Acc. | Price | Order |
|---|
| 03192-30-173 | 6,5 | 6,5 | 23 | 6,5 | 40 | 32 | 5,5 | 4 | 12,5 | 6,5 | 10,5 | M12x1 | 10 | 19 | 3-8 | 3 | ≤180 °C | 30 | 0,2 | 0,15 | 3 |  | | on request | | | 03192-30-176 | 6,5 | 6,5 | 23 | 6,5 | 37 | 29 | 5,5 | 4 | 12,5 | 9,5 | 13,5 | M12x1 | 10 | 19 | 3-8 | 6 | ≤180 °C | 30 | 0,2 | 0,15 | 3 | | | on request | | | 03192-30-193 | 8,5 | 8,5 | 32 | 10 | 51 | 41,5 | 7 | 4 | 16,5 | 6,5 | 11 | M16X1 | 14 | 24 | 3-12 | 3 | ≤180 °C | 60 | 0,4 | 0,3 | 6 | | | on request | | | 03192-30-196 | 8,5 | 8,5 | 32 | 10 | 48 | 38,5 | 7 | 4 | 16,5 | 9,5 | 14 | M16X1 | 14 | 24 | 3-12 | 6 | ≤180 °C | 60 | 0,4 | 0,3 | 6 | | | on request | |
