        Locating bushes, stainless steel with status sensor

Item description/product images

Show/filter all items

DescriptionProduct description:Locating bushes form a locating point for ball lock pins or locking pins and enable these to be securely and precisely engaged herein.

The locating bushes with status sensor have a variably adjustable sensor integrated in the bush. These enable electronic feedback as to whether a pin is located in the locating bush or not.
When using several bushes, it can be determined in which one a ball lock pin or locking pin is located.Material:

Locating bush steel or stainless steel 1.4305.
Sensor stainless steel.
Locknut brass.

Version:Locating bush and sensor bright.
Locknut nickel-plated.Note:The status sensor and locknut are supplied loose.
Max. tightening torque for the locknut: 1.2 Nm.Technical data:Inductive sensor:
Output circuit: PNP NO
Operating voltage: 10 - 30 V DC
Operating current: <100 mA
Contact gap: 1 mm
Switch frequency: <3500 Hz
Short-circuit proof: yes
Reverse polarity protection: yes
Rating: IP 67
Connection type: 2 m PVC cable
Temperature range: -25 °C - +70 °C
Approvals: CE, c UL us, EACApplication:Locating bushes in conjunction with a status sensor enable actuation-dependent process control. In addition, it can be determined whether a ball lock pin or locking pin is in the desired position.Assembly:The sensor is fastened into the bush using the locknut and then adjusted axially. The locknut is tightened to fixate the sensor in the final position.

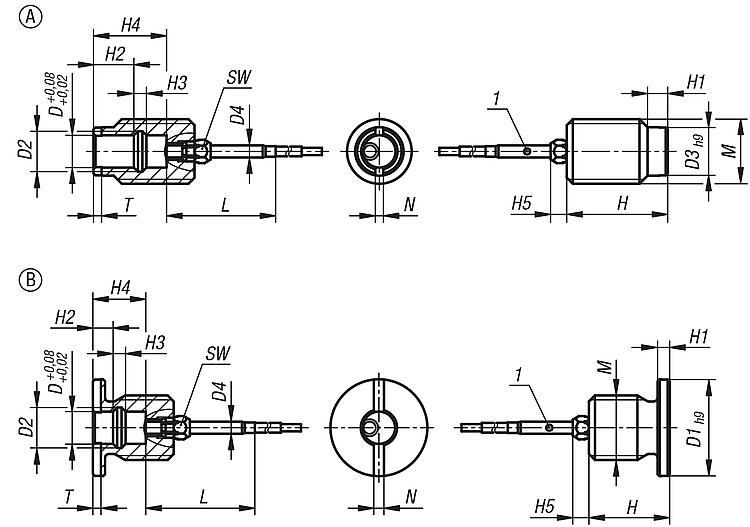

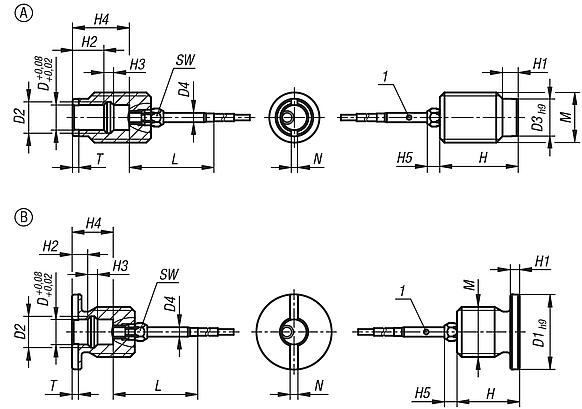

The detailed procedure is described in the installation instructions.Safety:Locating bushes with status sensor are not suitable for personnel safety functions.Drawing reference:

Form A: full thread
Form B: with thread and collar

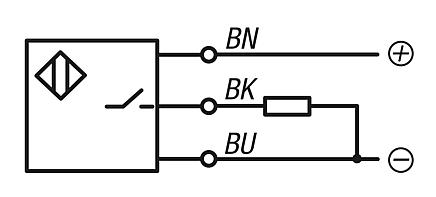

1) LED

BN = brown
BK = black
BU = blue

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03197-15 Locating bushes, stainless steel with status sensor

459 kB

Drawings (total overview)

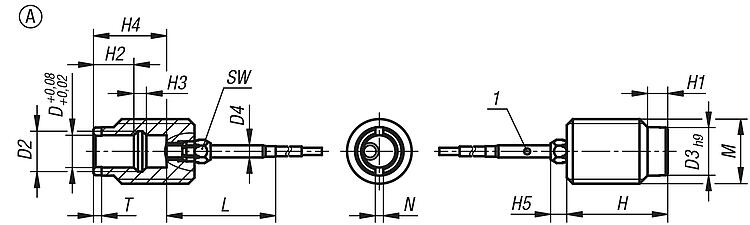

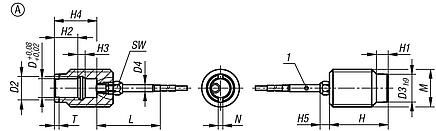

Locating bushes, stainless steel with status sensor, Form A, full thread

More information

Drawings

Locating bushes, stainless steel with status sensor, Form A, full thread

Item selection/filter

Order No.	Form	Form definition	D	D2	D3	D4	H	H1	H2	H3	H4	H5	L	M	N	T	SW	Price
03197-15-11051201	A	Full thread	5	6	9	3	25	4	10	1,5	16,2	4	27	M12	1,5	1,5	5	on request
03197-15-11061601	A	Full thread	6	7,5	12	3	25	5	10	2	17,1	4	27	M16	2	2	5	on request
03197-15-11081601	A	Full thread	8	10	12	3	25	5	10	3,1	18,1	4	27	M16	2	2	5	on request
03197-15-11102401	A	Full thread	10	13	18	3	30	6	8	4	17,2	4	27	M24	2,5	3	5	on request
03197-15-11122401	A	Full thread	12	15	18	3	30	6	8	4,8	18,2	4	27	M24	2,5	3	5	on request
03197-15-11163001	A	Full thread	16	20	24	3	35	8	11	6	24,2	4	27	M30	2,5	3	5	on request

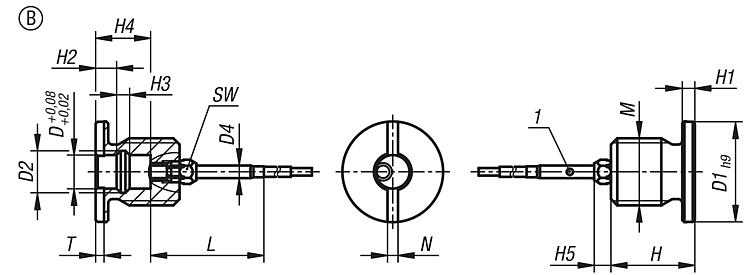

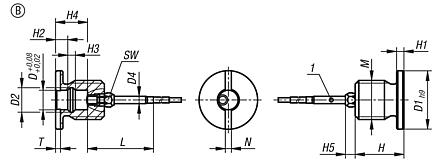

Locating bushes, stainless steel with status sensor, Form B, with thread and collar

More information

Drawings

Locating bushes, stainless steel with status sensor, Form B, with thread and collar

Item selection/filter

Order No.	Form	Form definition	D	D1	D2	D4	H	H1	H2	H3	H4	H5	L	M	N	T	SW	Price
03197-15-12051201	B	with thread and collar	5	20	6	3	20	3	5	1,5	11,2	4	27	M12	2	2	5	on request
03197-15-12061601	B	with thread and collar	6	24	7,5	3	20	3	5	2	12,1	4	27	M16	2,5	2	5	on request
03197-15-12081601	B	with thread and collar	8	24	10	3	20	3	5	3,1	13,1	4	27	M16	2,5	2	5	on request
03197-15-12102401	B	with thread and collar	10	34	13	3	25	5	10	4	19,2	4	27	M24	2,5	3	5	on request
03197-15-12122401	B	with thread and collar	12	34	15	3	25	5	10	4,8	20,2	4	27	M24	2,5	3	5	on request
03197-15-12163001	B	with thread and collar	16	40	20	3	30	5	10	6	23,2	4	27	M30	2,5	3	5	on request
