07695-01Ring bolts, stainless steel, revolving high-strength |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Ring stainless steel 1.4462.
Screw stainless steel 1.4462.Version:Ring is forged and high-strength tempered.
100% electromagnetic crack testing per EN 1677-1, 4x safety factor.Note:In contrast to DIN 580 ring bolts, the ring is pivot mounted, therefore the direction of force is adjustable and unintended under or over tightening is precluded.
- 4x safety factor
- Ring body 360° rotatable with tightened screw

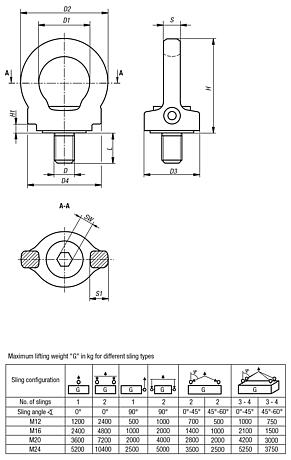

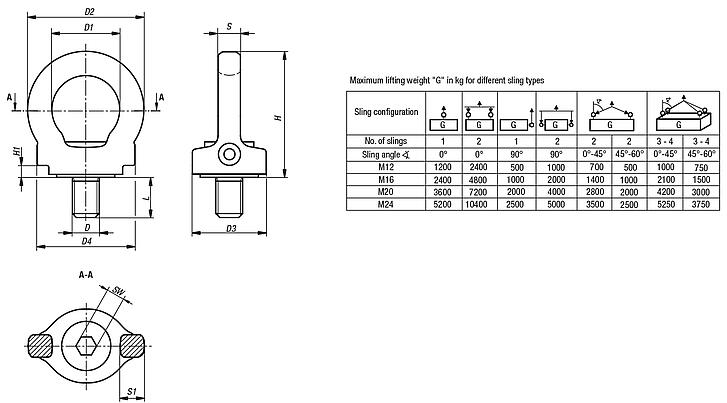

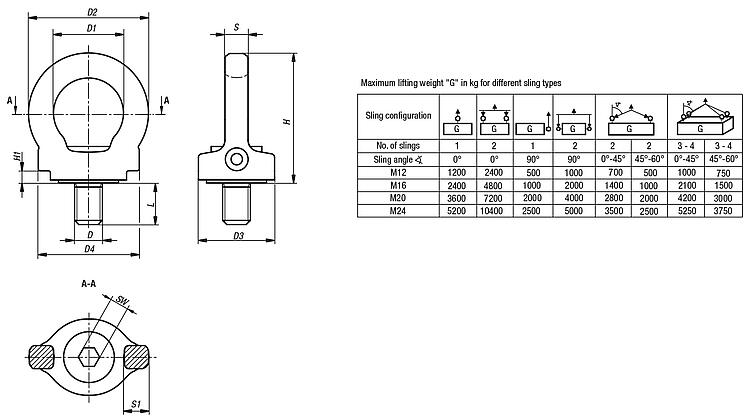

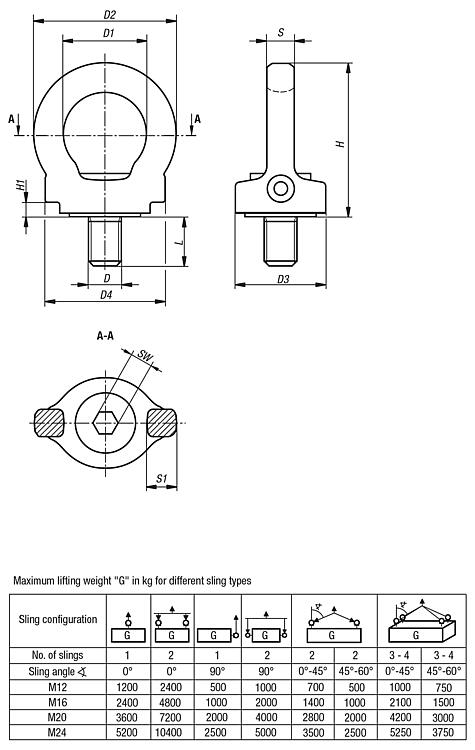

The nominal load capacity is visibly indicated on the ring bolt. This applies to the most unfavourable load rating (see table). The test load is 2.5 times the maximum permissible load. The specified WLL should not be exceeded.
With captive but removable hex socket screw bolt. The ring bolts are DGUV-approved.
The ring bolts contain a digital RFID chip with an embedded certificate for serial traceability.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
