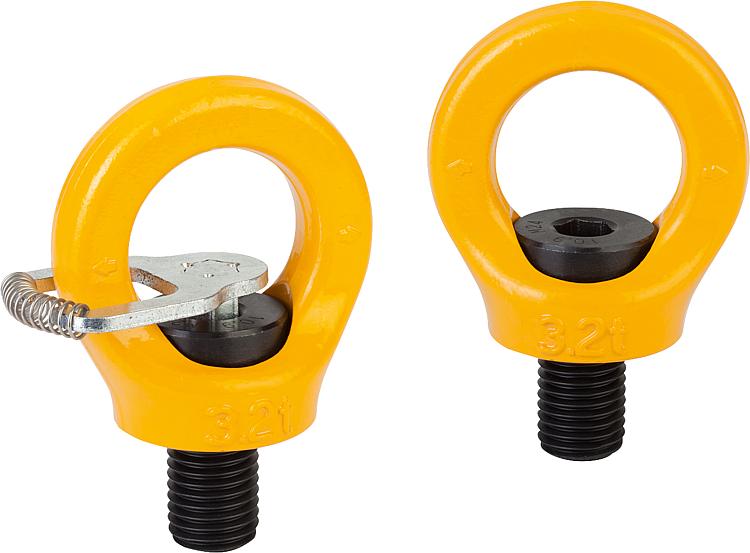

        Ring bolts rotatable high-strength grade 10

Item description/product images

DescriptionMaterial:Ring 1.6541 steel.
Screw steel.Version:Ring forged and high tensile tempered.
100% electromagnetic crack tested per EN 1677-1, 4x safety factor.
Plastic-coated.
Thread grade 10.9.Note:In contrast to DIN 580 ring bolts this ring bolt is rotatable, therefore the load direction is adjustable and unintended tightening or loosening is negated.

– 4x safety factor
– lateral loading up to 90° is possible
– ring can rotate 360° with tightened screw

The listed load values apply for a minimum screw length of 1x nominal thread diameter in steel with a minimum tensile strength of 363 N/mm², at an application temperature of -20 °C to +100 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07695 Ring bolts rotatable high-strength grade 10

209 kB

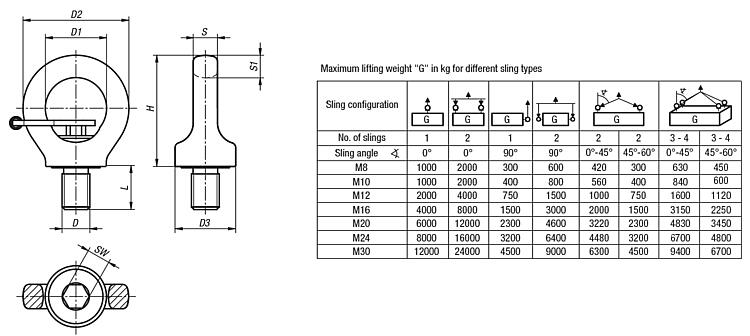

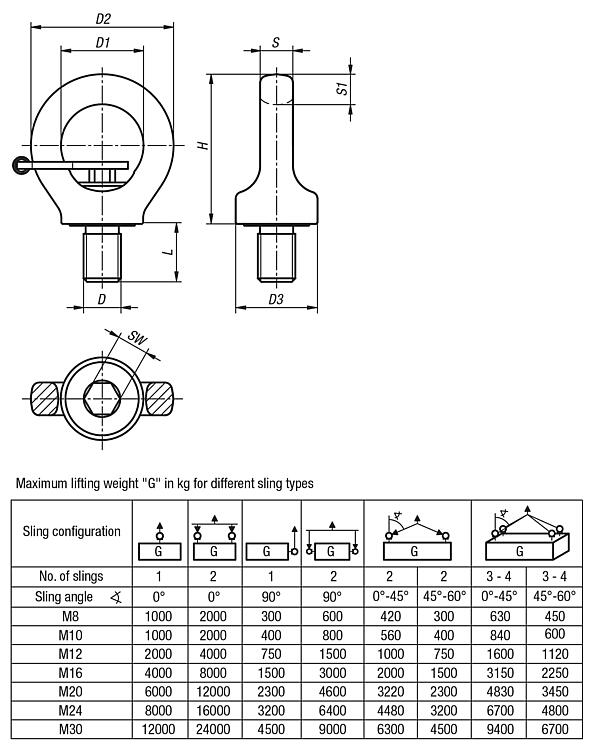

Drawings

Item selection/filter

Order No.	Version 2	D	D1	D2	D3	H	L	S	S1	SW	Permissible load kg	Price
07695-08151	with hex key	M8	25	44	25	47	12	9	9,5	6	300	on request
07695-10151	with hex key	M10	25	44	26	47	15	9	9,5	6	400	on request
07695-12181	with hex key	M12	30	52	34	55	18	11	11	8	750	on request
07695-16241	with hex key	M16	35	61	35	64	24	14	13	10	1500	on request
07695-20301	with hex key	M20	40	70	44	74	30	16	15	12	2300	on request
07695-24361	with hex key	M24	48	84	52	91	36	19	18	14	3200	on request
07695-30451	with hex key	M30	60	105	61	112	45	25	22,5	17	4500	on request
07695-08150	without hex key	M8	25	44	25	47	12	8	11	6	300	on request
07695-10150	without hex key	M10	25	44	25	47	15	8	11	6	400	on request
07695-12180	without hex key	M12	30	52	33	55	18	10	13	8	750	on request
07695-16240	without hex key	M16	35	61	35	64	24	14	13	10	1500	on request
07695-20300	without hex key	M20	40	70	44	74	30	16	17	12	2300	on request
07695-24360	without hex key	M24	48	84	52	91	36	19	21	14	3200	on request
07695-30450	without hex key	M30	60	108	62	112	45	27	26	17	4500	on request
