D-shackles

07716

D-shackles

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Ring bolts, Hoist rings, Swivel bales
        D-shackles

Item description/product images

DescriptionMaterial:Steel.Version:D formNote:Shackles and bolts may vary in colour.
Paint may cause the thread to be stiff.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07716 D-shackles

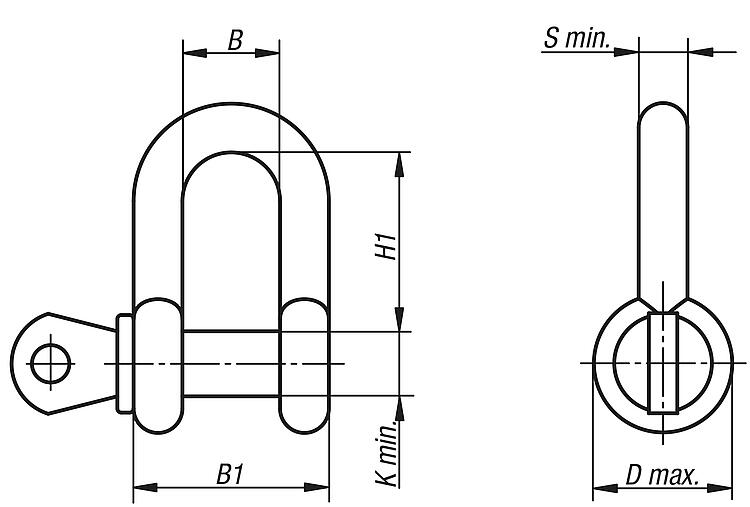

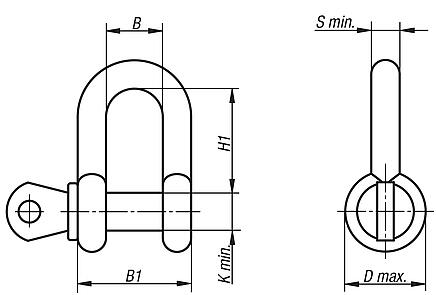

Drawings

D-shackles

Item selection/filter

Order No.	B	S	K	H1	Inches	Permissible load kg	CAD	Acc.	Price	Order
07716-0050008	12	6,7	8	24,6	1/4	500			on request
07716-0075010	13,5	7,9	9,5	27,2	5/16	750			on request
07716-0100011	16,8	9,6	11	32,5	3/8	1000			on request
07716-0150012	19	11,2	12,7	37,6	7/16	1500			on request
07716-0200016	20,6	12,7	16	40,7	1/2	2000			on request
07716-0325019	27	16	19	50	5/8	3250			on request
07716-0475022	31,8	19	22,2	59,5	3/4	4750			on request
07716-0650025	36,6	22	25,4	71	7/8	6500			on request
07716-0850028	43	25	28,5	80,5	1	8500			on request
