        Hoist rings 360° rotation grade 10

Item description/product images

DescriptionMaterial:Ring and attachment shackle steel.
Bolt and bushing steel.Version:Ring and shackle forged, hardened and tempered. 100% electromagnetic crack detection, plastic-coating yellow.
Bolt grade 10.9 or higher. 100% electromagnetic crack detection.

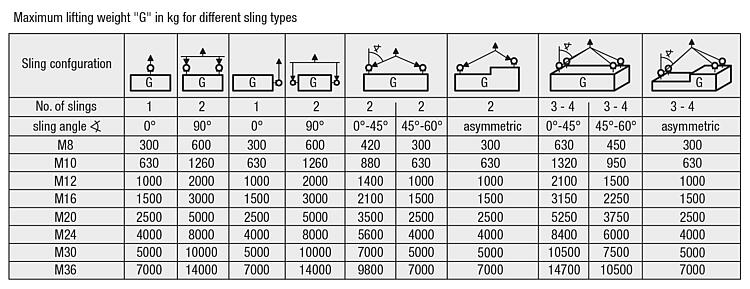

Bush electro zinc-plated.Note:These hoist rings have full swivel and pivot action and can take the full load from any direction. An integrated spring holds the ring in any position. The working load limit is specified on the hoist ring. This applies to the most unfavourable load rating (see table). The test load is 2.5 times the maximum permissible load. With captive but removable hexagon screw. The hoist rings corresponding to the Machinery Directive and are BG certified.Temperature range:from -40 °C to 100 °C = 100% permissible load
up to 200°C = 85% permissible load
up to 250°C = 80% permissible load
up to 350°C = 75% permissible load

The specified load values are valid for a minimum thread depth of 1.5x nominal thread diameter in steel with a minimum tensile strength of 363 N/mm².Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07725 Hoist rings 360° rotation grade 10

245 kB

Drawings

Item selection/filter

Order No.	D	D1	B	B1	B2	H	H1	L	S	SW	SW1	max. permissible load kg	Tightening torque Nm	Price
07725-08016	M8	24	35	55	30	85	35	11	10	6	13	300	30	on request
07725-10021	M10	24	35	55	30	85	36	16	10	6	17	630	60	on request
07725-12024	M12	31	37	57	33	98	44	18	13,5	8	19	1000	100	on request
07725-16029	M16	31	37	57	33	98	46	24	13,5	10	24	1500	150	on request
07725-20036	M20	45	54	82	50	140	57	34	16,5	12	30	2500	250	on request
07725-24041	M24	45	54	82	50	140	59	36	16,5	14	36	4000	400	on request
07725-30053	M30	59	65	99	60	170	81	48	22,5	17	46	5000	500	on request
07725-36060	M36	59	65	99	60	172	76	55	22,5	22	55	7000	700	on request
