        Ring bolts swivel and 360° rotatable, grade 8

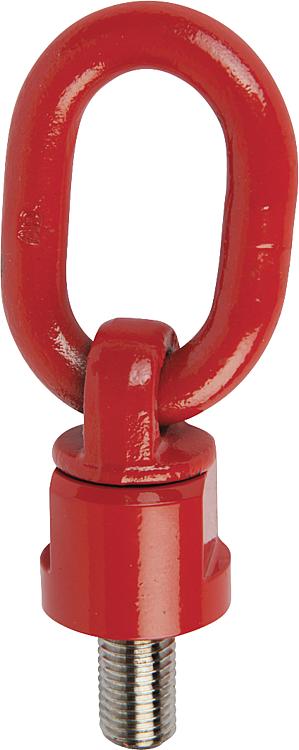

Item description/product images

DescriptionMaterial:Steel.Version:Quality class 8, ball bearing;
red plastic-coatedNote:Compact and light design, full loading on all sides. 4x safety factor against breakage in all loading axis. Rotatable 360°. Link swivel range max. 180°. The ball bearing allows the ring to rotate even under load.

Lifting or securing loads, swivel rings have many uses.

For the loading capacity to be valid it must be ensured that the ring is in line with the load. The swivel face must lie flat on the support beam and the screw must always be screwed in fully.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07710 Ring bolts swivel and 360° rotatable, grade 8

184 kB

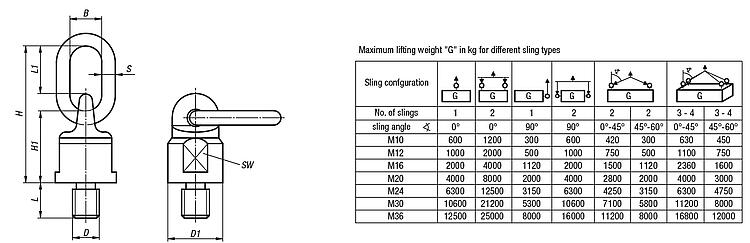

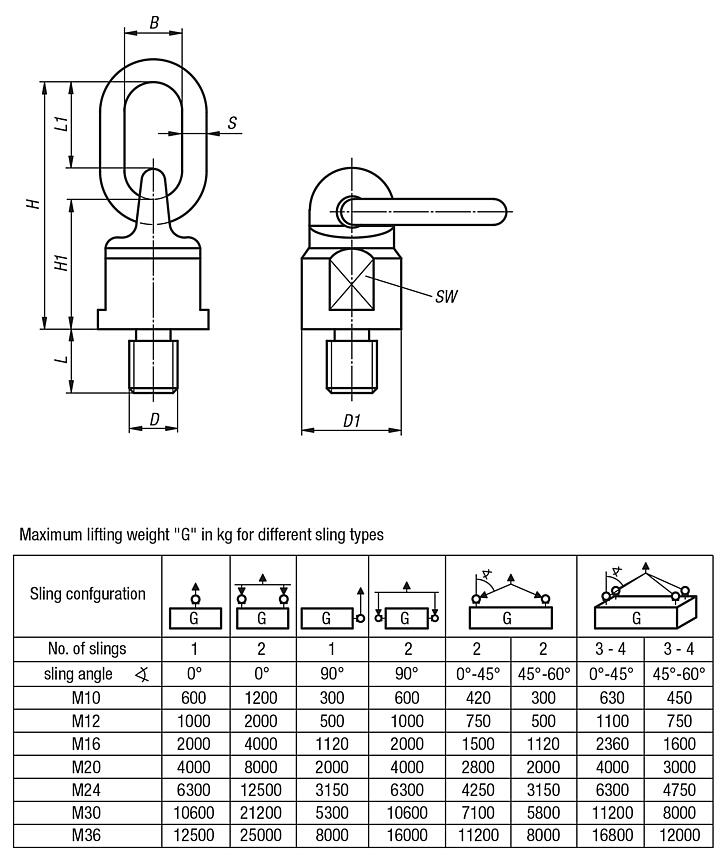

Drawings

Item selection/filter

Order No.	B	D	D1	H	H1	L	L1	S	SW	Permissible load kg	Price
07710-1018	30	M10	38	105	50	18	46	13	30	300	on request
07710-1218	30	M12	38	105	50	18	46	13	30	500	on request
07710-1620	30	M16	38	105	50	20	46	13	30	1120	on request
07710-2030	34	M20	50	131	61	30	57	16	40	2000	on request
07710-2430	40	M24	58	153	68	30	70	19	48	3150	on request
07710-3035	40	M30	75	165	80	35	65	20	65	5300	on request
07710-3654	50	M36	85	205	95	54	90	22	75	8000	on request
