        Ring nuts DIN 582

Item description/product images

DescriptionMaterial:

1.1141 steel, 1.4301 stainless steel or 1.4401 stainless steel.

Version:drop forged.Note:For high demand hoisting and carrying tasks in safety-relevant areas (machine construction, load handling equipment, lifting tackle).
The CE mark is impressed into the ring bolt.
F2 permissible load under max. 45° per ring bolt.On request:Certificate of conformity.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07690 Ring nuts DIN 582

271 kB

Overview of standards for fasteners

687 kB

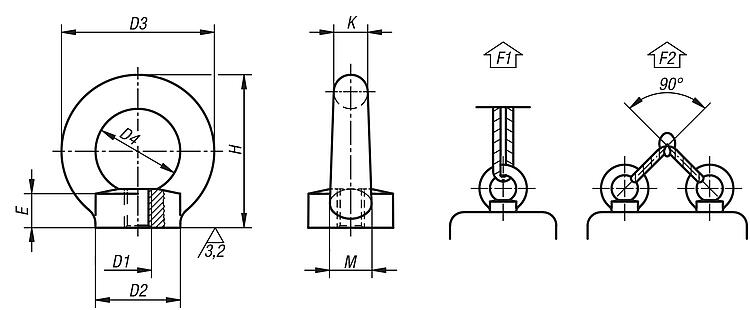

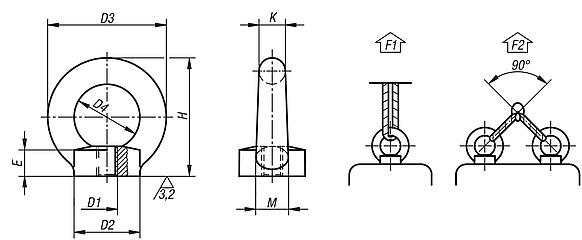

Drawings

Item selection/filter

Order No.	Main material	Surface finish body	Steel code	D1	D2	D3	D4	E	H	K	M	F1 max. kN	F2 max. kN	Price
07690-08	steel	bright	1.1141	M8	20	36	20	8,5	36	8	10	1,4	0,95	on request
07690-10	steel	bright	1.1141	M10	25	45	25	10	45	10	12	2,3	1,7	on request
07690-12	steel	bright	1.1141	M12	30	54	30	11	53	12	14	3,4	2,4	on request
07690-16	steel	bright	1.1141	M16	35	63	35	13	62	14	16	7	5	on request
07690-20	steel	bright	1.1141	M20	40	72	40	16	71	16	19	12	8,3	on request
07690-24	steel	bright	1.1141	M24	50	90	50	20	90	20	24	18	12,7	on request
07690-008	steel	galvanised	1.1141	M8	20	36	20	8,5	36	8	10	1,4	0,95	on request
07690-010	steel	galvanised	1.1141	M10	25	45	25	10	45	10	12	2,3	1,7	on request
07690-012	steel	galvanised	1.1141	M12	30	54	30	11	53	12	14	3,4	2,4	on request
07690-016	steel	galvanised	1.1141	M16	35	63	35	13	62	14	16	7	5	on request
07690-020	steel	galvanised	1.1141	M20	40	72	40	16	71	16	19	12	8,3	on request
07690-024	steel	galvanised	1.1141	M24	50	90	50	20	90	20	24	18	12,7	on request
07690-108	stainless steel	-	1.4301	M8	20	36	20	8,5	36	8	10	1,4	0,95	on request
07690-110	stainless steel	-	1.4301	M10	25	45	25	10	45	10	12	2,3	1,7	on request
07690-112	stainless steel	-	1.4301	M12	30	54	30	11	53	12	14	3,4	2,4	on request
07690-116	stainless steel	-	1.4301	M16	35	63	35	13	62	14	16	7	5	on request
07690-120	stainless steel	-	1.4301	M20	40	72	40	16	71	16	19	12	8,3	on request
07690-124	stainless steel	-	1.4301	M24	50	90	50	20	90	20	24	18	12,7	on request
07690-208	stainless steel	-	1.4401	M8	20	36	20	8,5	36	8	10	1,4	0,95	on request
07690-210	stainless steel	-	1.4401	M10	25	45	25	10	45	10	12	2,3	1,7	on request
07690-212	stainless steel	-	1.4401	M12	30	54	30	11	53	12	14	3,4	2,4	on request
07690-216	stainless steel	-	1.4401	M16	35	63	35	13	62	14	16	7	5	on request
07690-220	stainless steel	-	1.4401	M20	40	72	40	16	71	16	19	12	8,3	on request
07690-224	stainless steel	-	1.4401	M24	50	90	50	20	90	20	24	18	12,7	on request
